CST12N03M Description:
CST12N03M is a fast switching Mosfet for N-channel with BVDSS=30V, RDSON=10m Ω, and ID=12A. Provide DFN2020-6L packaging.
The CST12N03M is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST12N03M meet the RoHS and Green Product requirement with full function reliability approved.
CST12N03M Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST12N03M Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
30V |
10mΩ |
12A |

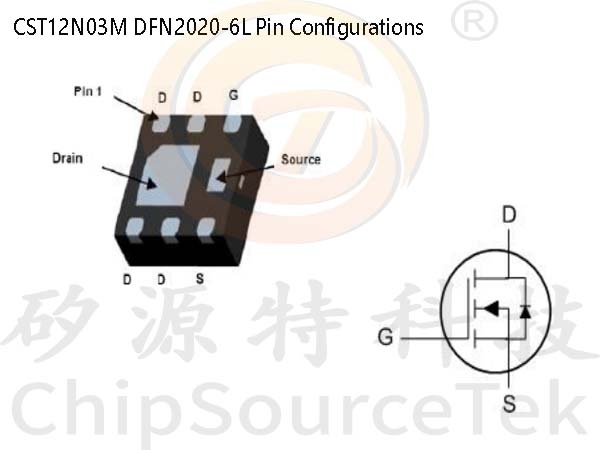

CST12N03M DFN2020-6L Pin Configurations:

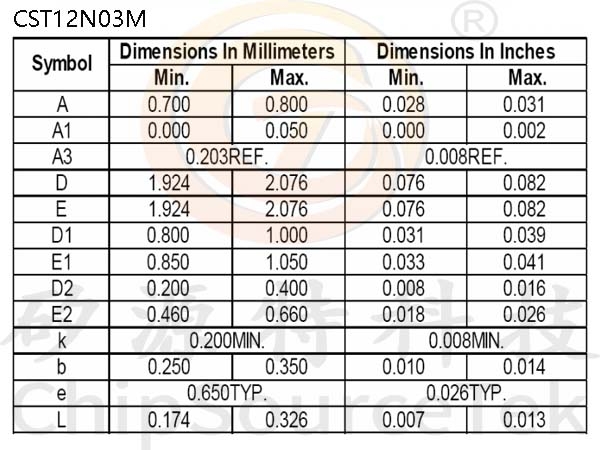

CST12N03M DFN2020-6L Package Information:
