CST2312AL Description:
CST2312AL is an N-Ch fast switching Mosfet with BVDSS=20V, RDSON=16m Ω, ID=7.5A. Provide SOT23-3L packaging.
The CST2312AL is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST2312AL meet the RoHS and Green Product requirement with full function reliability approved.
CST2312AL Features：
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST2312AL Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
20V |
16mΩ |
7.5A |

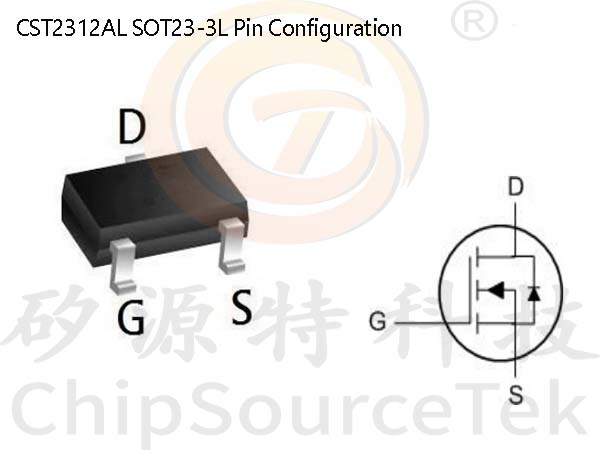

CST2312AL SOT23-3L Pin Configuration:

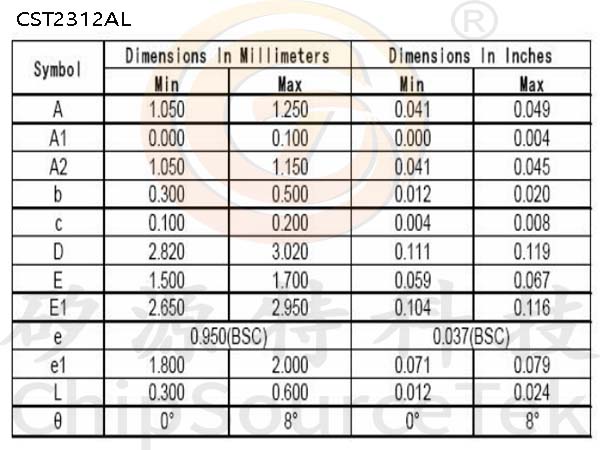

CST2312AL Package Mechanical Data-SOT-23-3L:
.jpg)
