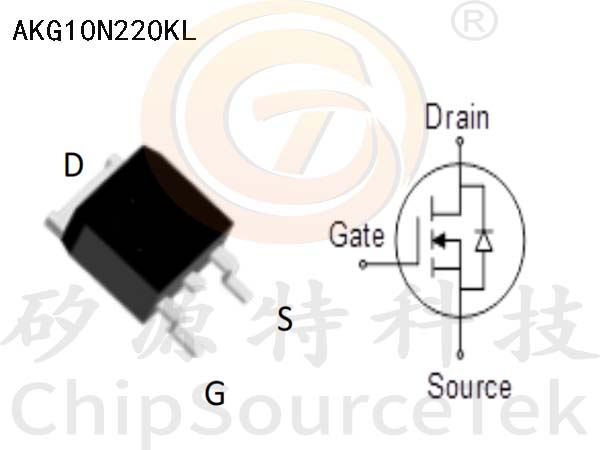

AKG10N220KL Description:
AKG10N220KL是VDS=100V，RDSON=22mΩ，ID=35A的N沟道SGT Mosfet提供252封装。
This N channel SGT MOSFET has been designed to very low on-state resistance and maintain superior switching performance, especial for high efficiency power management applications.
AKG10N220KL Features:
Low RDS(ON)
Ultra-low on-resistance
RoHS compliant (Note 1)
Halogen-free (Note 1)
AKG10N220KL Applications:
Battery Management System
Motor Drivers
DC-DC Converter
AKG10N220KL Key Performance Parameters:
|
Parameter
|
Value
|
Unit
|
|
VDS |
100 |
V |
|
RDSON,max@VGS=10V |
22 |
mΩ |
|
ID |
35 |
A |
AKG10N220KL Ordering Information:
|
Ordering Code
|
Package
|
Marking Code
|
Form
|
Packing
|
|
AKG10N220KL |
TO252 |
G10N220KL |
Tape Reel |
2500PCS |

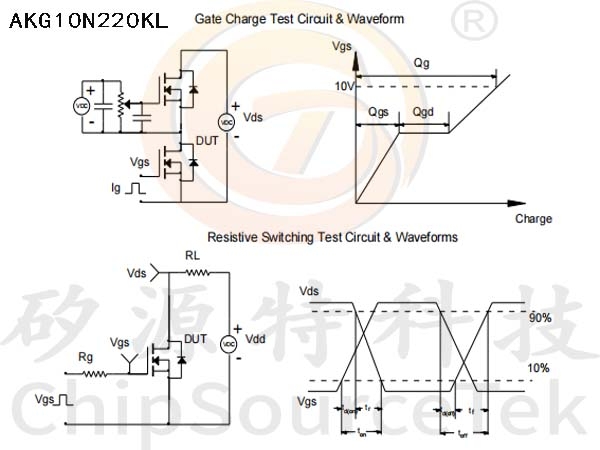

AKG10N220KL Test Circuit and Waveform:
