CST230N03C Description/描述:
CST230N03C是BVDSS=30V,RDSON=0.8mΩ,ID=230A的N沟道快速切换mosfets。提供PDFN5X6封装。
CST230N03C Features/特性:
Split Gate Trench MOSFET technology
Excellent package for heat dissipation
High density cell design for low RDS(ON)
CST230N03C Applications/应用：
DC-DC Converters
Power management functions
Synchronous-rectification applications
CST230N03C Product Summary/产品概览：
|
BVDSS
|
RDSON
|
ID
|
|
30V |
0.8mΩ |
230A |

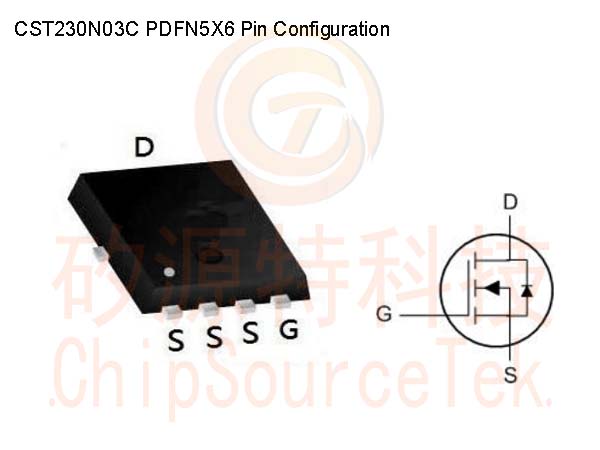

CST230N03C PDFN5X6 Pin Configuration/引脚配置：

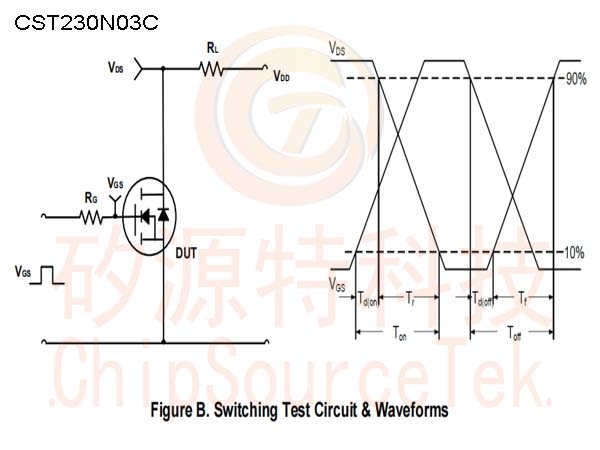

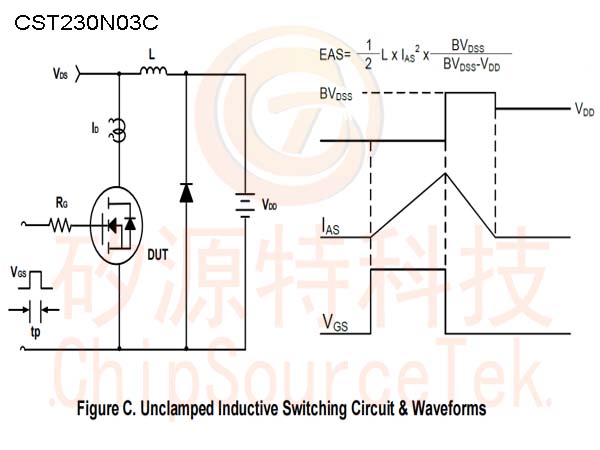

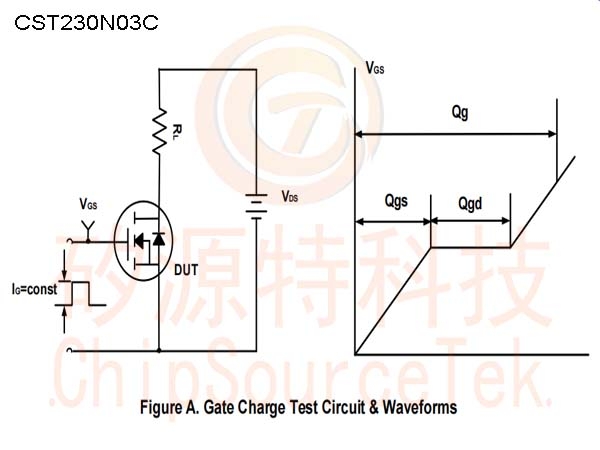

CST230N03C Test Circuit/测试电路：
