MX6010 Description/描述:
MX6010是VDS=60V, ID=10A,RDS(ON)(Typ.)=15mΩ@VGS=10V,RDS(ON)(Typ.)=18mΩ@VGS=4.5V的N沟道增强模式电源Mosfet。
The MX6010 is the high cell density trench N-Channel MOSFETs, which provide excellent
RDS(ON) and gate charge for most of the synchronous buck converter applications.
MX6010 Features/特性:
VDS=60V, ID=10A
RDS(ON)(Typ.)=15mΩ@VGS=10V
RDS(ON)(Typ.)=18mΩ@VGS=4.5V
Reliable and Rugged
Lead Free and Green Devices Available (RoHS Compliant)
MX6010 Applications/应用：
SMPS Synchronous Rectification
DC-DC Conversion
Load Switch

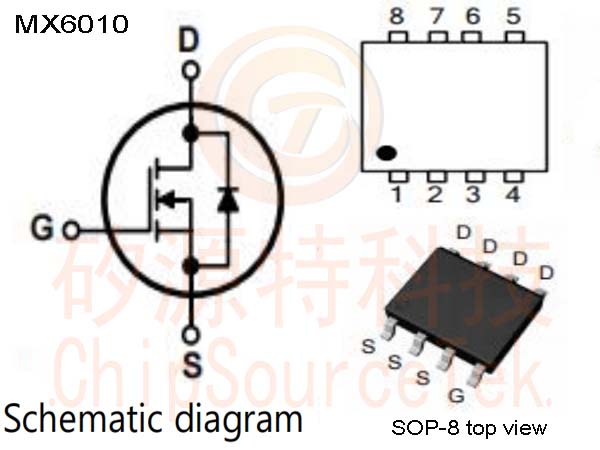

MX6010 Pinout/引脚：
MX6010 Ordering Information/订购信息:
MX6010 Ordering Information/订购信息:
|
Part Number
|
StorageTemperature
|
Package
|
Devices Per Reel
|
|
MX6010
|
-55°C to 150°C
|
SOP-8
|
-
|

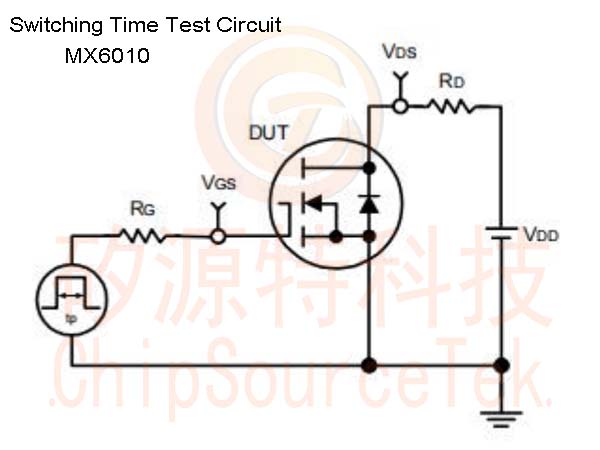

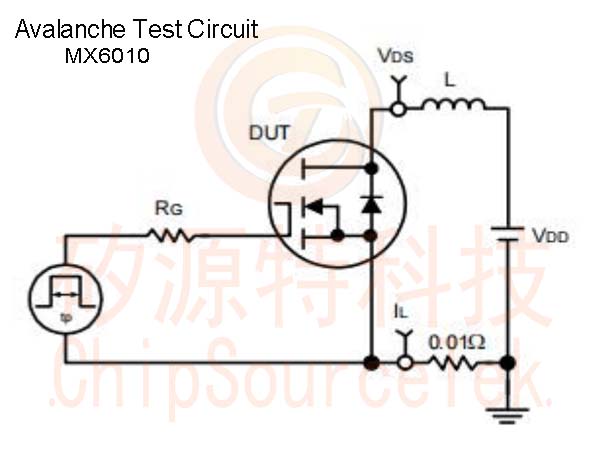

MX6010 Test Circuit/测试电路：
