MOT9N50C/MOT9N50D Description/概述：

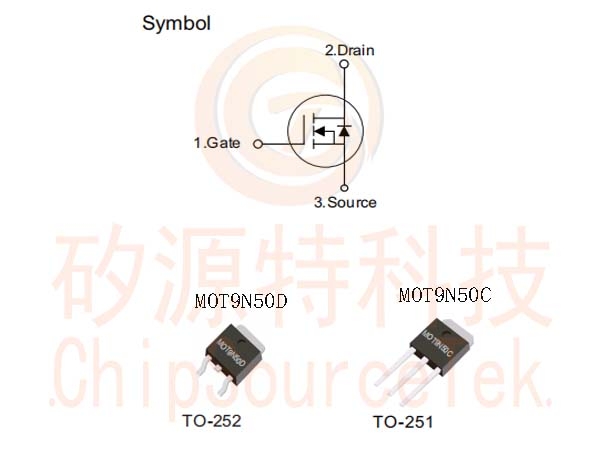

MOT9N50C-MOT9N50D is an N-channel Mosfet with VDSS=500V, ID=9A, RDS (on) max (@ VGS=10V). Provide TO-252 and TO-251 packaging.
MOT9N50C/MOT9N50D Features/特性：
RDS(ON) < 0.72Ω @ VGS =10V
Fast Switching Capability
Avalanche Energy Specified
Improved dv/dt Capability, High Ruggedness
MOT9N50C/MOT9N50D Applications/应用：
High frequency switching mode power supply
Electronic ballast
LED power supply
MOT9N50C/MOT9N50D Product Characteristics：
|
VDSS |
500V |
| RDS(on)max(@VGS |
0.72Ω |
|
Qg@type |
35nC |
|
ID |
9A |
|
Order codes
|
Package
|
Packing
|
|
|
Halogen-Free
|
Halogen
|
||
|
N/A |
MOT9N50D |
TO-252 |
2500 pieces/Reel |
|
N/A |
MOT9N50C |
TO-251 |
70 pieces/Tube |

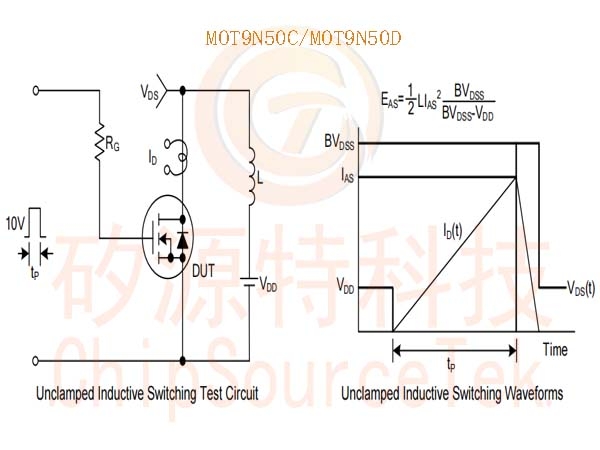

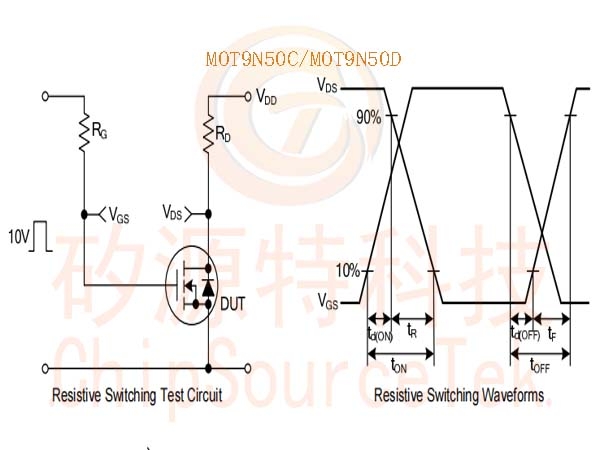

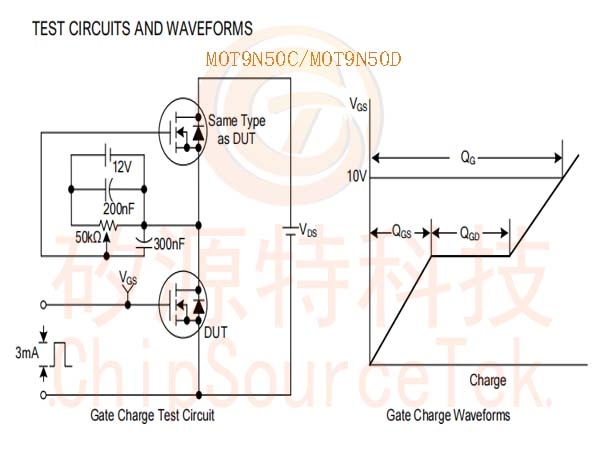

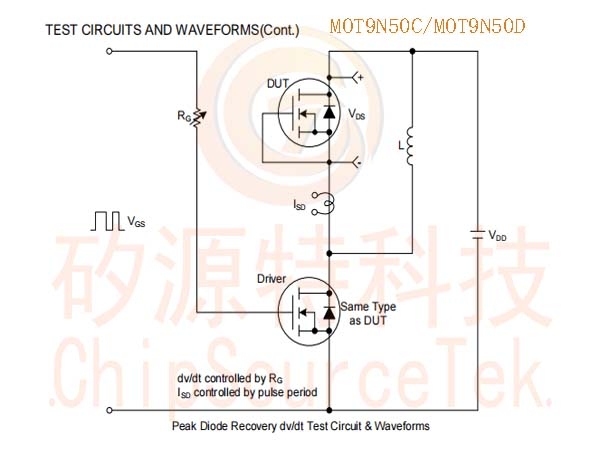

MOT9N50C/MOT9N50D Test Circuits And Waveforms(Cont.)
