S-N-MOS

CST5N50 TO252

    CST5N50是BVDSS=500V,ID=5A,RDSON=1.45mΩ的N沟道快速切换Mosfet。提供TO252封装。
    The CST5N50 is the Advanced VD N-ch MOSFETS,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
    The CST5N50 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
    CST5N50 Description/概述:
        CST5N50是BVDSS=500V,ID=5A,RDSON=1.45mΩ的N沟道快速切换Mosfet。提供TO252封装。
        The CST5N50 is the Advanced VD N-ch MOSFETS,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
        The CST5N50 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.

    CST5N50 Features/特性:
    100% EAS Guaranteed
    Green Device Available
    Excellent CdV/dt effect decline
    Advanced VD MOSFETS

    CST5N50 Product Summary:

    BVDSS

    RDSON

    ID

    500V

    1.45mΩ

    5A

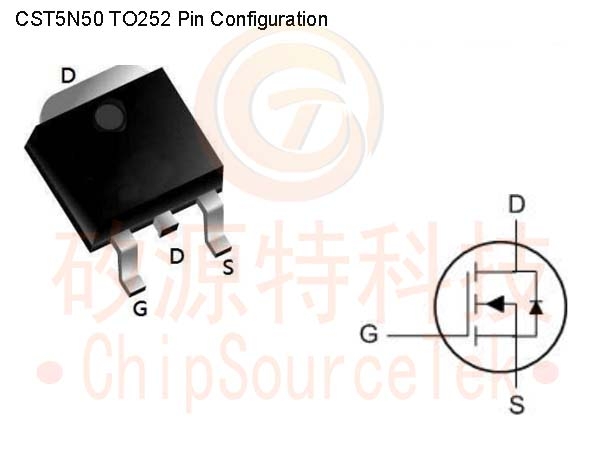

    CST5N50 TO252 Pin Configuration:

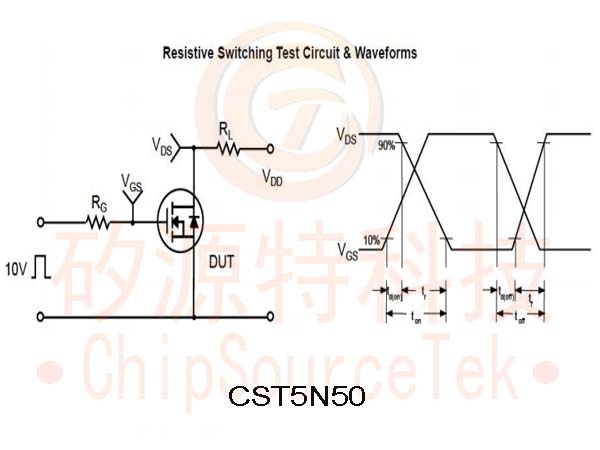

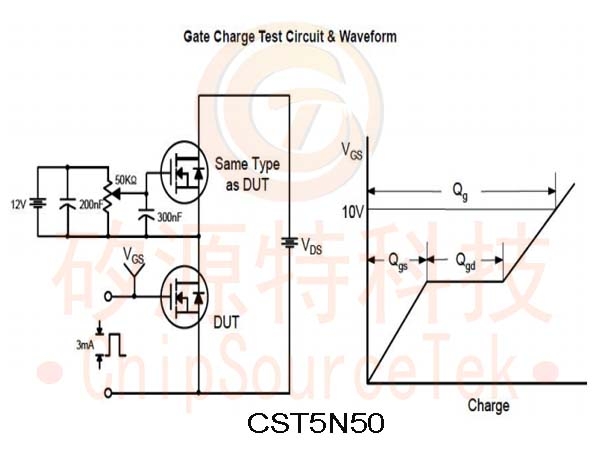

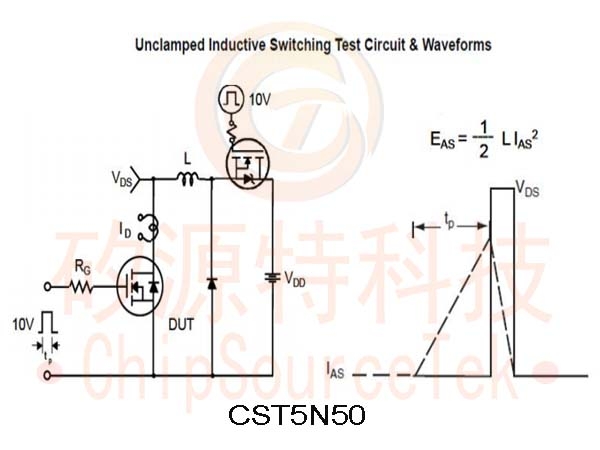

    CST5N50 Typical Characteristics:
