MOT5N10A3 Description/概述：
MOT5N10A3 is VDS=100V, ID=5A, RDS (on) max (VGS @=10V)=130m Ω; RDS (on) max (VGS @=4.5V)=180m Ω N-channel Mosfet. Provide SOT23-3L packaging.
MOT5N10A3 Features/特性：
High dense cell design for extremely low RDS(ON)
Exceptional on-resistance and maximum DC current capability
MOT5N10A3 Applications/应用：
Load/Power Switching
Interfacing Switching

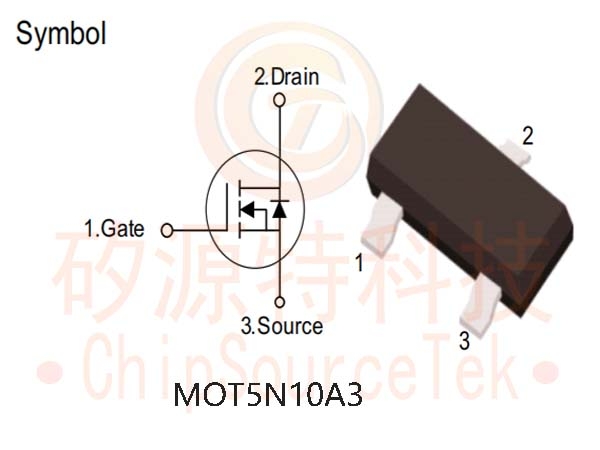

MOT5N10A3 Package/封装：
MOT5N10A3 Order Information/订购信息：
|
Order codes
|
Package
|
Packing
|
|
|
Hagen-Free
|
Halogen
|
|
|
|
N/A
|
MOT5N10A3
|
SOT-23-3L
|
3000 pieces/Real
|

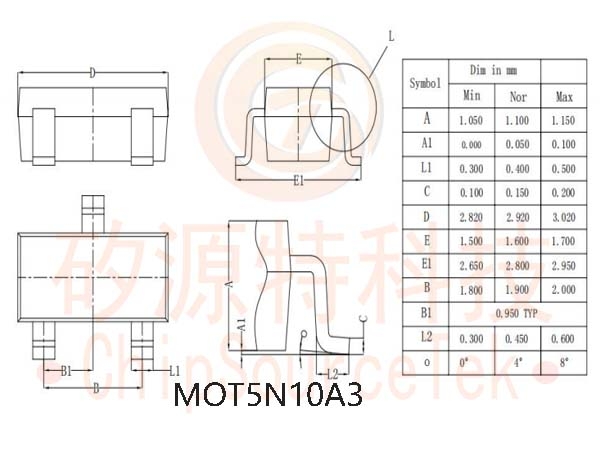

MOT5N10A3 Package outline dimensions/包装外形尺寸：
