MOT120N03D/C Description/概述：
MOT120N03D/C is an N-channel MOSFET with VDS=30V, ID=120A, RDS (on) Typ (@ VGS=10V). Provide TO-252 and TO-251 packaging.
MOT120N03D/C Features/特性：
High density cell design gor ultra low Rdson
Excellent package for good heat DISSIPATION
MOT120N03D/C Applications/应用：
Power switching application
Hard switched and high frequency circuits
Uninterruptible power supply

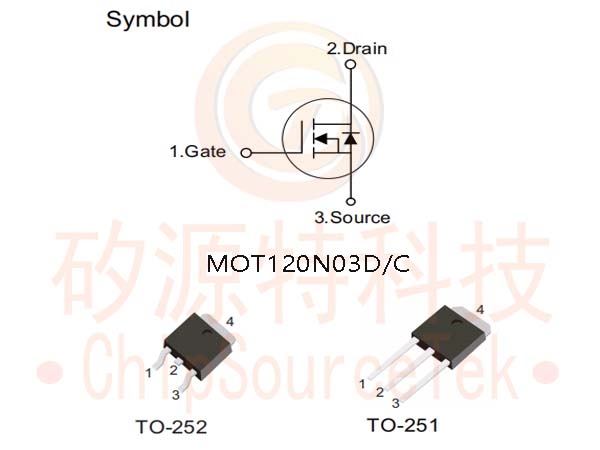

MOT120N03D/C Package/封装：
MOT120N03D/C Order Information/订购信息：
|
Order codes
|
Package
|
Packing
|
|
|
Halogen-Free
|
Halogen
|
|
|
|
N/A
|
MOT120N03D
|
TO-252
|
2500 pieces/Reel
|
|
N/A
|
MOT120N03C
|
TO-251
|
70 pieces /Tube
|

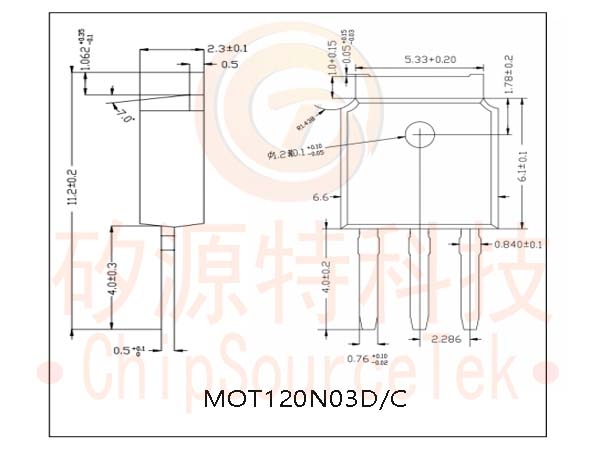

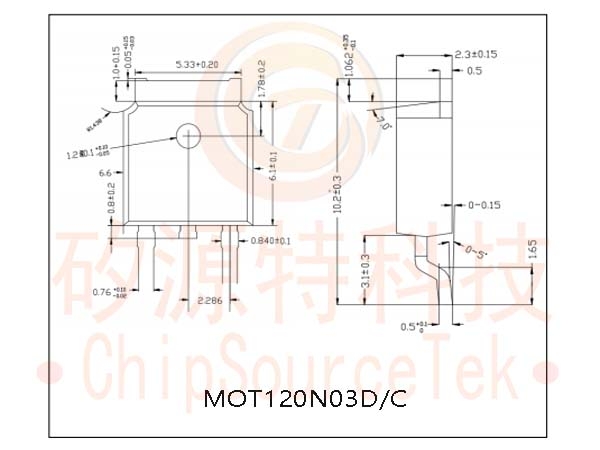

MOT120N03D/C Package outline dimensions/包装外形尺寸：
