CST120N03 Description/概述：
CST120N03是VDS=30V,,ID=120A，RDSON=3.0mΩ的N沟道Mosfets，提供TO252封装。
The CST120N03 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST120N03 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST120N03 Features/特性：
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST120N03 Product Summary/产品概览:
|
BVDSS
|
RDSON
|
ID
|
|
30V
|
3.0mΩ
|
120A
|

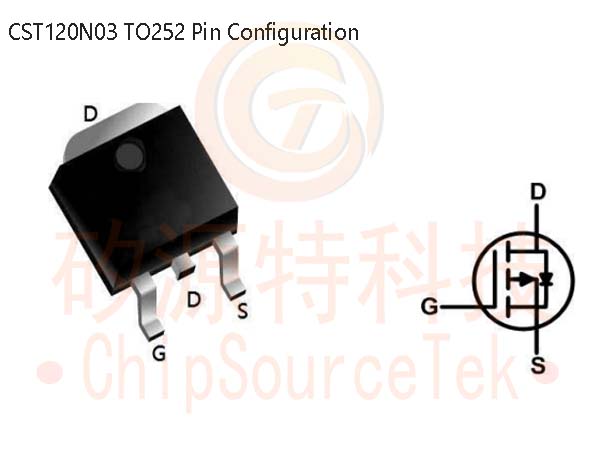

CST120N03 Pin Configuration/引脚配置:

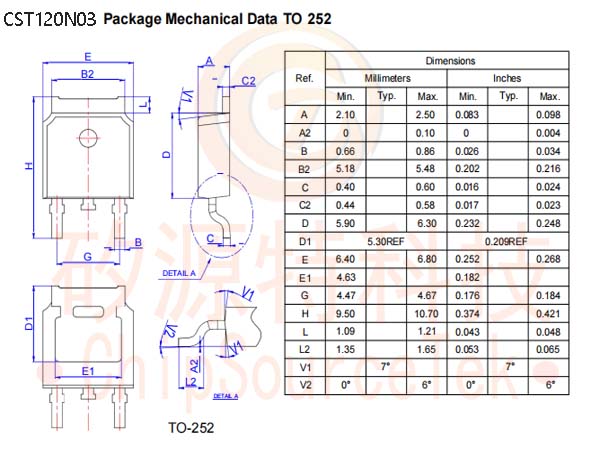

CST120N03 Package information/封装信息：
