CST9926A Description:
The 9926 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications.
CST9926A General Features:
VDS =20V,ID =6A
RDS(ON) < 32mΩ @ VGS=4.5V
RDS(ON) < 42mΩ @ VGS=2.5V
RDS(ON) < 42mΩ @ VGS=2.5V
High density cell design for ultra low Rdson
Fully characterized avalanche voltage and current
CST9926A Package Marking and Ordering Information:

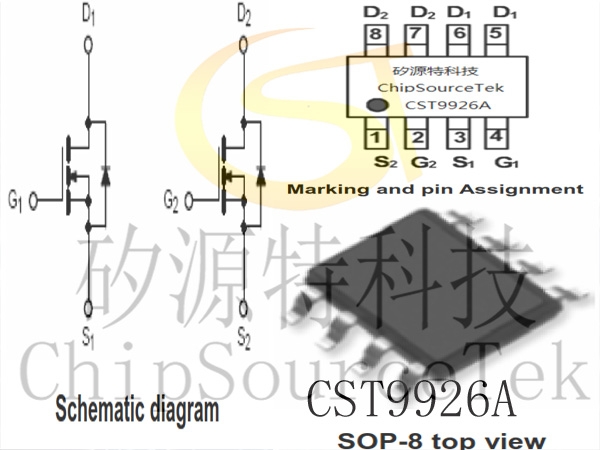

CST9926A Schematic diagram,Marking and pin Assignment,SOP-8 top view:
|
Device Marking |
Device |
Device Package |
Size |
Tape width |
Quantity |
|
9926/ |
9926/ |
SOP-8 |
Ø |
|
2500 units |
CST9926A Schematic diagram,Marking and pin Assignment,SOP-8 top view:
