CST4616 General Description:
CST4616 is N-Ch: BVDSS=30V, RDSON=18mΩ, ID=7A; P-Ch: BVDSS=-30V, RDSON=26mΩ, ID=-6A, N+P dual channel fast switching Mosfet.Provide SOP8 packaging.
The CST4616 is the highest performance trenchN-ch and P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
The CST4616 meet the RoHS and Green Product requirement , 100% EAS guaranteedwith full function reliability approved.
CST4616 Features:
Advanced high cell density Trench technology
Super Low G ate Charge
Excellent CdV/dt effect decline
100% EAS Guaranteed
Green Device Available
CST4616 Applications:
Power management in half bridge and inverters
DC-DC Converter
Load Switch
CST4616 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
30V |
18mΩ |
7A |
|
-30V
|
26mΩ |
-6A
|

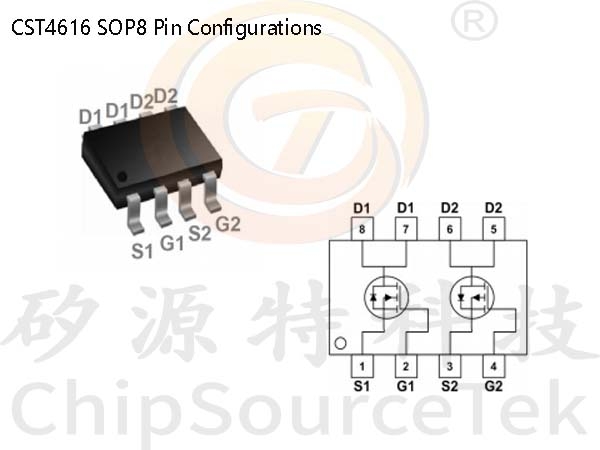

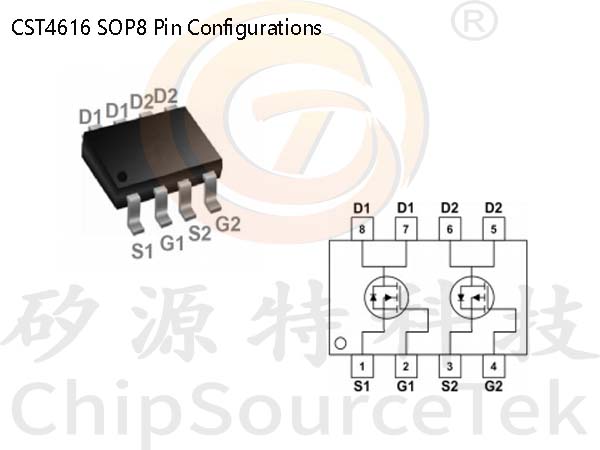

CST4616 SOP8 Pin Configurations:

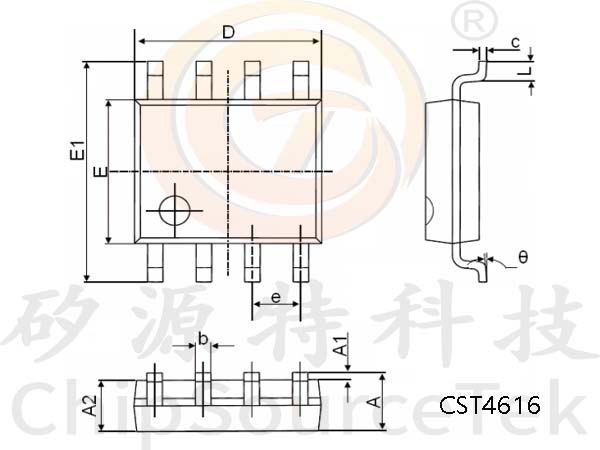

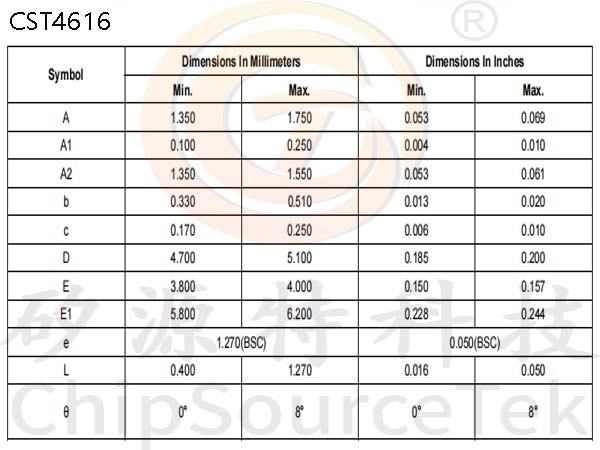

CST4616 Package Mechanical Data-SOP-8:
