CST4012 Description:
CST4012是N-Ch:BVDSS=40V,RDSON=17mΩ,ID=25A;P-Ch:BVDSS=-40V,RDSON=32mΩ,ID=-25A的N+P双沟道快速切换Mosfets。提供TO252-4L封装。
The CST4012 is the high performance complementary N-ch and P-ch MOSFETs with high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST4012 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
CST4012 Features:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST4012 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
40V |
17mΩ |
25A |
|
-40V |
32mΩ |
-25A |
CST4012 TO252-4L Pin Configurati on:

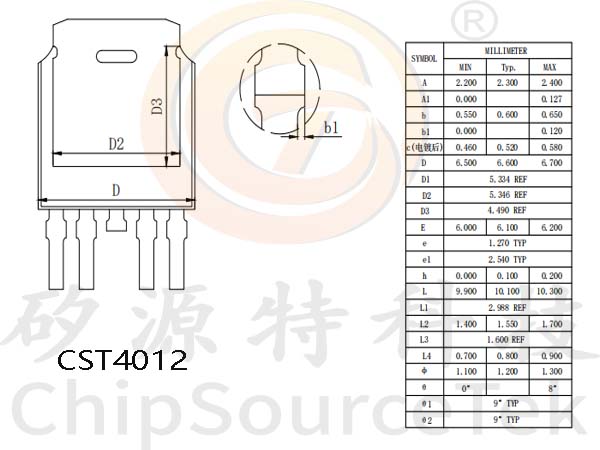

CST4012 Mechanical Dimensions for TO-252-4L
