TC7258 Overview:
TC7258 is an 8-channel hidden control driver IC designed specifically for LED screen line scanning screens. It integrates a line hidden circuit, a 74HC138 three eight decoder, and a power transistor internally.
When the power tube of TC7258 is turned off, the internal pull-down tube will open and absorb residual charges on the line with a constant current, which can eliminate dragging phenomenon and improve caterpillar phenomenon caused by LED leakage and short circuit.
TC7258‘s unique patented technology can completely eliminate ghosting, making it the chip with the best LED screen scanning display effect on the market.
TC7258 adopts the packaging form of SOP-16 and integrates an anti burn power transistor inside.
TC7258 Product features:
* Integrated 138 decoder.
* Integrate 8 power transistors, with a conduction impedance of 110 milliohms and a working current of 2.5A.
* Integrated anti burn power tube with overcurrent and short-circuit protection.
* Can eliminate the dragging phenomenon on the LED.
* Improve the caterpillar phenomenon caused by LED leakage and short circuits.
* Adopting SOP-16 packaging.
TC7258 Application area :
* Used for display screens below 32 scans

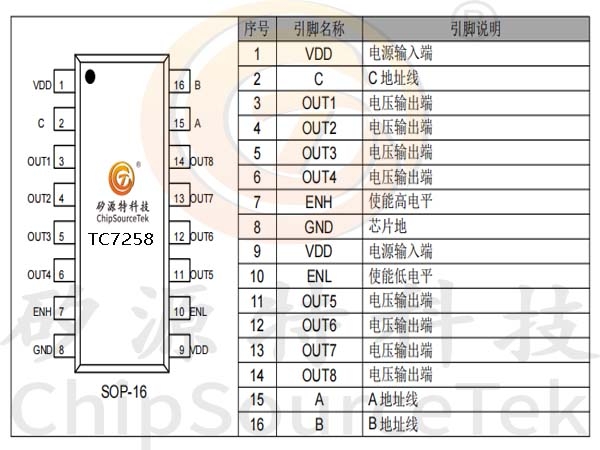

TC7258 Pin definition and description:

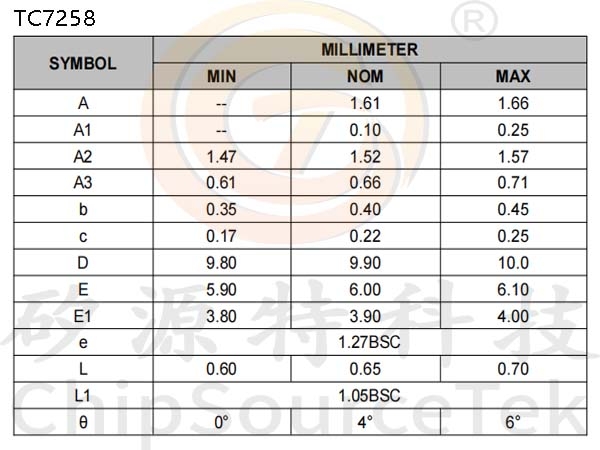

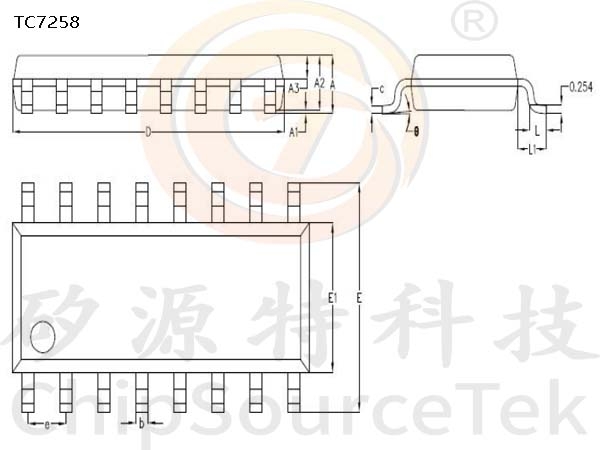

TC7258 Encapsulation information:
