The TX2304 Series is a Synchronous step-up DC/DC Converter with PFM Control.With the TX2304 Series, a step-up switching DC/DC converter can be configured by using an external coil 、 capacitor. The built-in MOSFET is turned off by a protection circuit when the voltage at the LX pin exceeds the limit to prevent it from being damaged.

    TX2304系列是一个同步加速直流/直流转换器与PFM控制。与TX2304系列，可以配置一个升压开关直流/直流转换器，通过使用一个外部线圈、电容器。当LX引脚处的电压超过极限时，内置的MOSFET会被一个保护电路关闭，以防止其被损坏。

TX2304 Features/特性：

External parts: Coil, capacitor

Output voltage: Settable to between 2.1V to 5.0V in 0.1V steps

Maximum Oscillation frequency :300KHz

Accuracy of ±2%

High efficiency :95%

Package: SOT23, SOT23-3, SOT23-5,SOT89 and DFN1*1

TX2304 Applications/应用：

Digital cameras

Electronic notebooks and PDAS

Portable CD/MD players

Cameras, video equipment

Communications equipment

Power supply for microcomputers

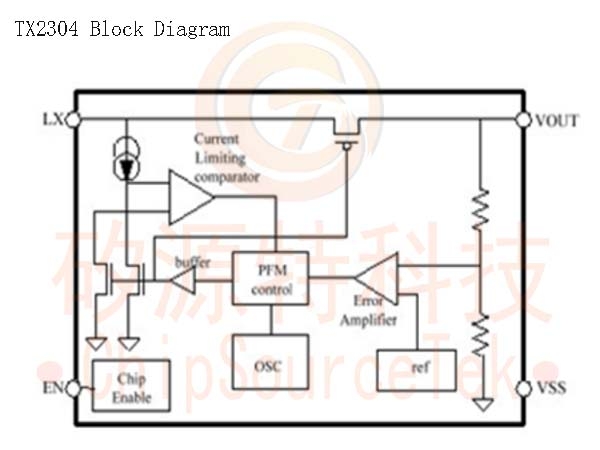

TX2304 Block Diagram：

TX2304 Order Information：

Designator	Symbol	Description
① ②	Integer	Output Voltage (2.1~5.0) e.g:3.0V=②：3；③：0
③	N	Package: SOT23
	M	Package: SOT23-3
	M5	Package: SOT23-5
	P	Package: SOT89
	FC	Package: DFN1*1
④	G	Halogen Free

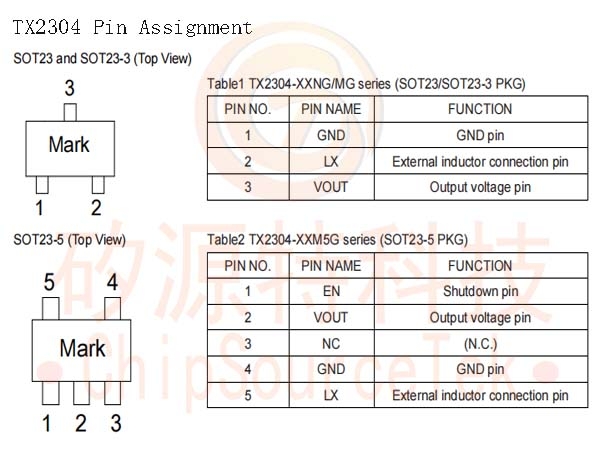

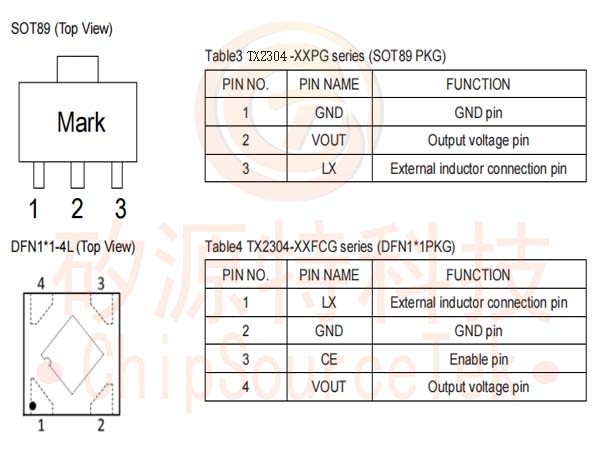

TX2304 Pin Assignment：

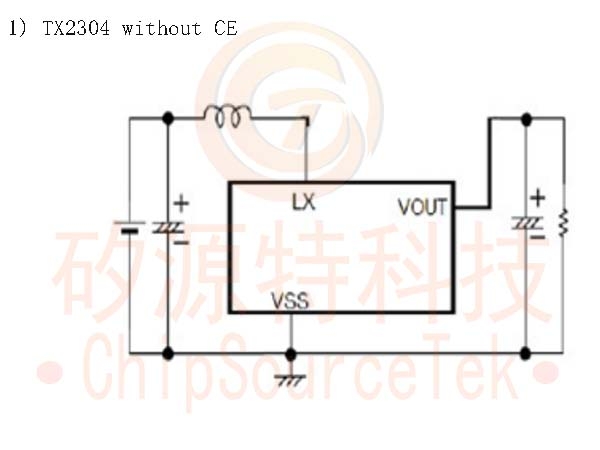

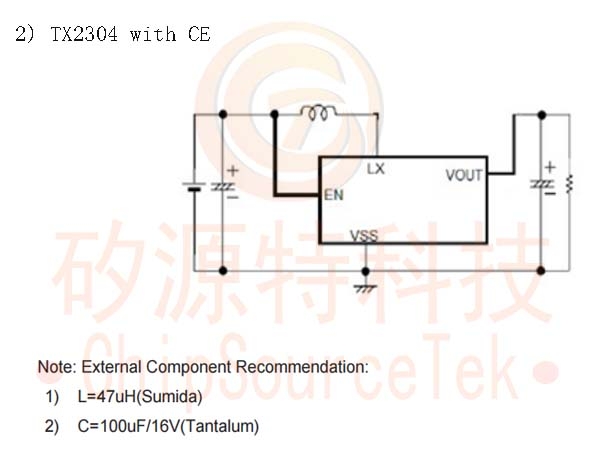

TX2304 Application Circuits：
