ME1117 General Description:
ME1117 series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess of 1.0A with a maximum dropout voltage of 1.3V at 1.0A. This series contains six fixed output voltages of 1.2 V, 1.5V,1.8 V, 2.5 V, 3.3 V, and 5.0 V that have no minimum load requirement to maintain regulation. Also included is an adjustable output version that can be programmed from 1.25 V to 20 V with two external resistors. On chip trimming adjusts the reference/output voltage to within ±2.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The ME1117 series can operate with up to 20 V input.
ME1117 Features:
Output Current in Excess of 1.0A
Dropout Voltage：1.07V@ IOUT =100mA
Operating Voltage Range：4.8V～20V（ME1117A33）
Highly Accuracy： ±2％
Adjustable Output Voltage Option
Standby Current：3.3mA（TPY.）
High Ripple Rejection：60dB@1KHz（ME1117A33）
Line Regulation: 0.1％（TYP.）
Temperature Stability≤0.5%
Current Limit（1.3A）
Thermal Shutdown Protection（160℃）
ME1117 Typical Application:
Consumer and Industrial Equipment Point of Regulation
Switching Power Supply Post Regulation
Hard Drive Controllers
Battery Chargers

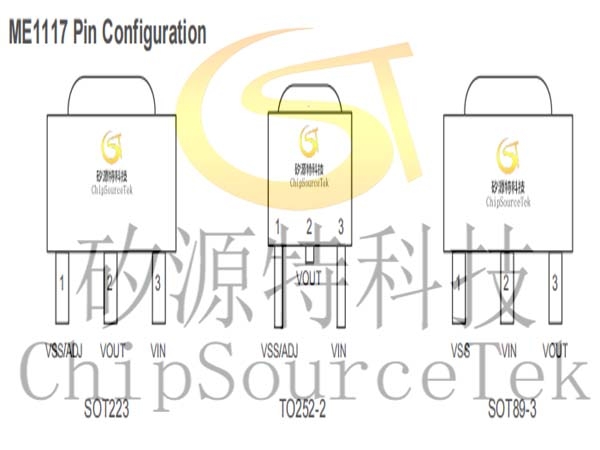

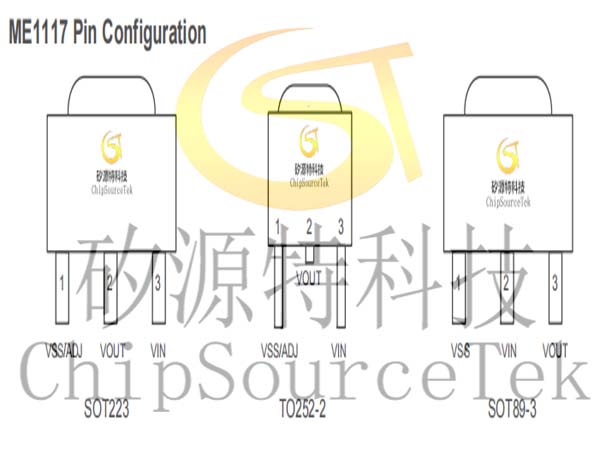

ME1117 Package:
3-pin SOT223、TO252-2、SOT89-3

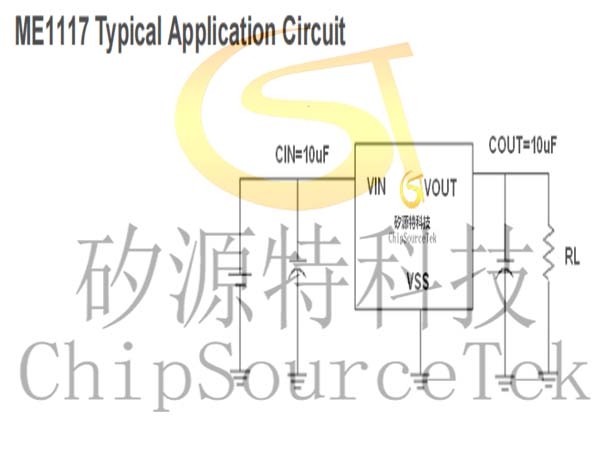

ME1117 Typical Application Circuit：

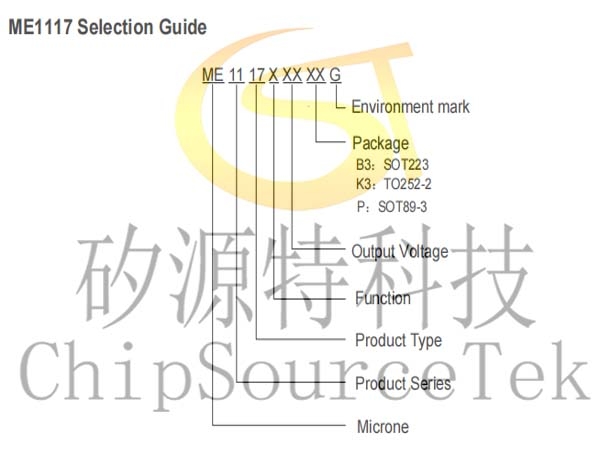

ME1117 Selection Guide：
|
product series
|
product description |
| ME1117A15B3G |
VOUT =1.5V； Package：SOT223 |
| ME1117A18B3G |
VOUT =1.8V； Package：SOT223 |
| ME1117A25B3G |
VOUT =2.5V； Package：SOT223 |
| ME1117A33B3G |
VOUT =3.3V； Package：SOT223 |
| ME1117A33K3G |
VOUT =3.3V； Package：TO252-2 |
| ME1117A33PG |
VOUT =3.3V； Package：SOT89-3 |
| ME1117A50B3G |
VOUT =5.0V； Package：SOT223 |
| ME1117A50K3G |
VOUT =5.0V； Package：TO252-2 |
| ME1117FB3G |
VFB =1.25V； Package：SOT223 |

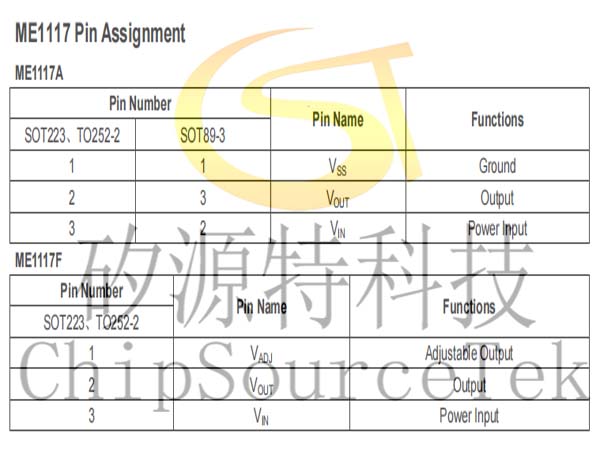

ME1117 Pin Assignment：

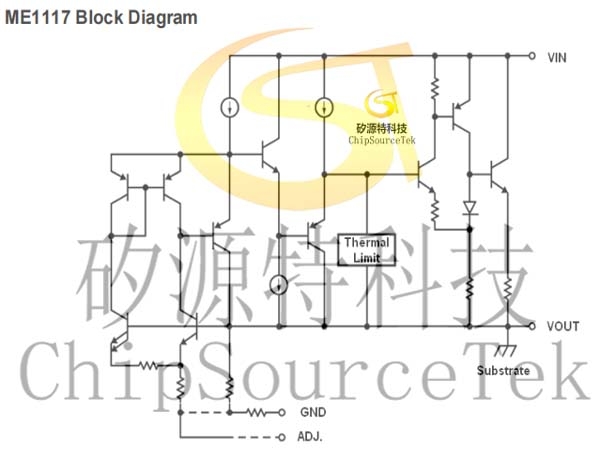

ME1117 Block Diagram：
