CST75XX Description:
The CST75XX 36V series is a high voltage，ultralow-power，low dropout voltage regulator. The device can deliver 150mA output current with a dropout voltage of 300mV and allows an input voltage as high as 36V. The typical quiescent current is only 1.5µA. The device is available in fixed output voltages of 1.8,2.5,2.8,3.0,3.3,3.6,4.0,4.2,4.4 and 5.0V.The device features integrated shortcircuit and thermal shutdown protection.Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.
CST75XX Features:
Low Power Consumption: 1.5µA (Typ)
Good Transient Response
Maximum Output Current: 150mA
Integrated Short-Circuit Protection
Small Dropout Voltage
300mV@100mA (Vout=3.3V)
Over-Temperature Protection
Output Current Limit
High Input Voltage: Up to 36V
Stable with Ceramic Capacitor
High Accurate:
CST75XX (B) ±2% Output Voltage
CST75XX (A) ±1% Output Voltage
Support Fixed Output Voltage:
1.8,2.5,2.8.3.0,3.3,3.6,4.0,4.2,4.4and 5.0V
RoHS Compliant and Lead (Pb) Free
Available Package:
SOT23-3L\SOT89-3L\DFN4\DFN3\SOT23-5L
CST75XX Application:
Portable, Battery Powered Equipment
Smoke detector and sensor
Battery-powered equipment
Audio/Video Equipmen
Weighting Scales
Home Automation

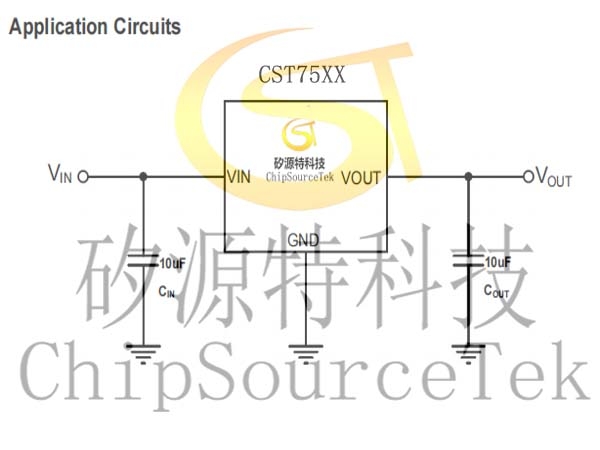

CST75XX Application Circuits:

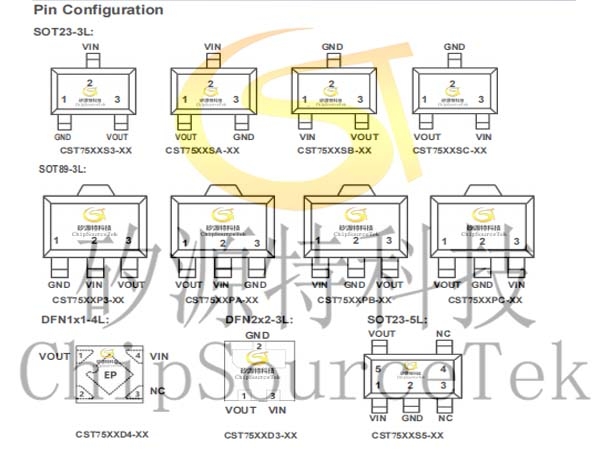

CST75XX Pin Configuration:

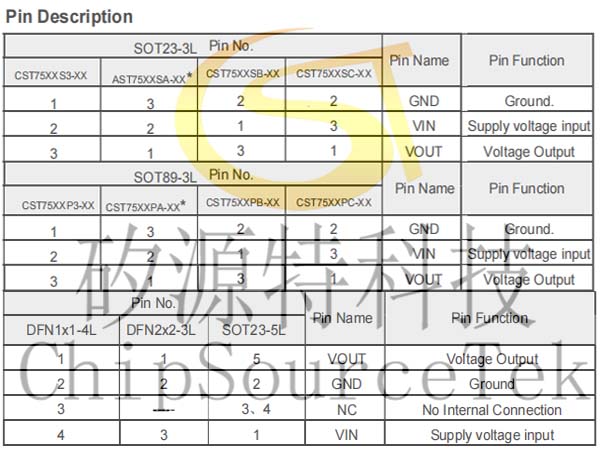

CST75XX Pin Description:
CST75XX Order Information:
CST75XX①②-③④⑤
|
Designator
|
Symbol
|
Description
|
|
①②
|
S3/P3/D4/D3/S5
|
SOT23-3L / SOT89-3L / DFN4L / DFN3L / SOT23-5L |
|
③④
|
Integer
|
Output Voltage 1.8,2.5,2.8.3.0,3.3,3.6,4.0,4.2,4.4 and 5.0V |
|
⑤
|
A
|
Accurate ±1%
|
|
B
|
Accurate ±2%
|
|
Model
|
Marking
|
Description
|
Package
|
T/R Qty
|
|
CST75XXS3-XX*
|
AFXXA(B)
|
CST75XX 36V;1.5µA IQ, 150mA Low-Dropout LDO |
SOT23-3L
|
3,000 PCS
|
|
CST75XXP3-XX*
|
AFXXA(B)
|
SOT89-3L
|
1,000 PCS
|
|
|
CST75XXS5-XX*
|
AFXXA(B)
|
SOT23-5L
|
3,000 PCS
|
|
|
CST75XXD4-XX*
|
**
|
DFN1X1-4L
|
10,000 PCS
|
|
|
CST75XXD3-XX*
|
**
|
DFN2X2-3L
|
1,000 PCS
|

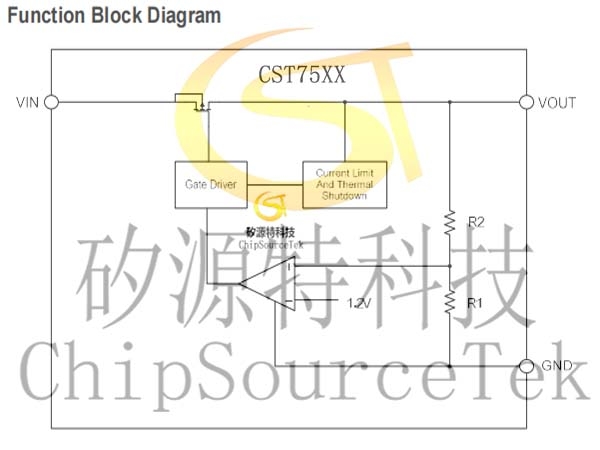

CST75XX Function Block Diagram:
