The ME6118 series are highly accurate, low noise,LDO Voltage Regulators that are capable of providing an output current that is in excess of 1A with a maximum dropout voltage of 1.3V at 1A （ME6118A33）.This series contains four fixed output voltages of 1.2V, 1.8V, 2.5V and 3.3V that have no minimum load requirement to maintain regulation. On chip trimming adjusts the reference/output voltage to within ±2% accuracy.

    Internal protection features consist of output current limiting, safe operating area compensation,and thermal shutdown.

    The ME6118series can operate with up to 18V input.

Output Current in Excess of 1A

Dropout Voltage:80mV@ IOUT =100mA     （ME6118A33）

Operating Voltage Range: 2.5V～18V

Highly Accuracy: ±2％

Adjustable Output Voltage Option

Standby Current: 52uA（TYP.）

High Ripple Rejection: 70dB@1KHz（ME6118A33）

Line Regulation: 2mV（TYP.）

Temperature Stability≤0.5%

Thermal Shutdown Protection：160℃

Consumer and Industrial Equipment Point of Regulation

Switching Power Supply Post Regulation

Hard Drive Controllers

Battery Chargers

3-pin SOT223
SOT23-3

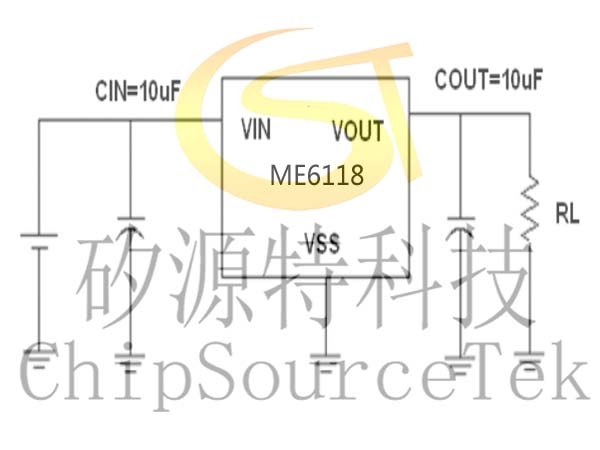

ME6118  Typical Application Circuit:

ME6118  Selection Guide:

product series	product description
ME6118A12B3G	VOUT =1.2V； Package：SOT223
ME6118A18B3G	VOUT =1.8V； Package：SOT223
ME6118A25B3G	VOUT =2.5V； Package：SOT223
ME6118A33B3G	VOUT =3.3V； Package： SOT223
ME6118A50B3G	VOUT =5.0V； Package：SOT223
ME6118E25B3G	VOUT =2.5V； Package：SOT223； Different pin
ME6118E33B3G	VOUT =3.3V； Package：SOT223； Different pin
ME6118A33M3G	VOUT =3.3V； Package：SOT23-3

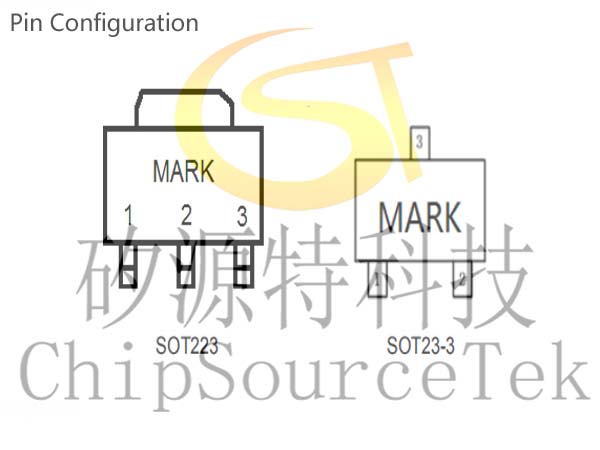

ME6118  Pin Configuration:

ME6118AXX

Pin Number		Pin Name	Functions
SOT223	SOT23-3
1	1	GND	Ground
2	2	VOUT	Output
3	3	VIN	Power Input

ME6118EXX

Pin Number	Pin Name	Functions
SOT223
1	GND	Ground
2	VIN	Power Input
3	VOUT	Output

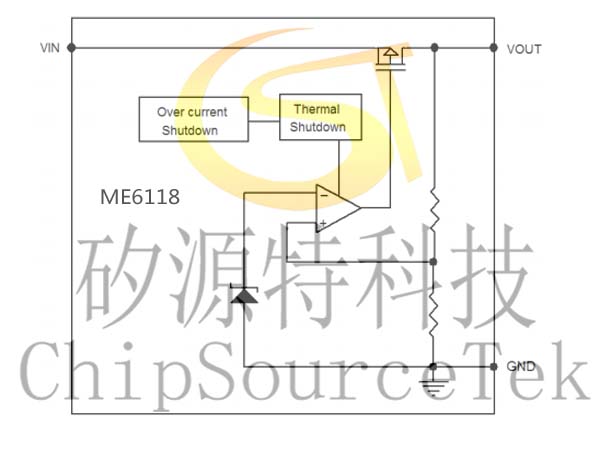

ME6118 Block Diagram：
