ME6206 General Description:
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies .The series provides large currents with a significantly small dropout voltage.The series is compatible with low ESR ceramic capacitors .
The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
ME6206 Features:
Maximum Output Current: 300mA （V IN ＝4.3V,V OUT ＝3.3V）
Dropout Voltage: 200mV@ I OUT =100mA
Input Voltage Range: up to 6.0V
Highly Accuracy: ±2％
Low Power Consumption: 8uA（TYP.）
Excellent Input Stability
Be available to regulator and reference voltage
ME6206 Typical Application:
Mobile phones
communication equipment
Portable games
Cameras, Video systems
Reference voltage sources
Battery powered equipment
Package 3-pin SOT89-3，SOT23-3，TO92，SOT23
ME6206 Selection Guide:

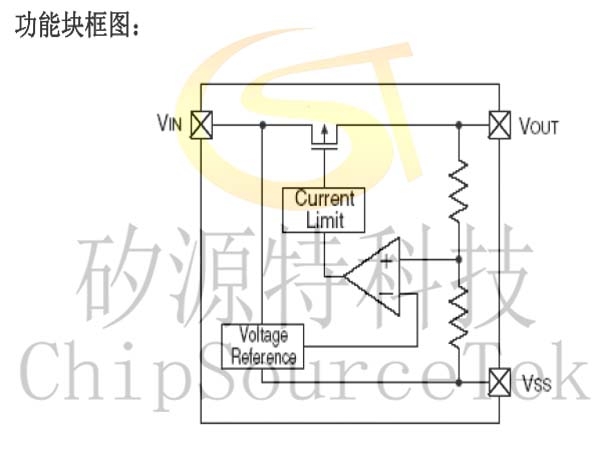

ME6206 Block Diagram:
ME6206 Selection Guide:
|
product series |
Output voltage |
Supply Current |
Package |
|
ME6206A15PG |
1.5V |
8uA |
SOT89-3 |
|
ME6206A15M3G |
1.5V |
8uA |
SOT23-3 |
|
ME6206A15XG |
1.5V |
8uA |
SOT23 |
|
ME6206A33TG |
3.3V |
8uA |
TO92 |
|
ME6206A33M3G |
3.3V |
8uA |
SOT23-3 |
|
ME6206K33M3G |
3.3V |
180uA |
SOT23-3 |
|
ME6206A15 |
|
|
|
|
ME6206A18 |
|
|
|
|
ME6206A28 |
|
|
|
|
ME6206A30 |
|
|
|
|
ME6206A33 |
|
|
|
ME6206 Block Diagram:

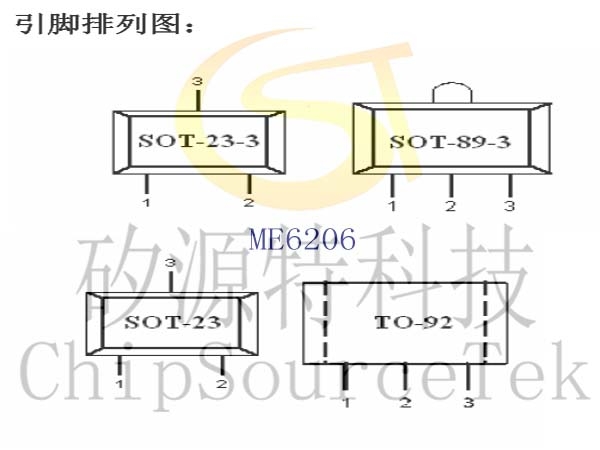

ME6206 Pin Configuration Pin Assignment
ME6206Axx/ ME6206Kxx

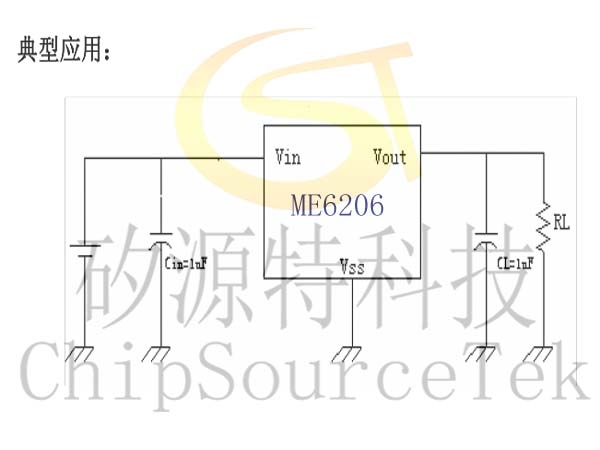

ME6206 Typical Application Circuit:
|
Pin |
Name |
Function |
||||
|
M3 |
P |
P1 |
X |
T |
||
|
SOT23-3 |
SOT89-3 |
SOT89-3 |
SOT23 |
TO-92 |
||
|
1 |
1 |
2 |
1 |
1 |
VSS |
Ground |
|
2 |
3 |
1 |
2 |
3 |
VOUT |
Output |
|
3 |
2 |
3 |
3 |
2 |
VIN |
Input |
ME6206 Typical Application Circuit:
