IP2320概述：
The IP2320 is a boost charge management IC that supports dual series Li-ion batteries.
IP2320 integrates power MOS and adopts synchronous switching architecture, so that it requires few peripheral devices in application, and effectively reduces the overall solution size and BOM cost.
IP2320 boost switch charging converter operating frequency 400KHz; 5V input, 8V/1A output conversion efficiency 92%;
The IP2320 has the input undervoltage protection function, which can intelligently adjust the charging current and adapt the load capacity of the adapter to prevent the adapter from being pulled down.
IP2320 support LED pin resistor set charging current, can set 4 constant current charging current.
The IP2320 supports external resistors to adjust the charging voltage, and the charging voltage can be adjusted continuously.
IP2320 integrated NTC protection function, with 10K NTC resistance to achieve charging NTC protection
The IP2320 is packaged in ESOP8.
IP2320特性：
5V input synchronous switch boost charging
The boost charging efficiency is 92%
Constant voltage charge voltage can be set by external resistor
Constant current charging current can be set by external resistor
Automatically adjusts input current, ADAPTS adaptor load
Support charging NTC temperature protection, support 10K NTC resistance
Support LED charging status indication
Power MOS built-in
400KHz switching frequency, can support 2.2uH inductance
Output overvoltage protection
IC overtemperature protection
Input and output pin withstand voltage 20V
ESD 4KV
IP2320应用：
Dual lithium battery/lithium-ion battery charging

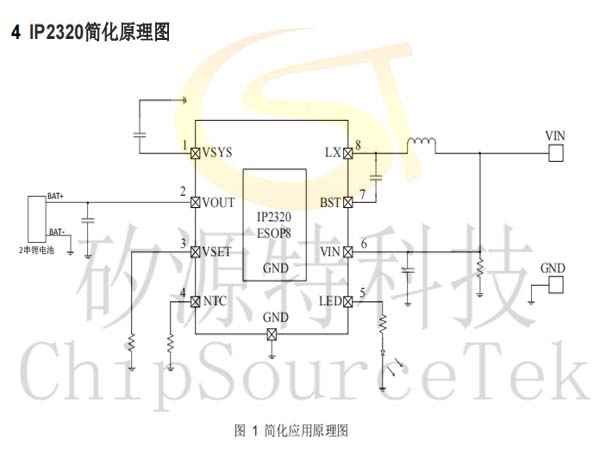

IP2320简化原理图：

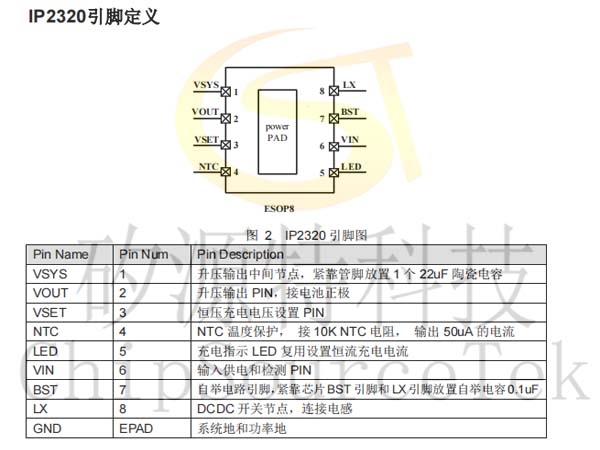

IP2320引脚定义：

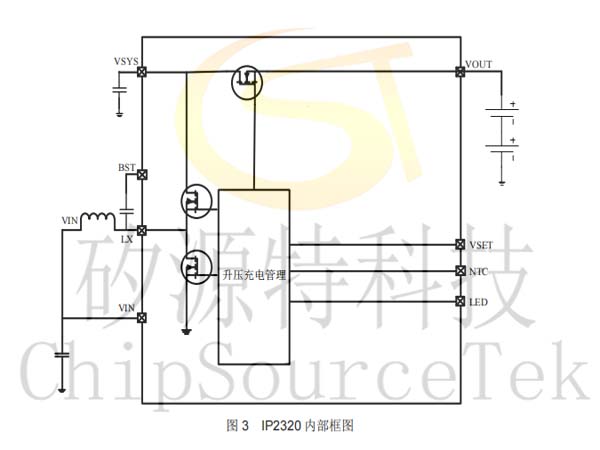

IP2320功能描述：

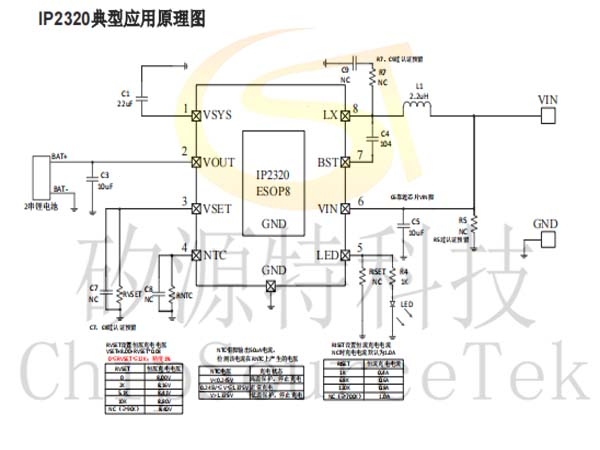

IP2320典型应用原理图：
