D6299A Overview：
D6299A is a DC bidirectional motor drive circuit, suitable for motor drive of toys, automatic valve motor drive, electromagnetic door lock drive, etc. It has two logic input terminals used to control the motor‘s forward, backward, and braking. This circuit has good anti-interference performance, small standby current, low output internal resistance, and also has a built-in diode that can release the reverse surge current of inductive loads.
D6299A Feature:
A small standby current, less than 2uA.
The working voltage range is wide from 3.0V to 25V.
There is an emergency stop function.
It has overheat protection function.
It has overcurrent and short-circuit protection functions.

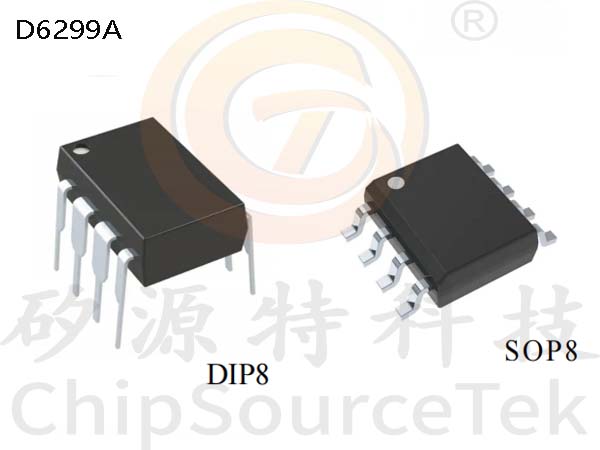

D6299A Packaging：
|
Model
|
Package
|
Printing method
|
Packaging method
|
|
D6299A
|
DIP8
|
CHMC
D6299A
SXXXX
|
50 pieces/tube
|
|
D6299A
|
SOP8
|
CHMC
D6299AF
SXXXX
|
100 pieces/tube
4000 pieces/plate
|

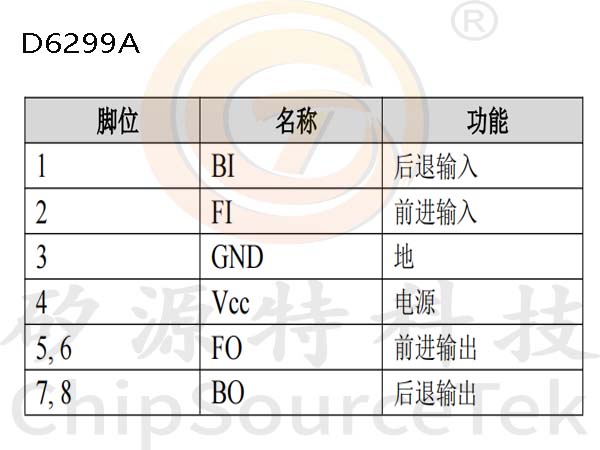

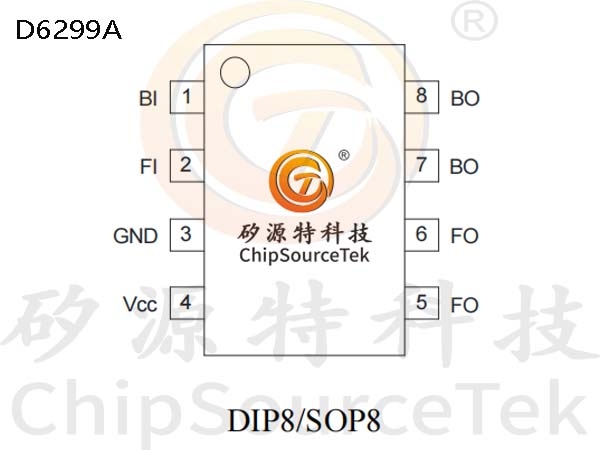

D6299A Pin function:

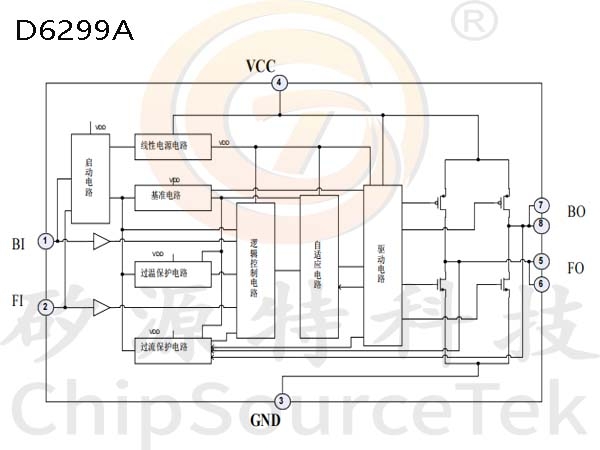

D6299A Block diagram:
