XYT7889 Overview：
XYT7889 is a motor driver chip packaged in SOP with a standby current of less than 2UA and a working current of 5A, with an input voltage of 3-25V
XYT7889 is a motor driver chip packaged in SOP with a standby current of less than 2UA and a working current of 5A, with an input voltage of 3-25V
XYT7889 is a DC bidirectional motor drive circuit, suitable for motor drive of toys, automatic valve motor drive, electromagnetic door lock drive, etc. It has two logic input terminals used to control the motor‘s forward, backward, and braking. This circuit has good anti-interference performance, small standby current, low output internal resistance, and also has a built-in diode that can release the reverse surge current of inductive loads.
XYT7889 Feature:
A small standby current, less than 2uA.
The working voltage range is wide from 3.0V to 25V.
There is an emergency stop function.
It has overheat protection function.
It has overcurrent and short-circuit protection functions.
.jpg)

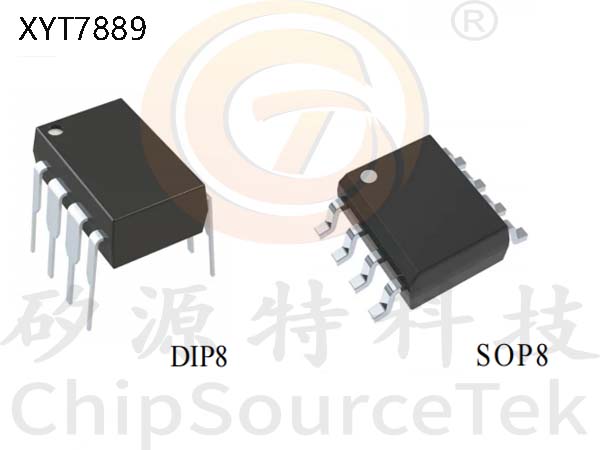

XYT7889 Packaging：
|
Model
|
Package
|
Printing method
|
Packaging method
|
|
XYT7889
|
DIP8
|
XYT7889
SXXXX
|
50 pieces/tube
|
|
XYT7889F
|
SOP8
|
XYT7889F
SXXXX
|
100 pieces/tube
4000 pieces/plate
|

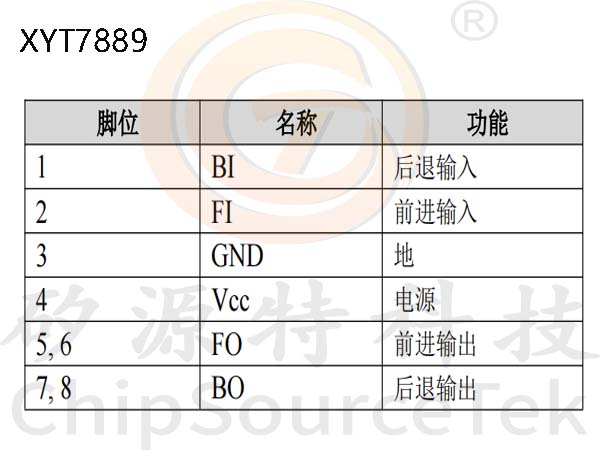

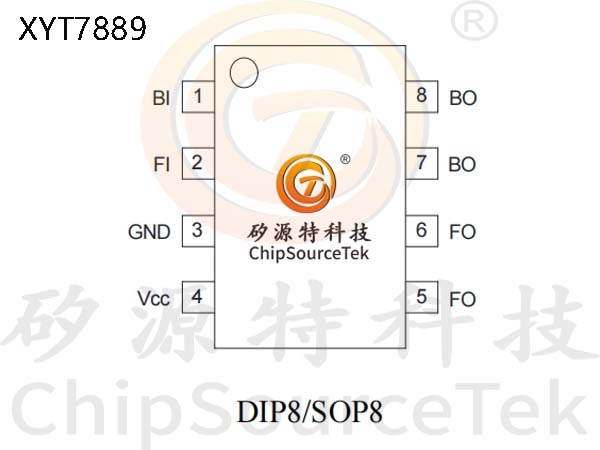

XYT7889 Pin function:
.jpg)

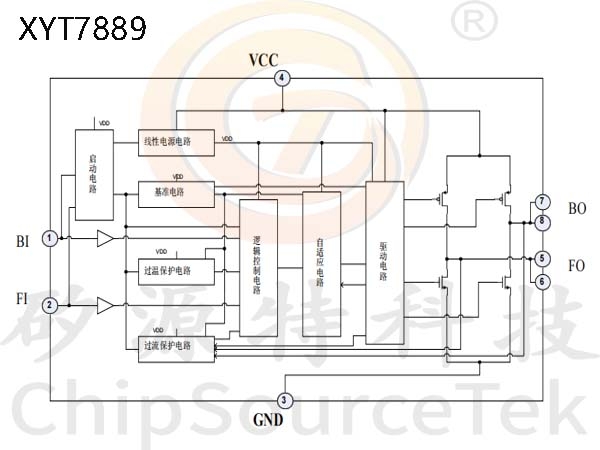

XYT7889 Block diagram:
.jpg)
