CST4913 Description:
CST4913 is BVDSS=-20V, RDSON=26mΩ, Double P-channel fast switching Mosfet with ID=-9.0A. Provide SOP8 packaging.
The CST4913 is the high cell density trenched P-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST4913 meet the RoHS and Green Product requirement with full function reliability approved.
CST4913 Feature:
Super Low Gate Charge
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST4913 Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
-20V |
26mΩ |
-9.0A |

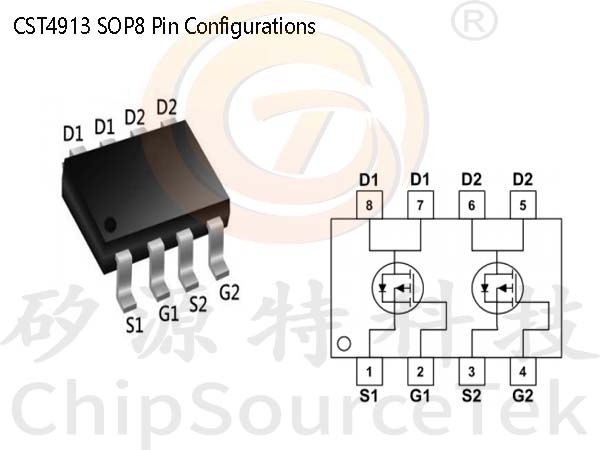

CST4913 SOP8 Pin Configuration：

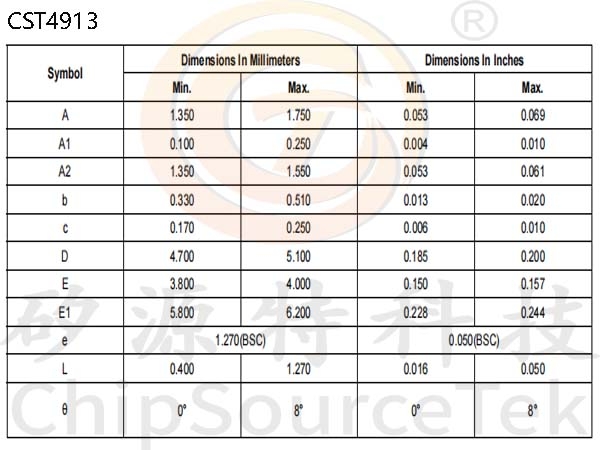

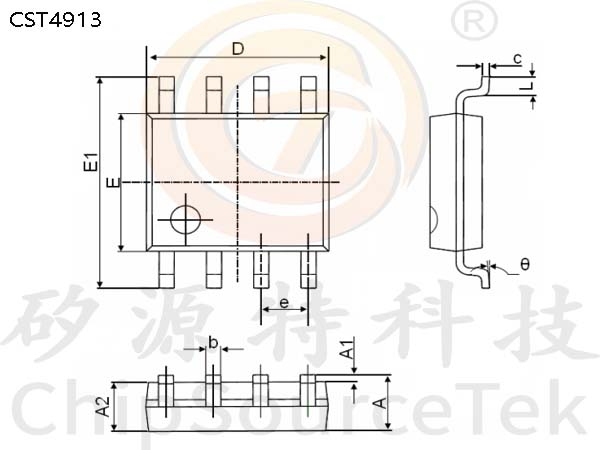

CST4913 SOP-8 Package Information：
