CST7002KW Description：
CST7002KW is a dual N-channel fast switching Mosfet with VDS=60V, ID=0.2A，RDS(ON)<2.1Ω@VGS=10V，RDS(ON)<2.7Ω@VGS=4.5V.providing SOT363-6L packaging.
CST7002KW Features:
VDS=60V, ID=0.2A
RDS(ON)<2.1Ω@VGS=10V
RDS(ON)<2.7Ω@VGS=4.5V
Advanced Trench Technology
Excellent RDS(ON) and Low Gate Charge
Lead free product is acquired
ESD Protected: 2KV
CST7002KW Application:
Battery Operated Systems
Direct logic-level Interface:TTL/CMOS
Solid-State Relays
CST7002KW Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
60V |
1.6Ω |
200mA |

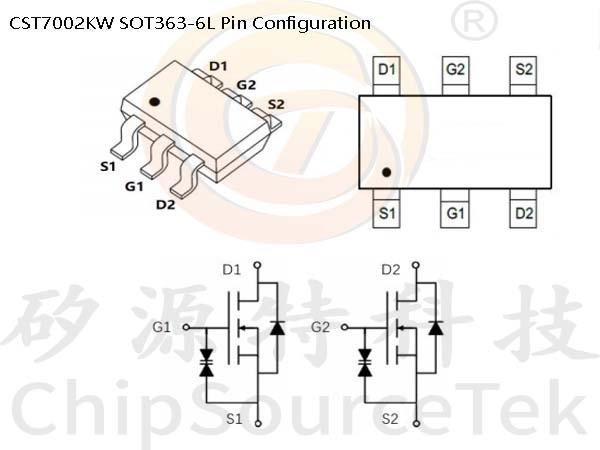

CST7002KW SOT363-6L Pin Configuration:

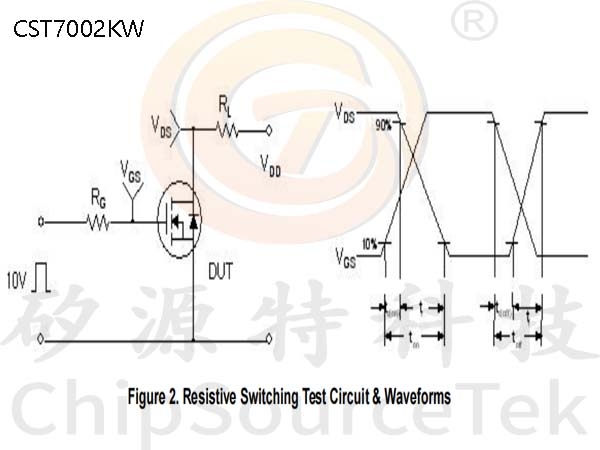

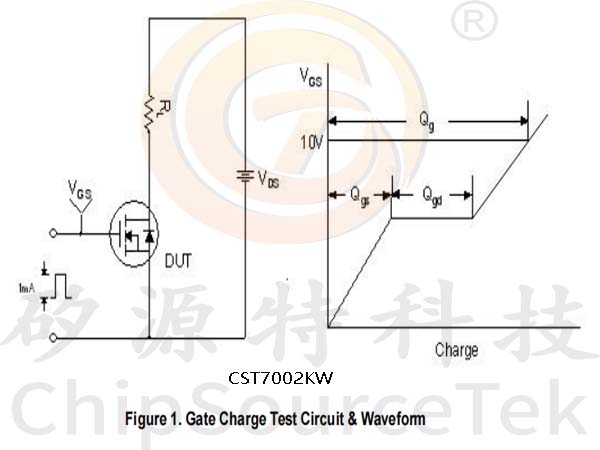

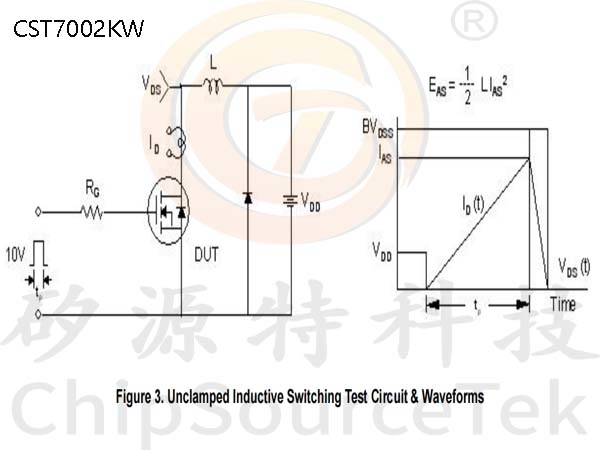

CST7002KW Test Circuit:

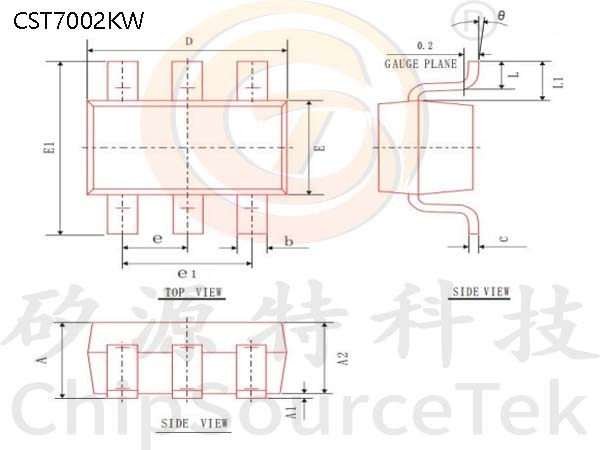

CST7002KW Package Mechanical Data-SOT-363-6L:
