CST6800B Description:
CST6800B is a dual N-channel fast switching Mosfet with BVDSS=30V, RDSON=29mΩ, and ID=4.5A. Provide SOT23-6L packaging.
The CST6800B uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.It can be used in a wide variety of applications.
CST6800B Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST6800B Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
30V |
29mΩ |
4.5A |

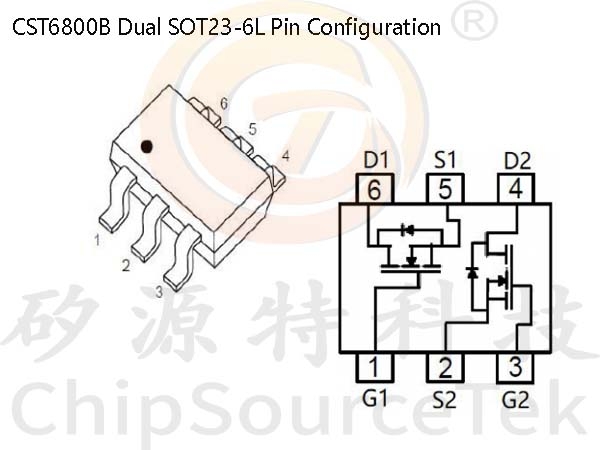

CST6800B Dual SOT23-6L Pin Configuration：

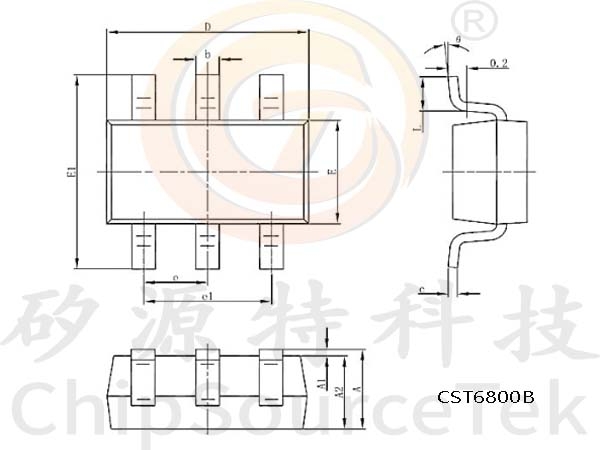

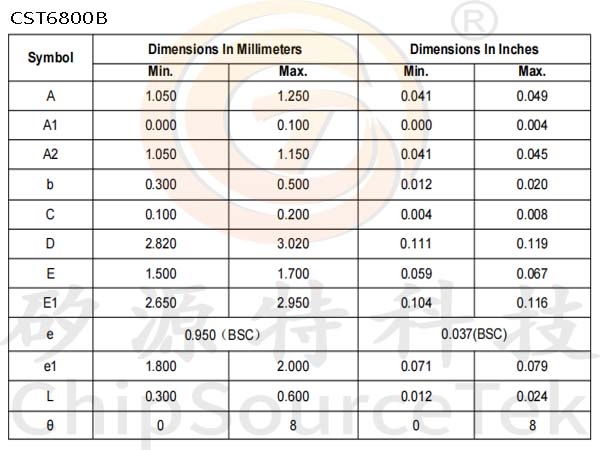

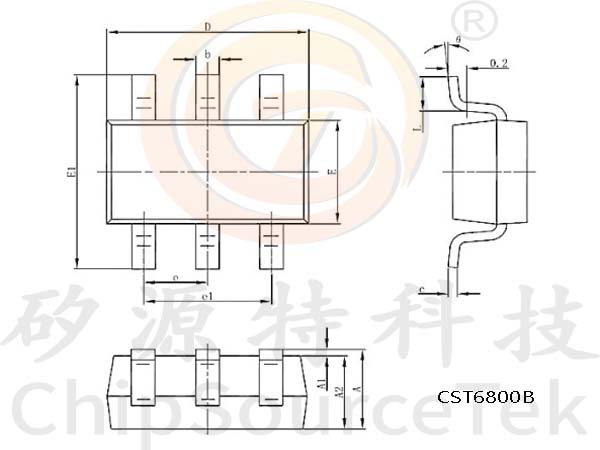

CST6800B Package Mechanical Data-SOT23-6-Double：
