MXN3382概述：
    MXN3382是VDS=18V，ID=22A，@VGS=4.5V，RDS(ON)(Typ.)=4.5m?，@VGS=3.8V，RDS(ON)(Typ.)=4.7m?，@VGS=2.5V，RDS(ON)(Typ.)=6m?的Dual N-Channel MOSFET.MXN3382提供DFN3x3-8L封装.
    The MX3382 uses advanced trench technology to provideexcellent RDS(ON), low gate charge and operation with gatevoltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications. It is ESD protected

MXN3382特性：
VDS =18V，ID =22A
@VGS=4.5V RDS(ON)(Typ.)=4.5m?
@VGS=3.8V RDS(ON)(Typ.)=4.7m?
@VGS=2.5V RDS(ON)(Typ.)=6m?
ESD Rating: 2000V HBM
High Power and current handing capability
Lead free product is acquired
Surface Mount Package

MXN3382应用：
PWM application
Load switch

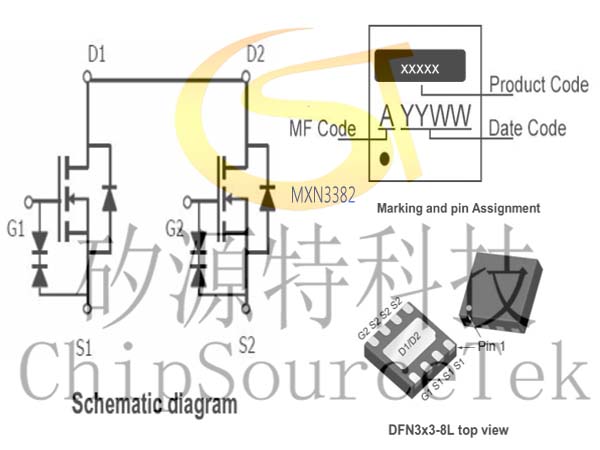

MXN3382典型应用及引脚图：
