升降压芯片

MT2496

    MT2496是一个完全集成的,高效的3A同步整流降压转换器。MT2496在一个较宽的输出电流负载范围内高效工作。
    该设备提供了两种操作模式,PWM控制和PFM模式切换控制,这允许在更广泛的负载范围内实现高效率。
    MT2496需要最少数量的现成的标准外部组件,并可在一个6针SOT23 ROHS兼容包。
    MT2496 Description/概述:
        MT2496是一个完全集成的,高效的3A同步整流降压转换器。MT2496在一个较宽的输出电流负载范围内高效工作。
        该设备提供了两种操作模式,PWM控制和PFM模式切换控制,这允许在更广泛的负载范围内实现高效率。
        MT2496需要最少数量的现成的标准外部组件,并可在一个6针SOT23 ROHS兼容包。

        The MT2496 is a fully integrated, high– efficiency 3A synchronous rectified step-down converter. The MT2496 operates at high efficiency over a wide output current load range.
        This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load.
        The MT2496 requires a minimum number of readily available standard external components and is available in an 6-pin SOT23 ROHS compliant package.

    MT2496 Features/特性:
    High Efficiency: Up to 96%
    500KHz Frequency Operation
    3A Output Current
    No Schottky Diode Required
    4.5V to 16V Input Voltage Range
    0.6V Reference
    Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
    Integrated internal compensation
    Stable with Low ESR Ceramic Output Capacitors
    Over Current Protection with Hiccup-Mode
    Thermal Shutdown
    Inrush Current Limit and Soft Start
    Available in SOT23-6 Package
    -40°C to +85°C Temperature Range

    MT2496 Applications/应用:
    Distributed Power Systems
    Digital Set Top Boxes
    Flat Panel Television and Monitors
    Wireless and DSL Modems
    Notebook Computer

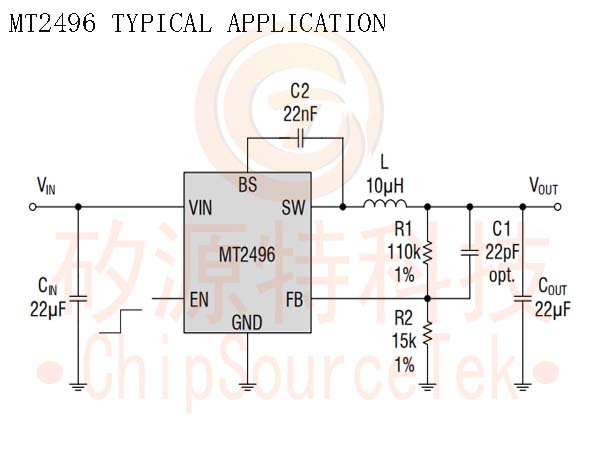

    MT2496 Typical Application:

    MT2496 Package/Order Information:
    Order Part Number
    Package
    Top Marking
    MT2496
    SOT23-6
    A626DC

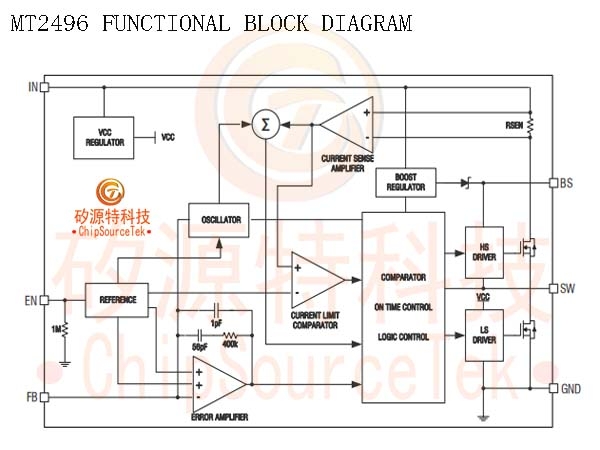

    MT2496 Functional Block Diagram:
