升降压芯片

MT2445AD

    MT2445AD是一个宽输入范围,高效率,同步降压开关调节器,能够提供高达0.8A的输出电流。这种电流模式PWM控制的转换器的固定开关频率为600 KHz,允许使用小的外部组件,如陶瓷输入和输出帽,以及小的电感器。
    MT2445AD还采用了一种专有的控制方案,在轻负载期间将设备切换到节能模式,从而扩大了高效运行的范围。使其成为智能电表和汽车应用等工业应用的理想解决方案。在汽车系统中,电力来自电池,其电压通常在9V到24V之间。包括冷曲柄和双电池跳动,最小输入电压可低至5V,最大可达40V,甚至有更高的瞬态电压。在这些高输入电压下,线性调节器不能用于高供电电流而不过的调节器。相反,必须使用像MT2445AD这样的高效开关调节器来尽量减少散热。
    MT2445AD可提供SOT23-6软件包。
    MT2445AD Description/概述:
        The MT2445AD is a wide input range, highefficiency, synchronous step-down switching regulator, capable of delivering up to 0.8A of output current. With a fixed switching frequency of 600KHz,this current mode PWM controlled converter allows the use of small external components, such as ceramic input and output caps, as well as small inductors.
        MT2445AD also employs a proprietary control scheme that switches the device into a power save mode during light load, thereby extending the range of high efficiency operation. making it an ideal solution for industrial applications such as smart meters as well as automotive applications. In automotive systems, power comes from the battery, with its voltage typically between 9V and 24V. Including cold crank and double battery jump-starts, the minimum input voltage may be as low as 5V and the maximum up to 40V, with even higher transient voltages. With these high input voltages, linear regulators cannot be used for high supply currents without overheating the regulator. Instead, high efficiency switching regulators such as MT2445AD must be used to minimize thermal dissipation.
        MT2445AD is available SOT23-6 Packages.

        MT2445AD是一个宽输入范围,高效率,同步降压开关调节器,能够提供高达0.8A的输出电流。这种电流模式PWM控制的转换器的固定开关频率为600 KHz,允许使用小的外部组件,如陶瓷输入和输出帽,以及小的电感器。
        MT2445AD还采用了一种专有的控制方案,在轻负载期间将设备切换到节能模式,从而扩大了高效运行的范围。使其成为智能电表和汽车应用等工业应用的理想解决方案。在汽车系统中,电力来自电池,其电压通常在9V到24V之间。包括冷曲柄和双电池跳动,最小输入电压可低至5V,最大可达40V,甚至有更高的瞬态电压。在这些高输入电压下,线性调节器不能用于高供电电流而不过的调节器。相反,必须使用像MT2445AD这样的高效开关调节器来尽量减少散热。
        MT2445AD可提供SOT23-6软件包。

    MT2445AD Features/特性:
    High Efficiency at 12 In 3.3V Out Up to 92%
    600KHz Frequency Operation
    0.8A Output Current
    No Schottky Diode Required
    5V to 40V Input Voltage Range
    0.8V Reference
    Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
    Integrated internal compensation
    Stable with Low ESR Ceramic Output Capacitors
    Thermal Shutdown and UVLO
    Inrush Current Limit and Soft Start
    Available in SOT23-6 Package
    -40°C to +85°C Temperature Range

    MT2445AD Applications/应用:
    Small Meters
    Industrial Applications
    Automotive Applications
    Flat Panel Television and Monitors
    Wireless and DSL Modems
    Notebook Computer

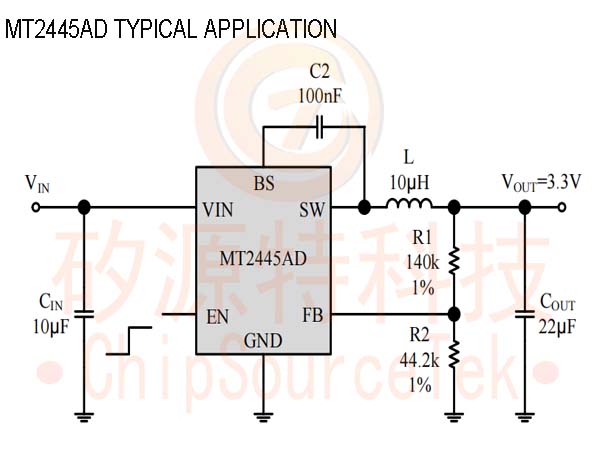

    MT2445AD Typical Application:

    MT2445AD Package/Order Information:
    Order Part Number
    Package
    Top Marking

    MT2445AD
    SOT23-6
    A06VDC

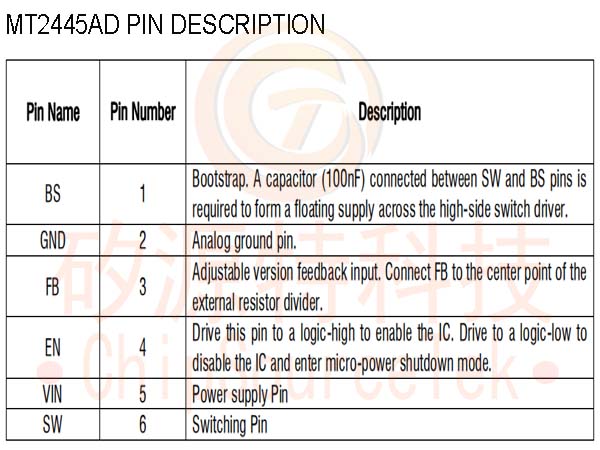

    MT2445AD Pin Description:

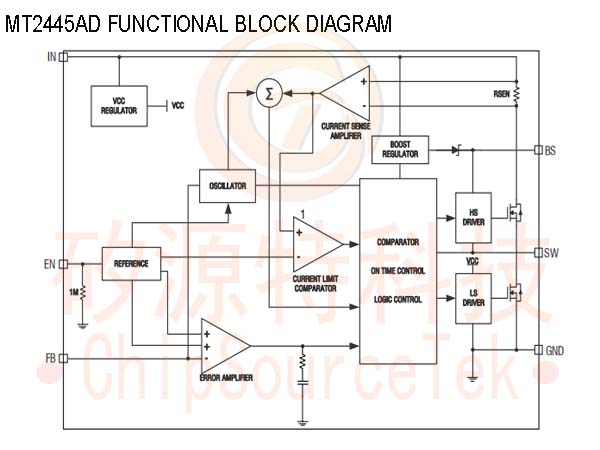

    MT2445AD Functional Block Diagram:
