APT320

    APT320语音芯片 最大声音文件700,最大触发组63,电源触发组1,最大的一步700,信号步静音长度0.64(6K采样率)
    APT320工作电压2.4V-3.6V, 总声音持续时间 20” ,
    APT320适用于玩具、小家电、智能家居。
    APT320 Description:
        APT320 is a 20 Sec Easy Use Speech IC .It Support PWM or DAC voice output with high quality speech , There are 20 second Voice Length under 6 KHz sampling and 4 bit hardware compression.
        Its internal built-in a oscillator for system clock without an external resistor. Maximum 63 voice groups. One Group contain several steps(voice section ); Maximum 700 steps for all the Groups.
        Each Step can be define Trigger Mode, Output Status, Voice Section, Mute length, I/O Type & Simple Programming Function. User can select 8bit / 5bit / 4bit data compression.
        Support three mode trigger IC (Stand Alone, Serial Trigger Mode, CPU Command Mode ). Easy use development system is for function selection and voice combination . PC download the ROM code by the USB Port .

    APT320 Functions :
    MAX voice file : 700
    MAX Trigger Groups : 63
    Power On Trigger Group :1
    MAX Step : 700
    Signal step mute length : 0.64 s ( 6k sample rate )
    Operating Voltage range: 2.4V ~ 3.6V
    Total Voice Duration : 20” (120K Samples)
    I/O pin : 4
    Voice output : PWM or DAC
    Sequential Key : TG1 -> 32 Groups. TG2 -> 29 Groups. TG3,TG4-> 1 Group
    Debounce time : 50 us or 10 ms
    On/Off function : only for all TG PIN
    Sequential Key for Volume control function.
    Step can change Trigger I/O Type, Trigger Mode & Output Status.
    Hardware Trigger Group Repeat function.

    APT320 Simple Programming Function :
    (a) Write data to working register.
    (b) Working Register Increasing.
    (c) Step Jump by Working Register / Volume Status.

    APT320 Three Mode Trigger IC :
    - Key Stand-alone Trigger Mode :
    A. Edge/Level
    B. Hold/Unhold
    C. Retrigger/Irretrigger

    - Serial Trigger Mode :
    Combinations of TG1 and TG2 to trigger maximum 63 Voice Group.

    - CPU Command Mode :
    User command through TG1,TG2,TG3 & TG4 with serial CPU Interface to control the Multi-Playback function.

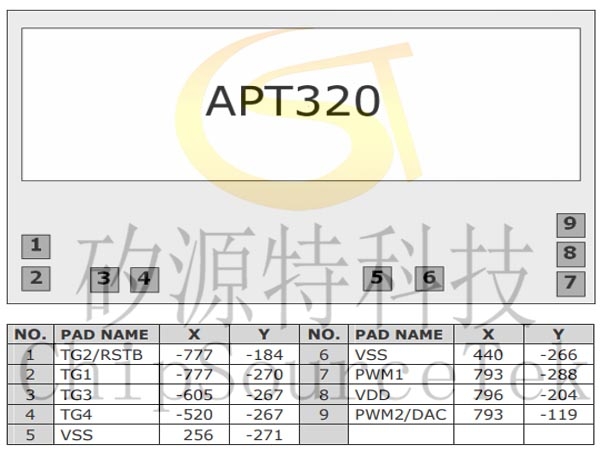

    APT320 Pad Location:


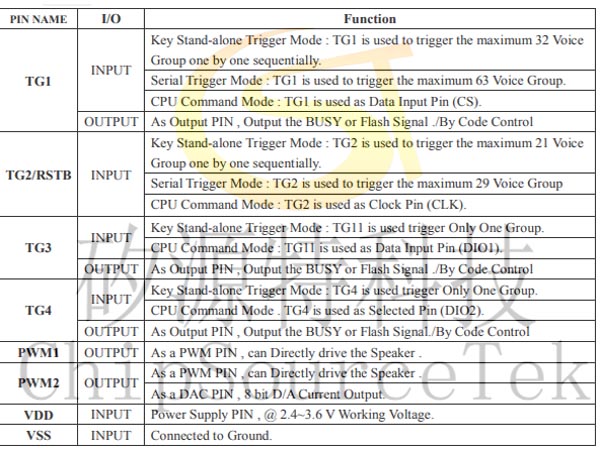

    APT320 PIN Descriptions:


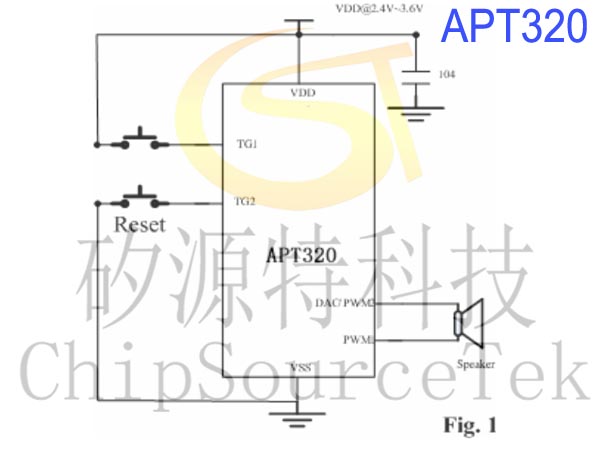

    APT320 TG2 Low Reset:


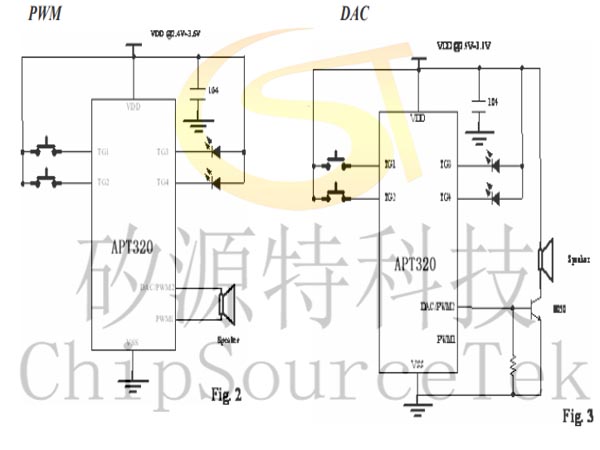

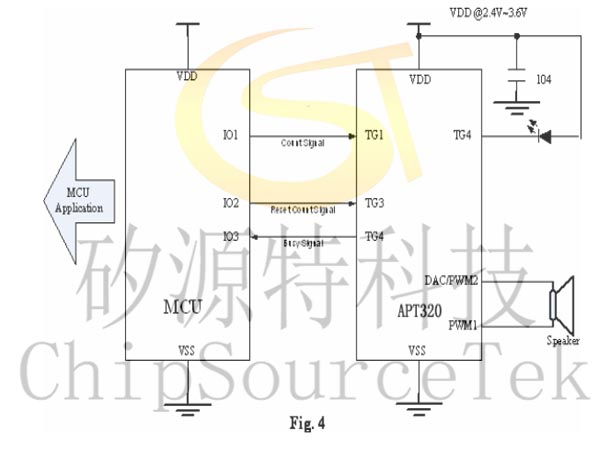

    APT305 Application Circuit:


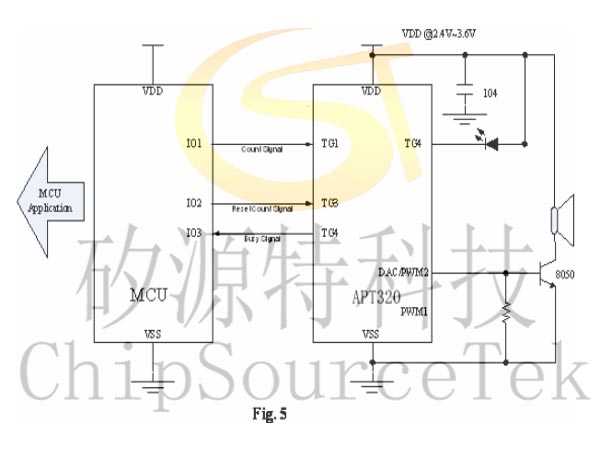

    APT305 3V Stand-alone Mode:


    APT305 3V Serial Mode:



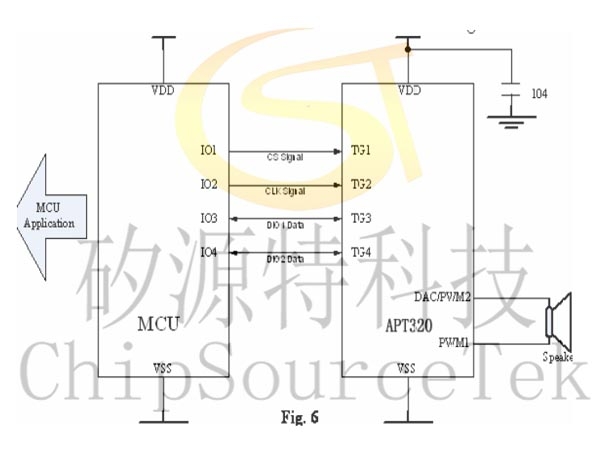

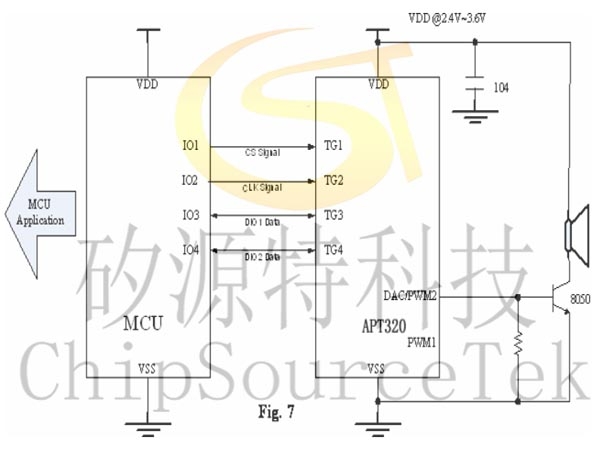

    APT305 3V CPU Mode:



    APT320 Package Information:

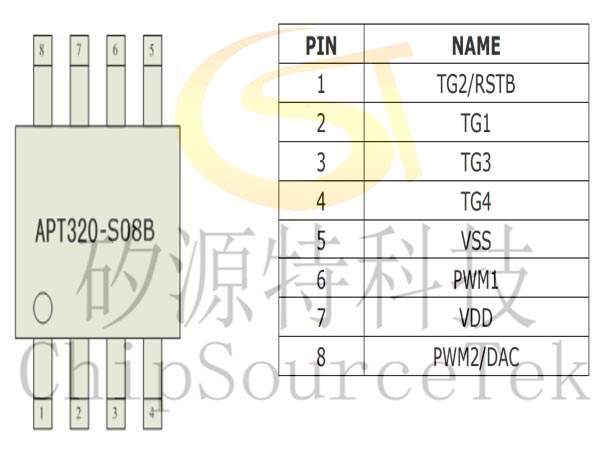

    APT320-S08B :

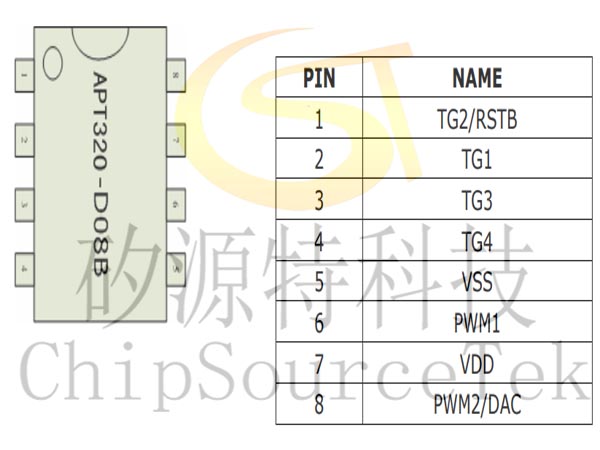

    APT320-D08B:
