单P-MOS

CST1216 DFN2X2-6L

    CST1216是BVDSS=-15V,RDSON=11mΩ,ID=-16A的P沟道快速切换mosfet。提供DFN2X2-6L封装。
    The CST1216 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
    The CST1216 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
    CST1216 Description/描述:
        CST1216是BVDSS=-15V,RDSON=11mΩ,ID=-16A的P沟道快速切换mosfet。提供DFN2X2-6L封装。
        The CST1216 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
        The CST1216 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.

    CST1216 Features/特性:
    Green Device Available
    Super Low Gate Charge
    Excellent CdV/dt effect decline
    Advanced high cell density Trench technology

    CST1216 Product Summary/产品目录:
    BVDSS
    RDSON
    ID
    -15V
    11
    -16A

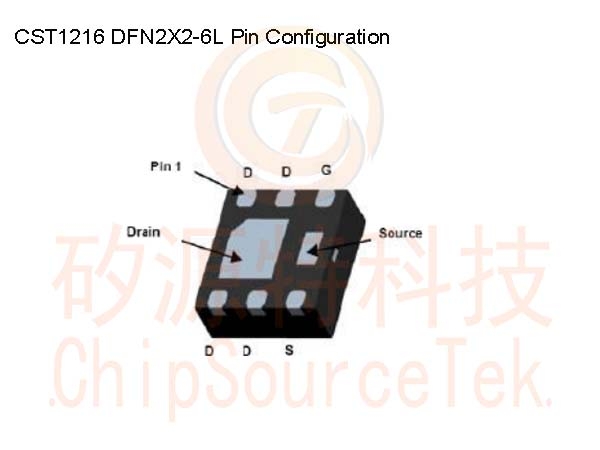

    CST1216 TO252 Pin Configuration/引脚配置:

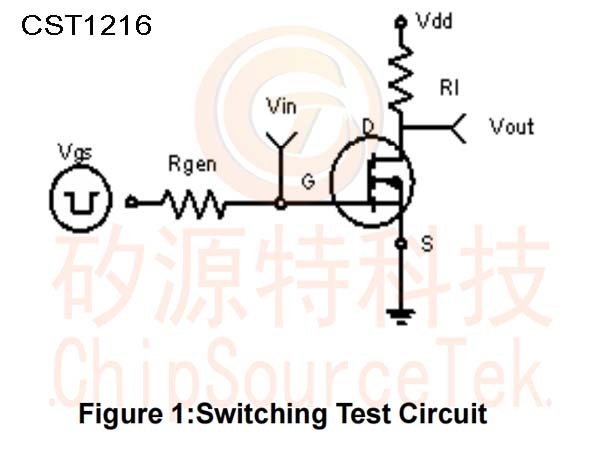

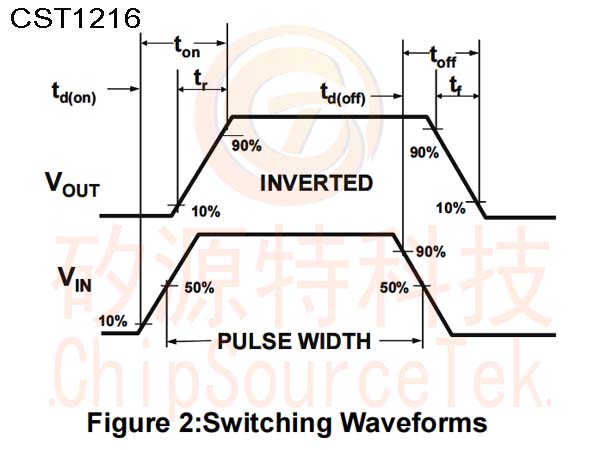

    CST1216 Typical Electrical/典型电气:
