单P-MOS

CST50P02 TO252

    CST50P02是VDS=-20V,RDSON=9mΩ,ID=-50A的P沟道Mosfet,提供TO252封装。
    The CST50P02 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
    The CST50P02 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
    CST50P02 Description/概述:
        CST50P02是VDS=-20V,RDSON=9mΩ,ID=-50A的P沟道Mosfet,提供TO252封装。
        The CST50P02 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
        The CST50P02 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.

    CST50P02 Features/特性:
    100% EAS Guaranteed
    Super Low Gate Charge
    Green Device Available
    Excellent CdV/dt effect decline
    Advanced high cell density Trench technology

    CST50P02 Product Summary:

    BVDSS
    RDSON
    ID
    -20V
    9mΩ
    -50A

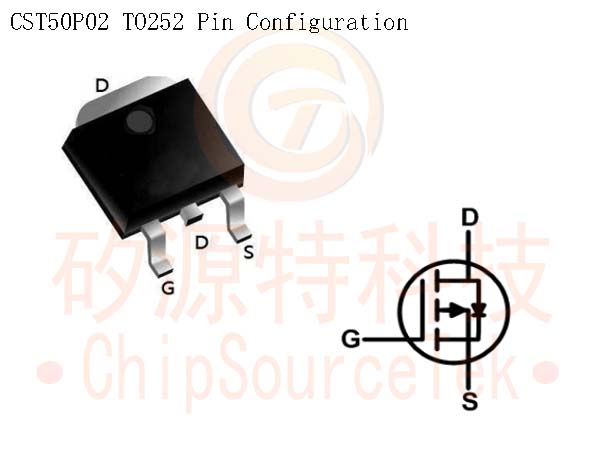

    CST50P02 TO252 Pin Configuration:

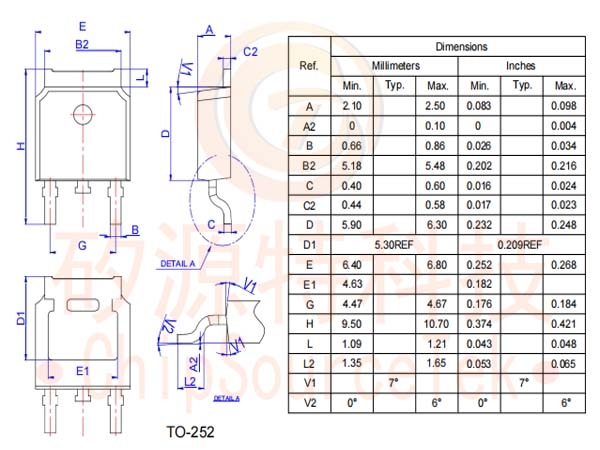

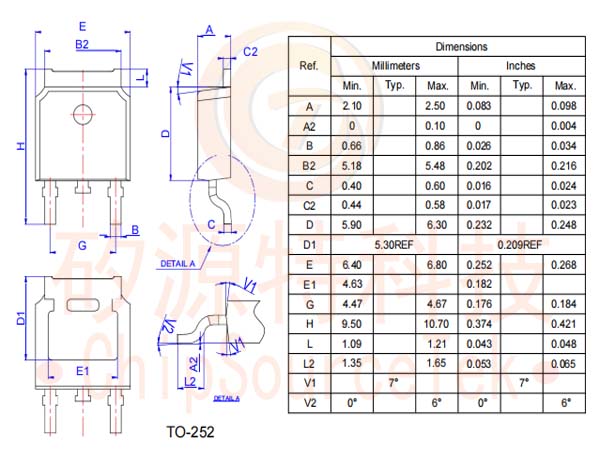

    CST50P02 Package Mechanical Data-TO-252:
    请提交您的基本信息,发邮件Sales@ChipSourceTek.com,或者打电话给我们,13823761625(微信同号),我们将会尽快与您联系!

    *

    *

    *

    *
