单P-MOS

CST4407A SOP8

    CST4407A是一款VDS=-30V,ID=-12A的P通道快速切换mosfet.
    The CST4407A is the highest performance trench P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
    The CST4407A meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
    CST4407A Description(概述):
        CST4407A是一款VDS=-30V,ID=-12A的P通道快速切换mosfet.
        The CST4407A is the highest performance trench P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
        The CST4407A meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.

    CST4407A Features(特性):
    100% EAS Guaranteed
    Green Device Available
    Super Low Gate Charge
    Excellent CdV/dt effect decline
    Advanced high cell density Trench technology

    CST4407A Product Summary(产品目录):

    BVDSS
    RDSON
    ID
    -30V
    9.5 mΩ
    -12A

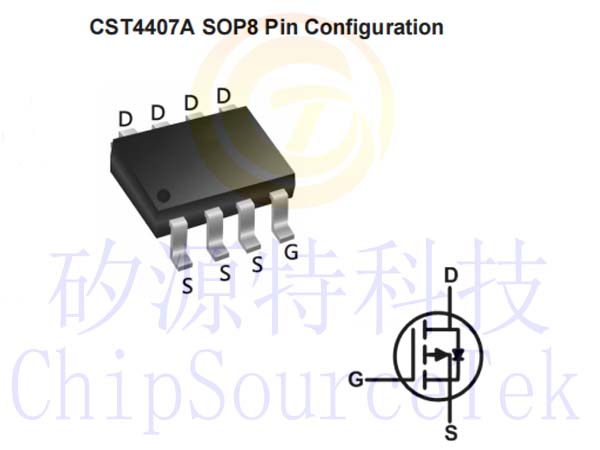

    CST4407A SOP8 Pin Configuration(引脚配置):
    CST4407A Test Circuit(测试电路):
