单N-MOS

PE4013SA SOP8

    PE4013SA是VDS=40V,ID=13A,RDS(ON)<10mΩ,@VGS=10V,RDS(ON)<13mΩ,@VGS=4.5V的N-Channel Enhancement Mode Power MOSFET.
    PE4013SA的丝印是PE4013SA.PE4013SA提供SOP-8封装.
    The PE4013SA uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.
    PE4013SA概述:
        PE4013SA是VDS=40V,ID=13A,RDS(ON)<10mΩ,@VGS=10V,RDS(ON)<13mΩ,@VGS=4.5V的N-Channel Enhancement Mode Power MOSFET.
        PE4013SA的丝印是PE4013SA.PE4013SA提供SOP-8封装.
        The PE4013SA uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

    PE4013SA特性:
    VDS = 40V, ID = 13A
    RDS(ON) < 10mΩ @ VGS=10V
    RDS(ON) < 13mΩ @ VGS=4.5V
    High Power and current handing capability
    Lead free product is acquired
    Surface Mount Package

    PE4013SA应用:
    PWM applications
    Load switch
    Power management

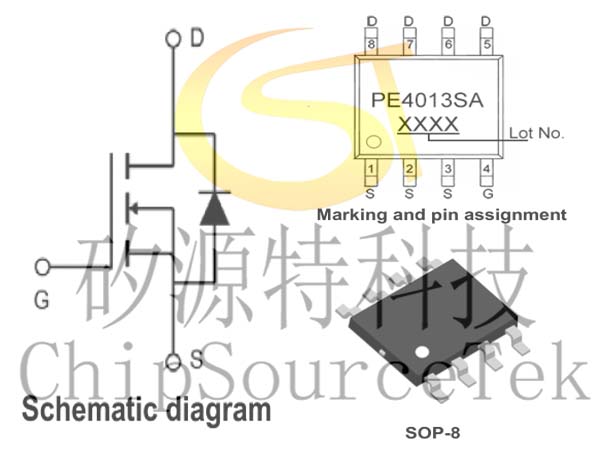

    PE4013SA典型应用及引脚图
