单节充电管理

CST4056B

    CST4056B is a complete CC/CV linear charger for single cell lithium-ion batteries. it is specifically designed to work within USB power Specifications.
    No external sense resistor is needed and no blocking diode is required due to the internal P-MOSFET architecture.Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature .The charge voltage is fixed at 4.2V,and the charge current can be programmed externally with a single resistor. The CST4056B automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
    When the input supply (wall adapter or USB supply) is removed the CST4056B automatically enters a low current state dropping the battery drain current to less than 2μA.The CST4056B can be put into shut down mode reducing the supply current to 55μA. Other features include Battery temperature monitor, under-voltage lockout, automatic recharge and two status pins to indicate charge and charge termination.
    CST4056B概述:
        CST4056B is a complete CC/CV linear charger for single cell lithium-ion batteries. it is specifically designed to work within USB power Specifications.
        No external sense resistor is needed and no blocking diode is required due to the internal P-MOSFET architecture.Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature .The charge voltage is fixed at 4.2V,and the charge current can be programmed externally with a single resistor. The CST4056B automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
        When the input supply (wall adapter or USB supply) is removed the CST4056B automatically enters a low current state dropping the battery drain current to less than 2μA.The CST4056B can be put into shut down mode reducing the supply current to 55μA. Other features include Battery temperature monitor, under-voltage lockout, automatic recharge and two status pins to indicate charge and charge termination.

    CST4056B特性:
    Protection of battery cell reverse connection
    Programmable charge current up to 1.1A
    No MOSFET sense resistor or blocking diode required
    Complete linear Charger for single Cell Lithium-Ion Batteries
    CC and CV operation with thermal regulation to maximize Rate without risk of overheating
    Preset 4.2V charge voltage with ±1% accuracy
    Automatic Recharge
    Two Status Indication for Charge status, no battery and battery failure indicators
    C/10 charge termination
    55μA supply current in shutdown
    2.9V trickle current charge threshold
    Soft-Start limits inrush current
    Battery Temperature Sensing
    Available in SOP-8 and ESOP-8 package.

    CST4056B应用:
    Cellular Telephones
    Mobile Power Supply
    Digital Still Cameras
    MP3 Players
    Bluetooth Applications
    Portable Devices
    USB Bus-Powered Chargers.

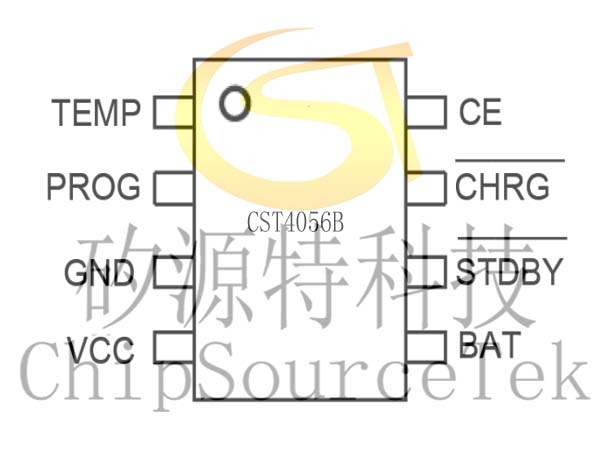

    CST4056B引脚示意图:


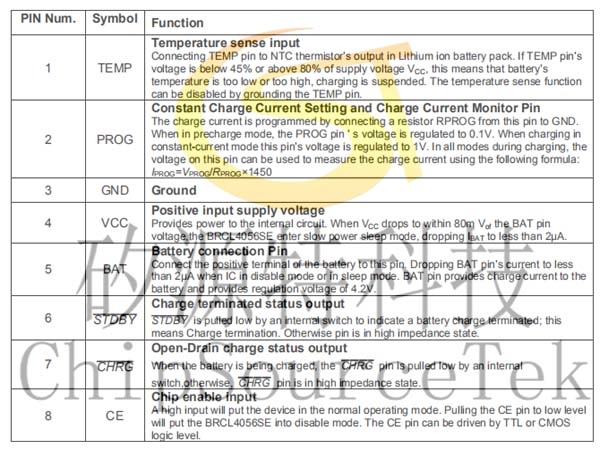

    CST4056B引脚说明:


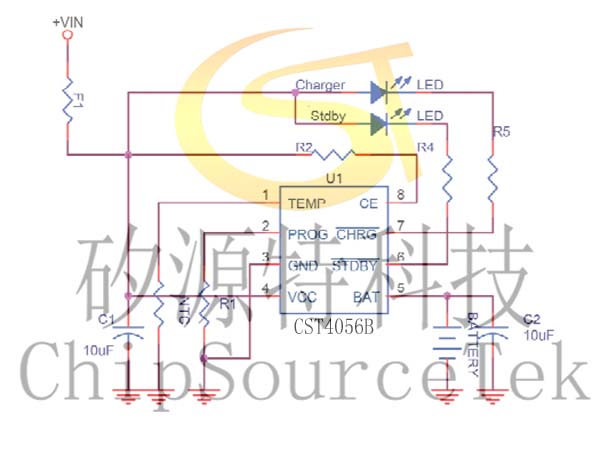

    CST4056B典型应用图:
