TR16F064

    TR16F064 is Flash-DSP, ROM: 64k * 16 RAM4K * 16 frequency 1/2/4/6/8/46/32MHz, working voltage 1.8-5.5V.
    TR16F064 is suitable for recording greeting cards, running lanterns, TF, storytelling machines, etc.
    TR16F064 offers four packaging options: SOP16, SOP28, SOP32, and LQFP32
    TR16F064概述:

    TR16F064是Flash-DSP, ROM:64k*16 RAM4K*16 频率1/2/4/6/8/46/32MHZ 工作电压1.8~5.5V,适用于录音贺卡,跑马灯,TF,故事机等,TR16F064提供SOP16,SOP28,SOP32,LQFP32四种封装.
        The TxP16ETM is a high performance 16-bit MCU, running up to 32MHz and provided with 64K FLASH and total 4K SRAM for high performance process of audio algorithm, power control and motor control.
        It is the new generation computational kernel for TRITAN Flash DSP series. It has initially aimed at the areas of controller and multimedia digital signal processing (DSP) application to demonstrate its profession.
        TxP16E furnish with fast MAC architecture, which allows multiplication+accumulation instructions to be issued with access memory simultaneously during one cycles. The TR16F064 is equipped with TxP16E and integrating input/output ports,Audio PWM, Timer and Low Voltage Reset...etc on a chip. Built-in high-speed 10-bit ADC can apply to AC power and motor control application easily.
        Furthermore, TR16F064 extend its external device connection capability such as Serial ROM/Flash. The internal memory capacity includes 64Kx16 program/data FLASH plus 4Kx16 working SRAM.
        TR16F064提供SOP16,SOP28,SOP32,LQFP32四种封装.

    TR16F064特性:
    ◆ High-performance RISC TxP16E CPU
        wide working frequency and voltage 1Mhz ~32Mhz@1.8Volt ~ 5.5Volt
        Operation frequency is programmable by Software
        Built-in 4096x16 SRAM
        Hybrid Instruction and data memory share with 64Kx16 Flash ROM
        Embedded PC Stack Level 24
    ◆ Rich DSP function
        Hardware Circular Buffer support
        MAC Computation power : 32MIPS (max.)
        Multi-Function Support: In MAC calculation, simultaneously access two operands from memory in one cycle
        Extend Dynamic Range: A 40-bit accumulator to ensure in 512 successive multiple+additions no overflows
    ◆ Embedded Flash 64Kx16
        Typical 100,000(TR16F064A) / 20,000(TR16F064B) erase/program cycles
        Greater than 10 years Data Retention
    ◆ Software-based audio processing technical
      Subband, ADPCM , CELP , Melody systhesis up to 20 channels ( Max )
    ◆ Support 20+2(ICE PAD can be as I/O) general purpose I/O port, can be configured to open-drain output
    ◆ Stereo 8~ 16-bit PWM can be adjustable
    ◆ 15 IRQ & 1 NMI
       NMI is non-mask interrupt, can interrupt IRQ immediately
       2 external interrupt
    ◆ 4 bit SPI Master Hardware support DMA transfer
    ◆ SPI Slaver
    ◆ Green Mode
    ◆ Timer1 , Timer2 with Pre-scale
    ◆ Low power instruction
    ◆ 24-Hours / One day Real-Time Clock
    ◆ ICE support Data RAM monitor for motor control debug
    ◆ Support Spread Spectrum clocking to reduce EMI.
    ◆ CPU Array
    ◆ Watch dog timer (WDT)
    ◆ Low voltage reset (LVR)
    ◆ Low dropout regulator(LDO) supply 3.3V/1.8V@20mA (voltage drop 0.1v )
    ◆ PB0, PB1, PB2, PB3 support two edge modes for wake-up function are rising and falling edge trigger.
    ◆ Comparators
    ◆ ADC 10bit / 285 kbps(@ACQT = 4*TAD) / 8 channel Temp. Sensor
    ◆ Microphone
    ◆ 1402 interface
    ◆ New instruction about ACALL, please refer to “TxP16E Instruction Set Reference”
    ◆ New instruction about 3OP, please refer to “TxP16E Instruction Set Reference”
    ◆ New instruction about Barrel Shifter, please refer to “TxP16E Instruction Set Reference”
    ◆ New instruction about Immediate Value CBL, please refer to “TxP16E Instruction Set Reference”
    ◆ Notice item about Flash DSP programming, please refer to “Flash DSP Programming Note(AN0060)”

    TR16F064提供SOP16,SOP28,SOP32,LQFP32四种封装.

    TR16F064应用:
     MCU Application
     Electronic Dictionary
     Handheld Games
     Electronic Learning Aid (ELA)
     Digital Photo Frame
     Electronics storybook
     Power / motor control

    TR16F064引脚分布:

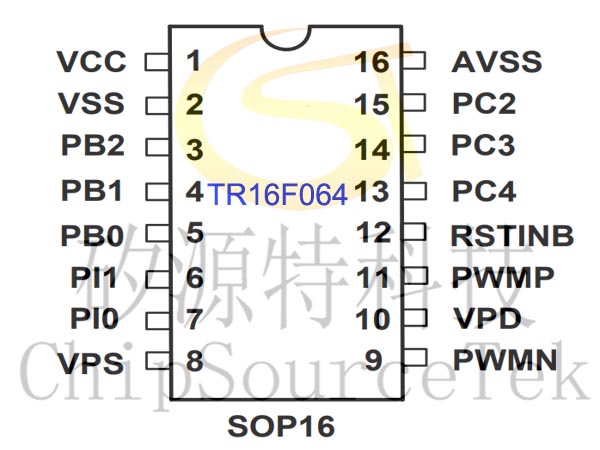

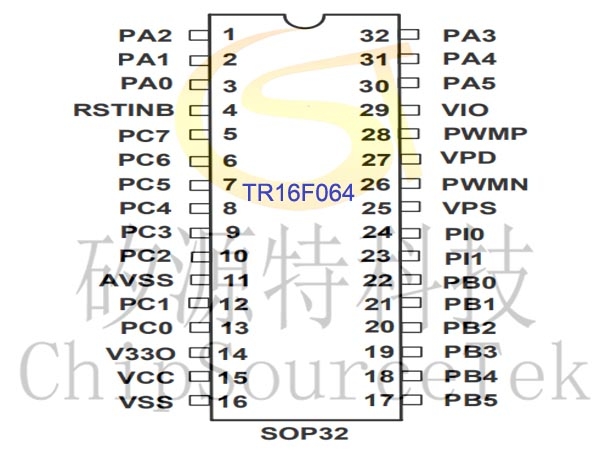

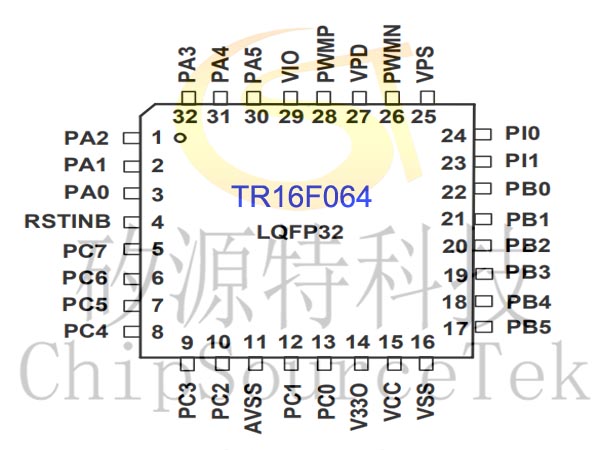

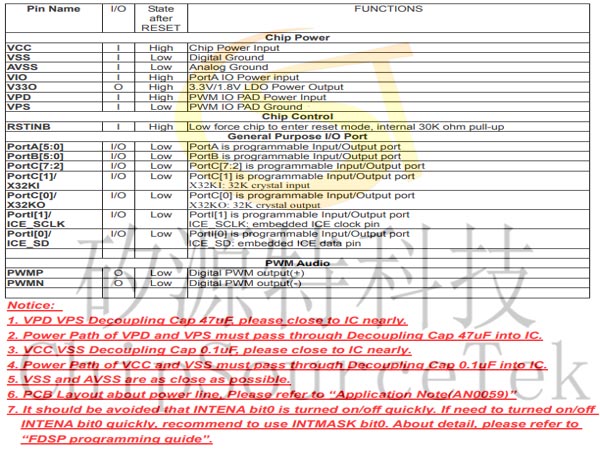

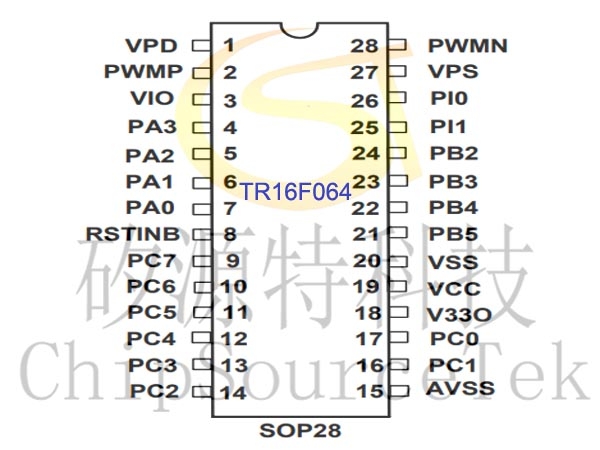

    TR16F064 引脚定义:

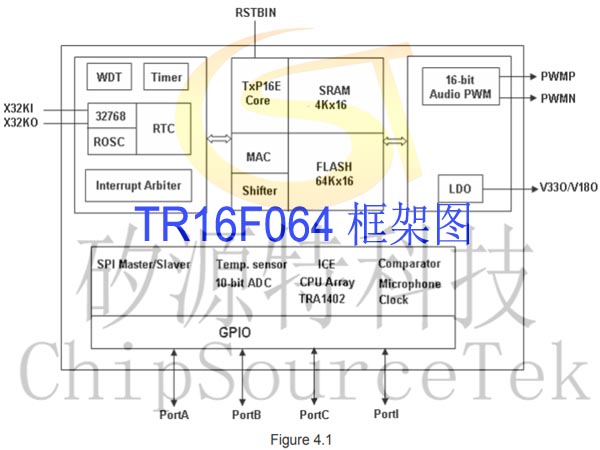

    TR16F064 框架图:
