Voice chip

TRSF4A0XXA/B

    TRSF4A0XXA/B series are 4bit micro-controller which could play 4 channel melody or 4 channel ADPCM with PWM direct drive circuit. PWM resolution is 12 bits. They includes a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 13.1072 (±3%) MHz. This chip operates over a wide voltage range of 1.8V~5.5V. It contains program ROM and data ROM inside. The maximum program ROM is 8K word and data ROM size is 32K ~ 124K byte depending on PROM density. The maximum working SRAM is ( 512+2 ) nibbles. It provides with total 4 software programmable I/O Ports.
    TRSF4A0XXA/B General Descriptions:
        TRSF4A0XXA/B series are 4bit micro-controller which could play 4 channel melody or 4 channel ADPCM with PWM direct drive circuit. PWM resolution is 12 bits. They includes a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 13.1072 (±3%) MHz. This chip operates over a wide voltage range of 1.8V~5.5V. It contains program ROM and data ROM inside. The maximum program ROM is 8K word and data ROM size is 32K ~ 124K byte depending on PROM density. The maximum working SRAM is ( 512+2 ) nibbles. It provides with total 4 software programmable I/O Ports.

    TRSF4A0XXA/B Features:
    *Operating voltage: 1.8V to 5.5V
    *Internal HROSC: 65.536 MHz, LRCOSC 32K Hz
       -MCU Operation frequency: 13.1072 MHz
    *Memory Size
       -Flash Program Memory capacity: 2KX12, 4KX12, 6KX12 or 8KX12 bits selected by option.
       -Flash Data ROM capacity: 32Kx8 ~ 124KX8 bits depending on PROM density.
       -SRAM size: 512X4 bits
       -User register: 2X4 bits
    *Wakeup function for power-down mode
       -HALT mode wakeup source: Port A, PWM and RTC wakeup can wake-up from HALT mode to NORMAL mode and executing wake-up sub-routine program.
    *4 input/output pins: Port A can be defined as input or output port bit by bit.
    *Three reset condition
       -Low voltage reset (LVR = 1.7V)
       -Power on reset
       -Watch dog timer overflow
    *One internal interrupt sources
       -PWM interrupt
    *WDT
       -Watch dog timer, can enabled/disabled by option
       -WDT period is 0.23 sec (Clock source by LRCOSC = 32.000K Hz ± 50%).
    *Audio output
       -Support 8/10/12 bits PWM
    *Support option set for pull down resistor 1M/(50K or 220K), low voltage reset…etc.
    *Oscillator fuse option ±3%, temperature & voltage compensation
    *Support security option (1 bit) to protect user code.
    *Low voltage detect ( LVD )
    *12 sign x 8 unsigned multiplication
    *Support indirect jump instruction JMPX, JMPPMA.
    *Support direct call instruction CALLX, CALLPMA.
    *Up to 8 level stacks for call sub-routing.
    *TOUCH function: 4 I/O
    *WKRTC
       -Real-time clock in halt mode, can enabled/disabled by option
       -wakeup period is 16/32/64/128 ms select by user code.
       -Only operating on Halt mode.
        ( Clock source by LRCOSC = 32.000K Hz± 50%)

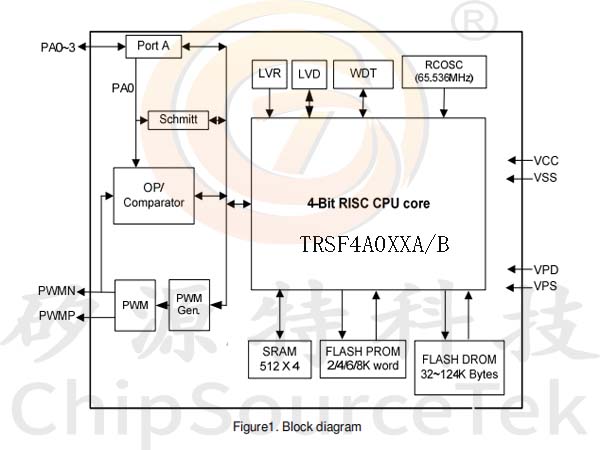

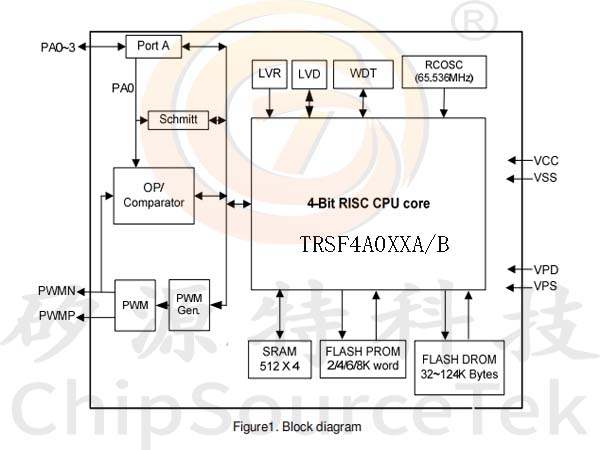

    TRSF4A0XXA/B Block Diagram:

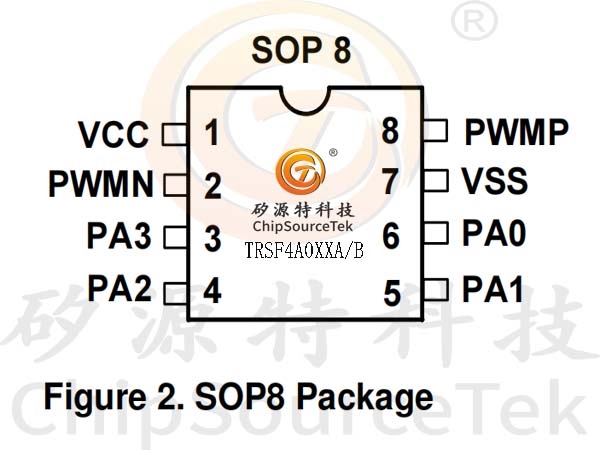

    TRSF4A0XXA/B Package:
    TRSF4A0XXA/B series provides SOP8

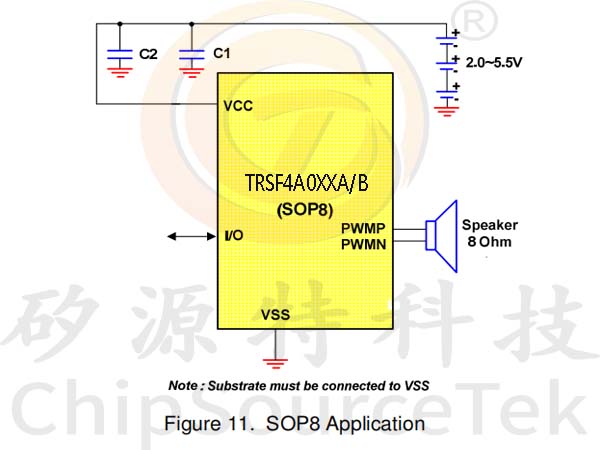

    TRSF4A0XXA/B The Application Circuit
    Notice:
    1. C1 : 10 uF ~ 100 uF(depends on applications), C2:0.1 uF (high ESD protection).
