Voice chip

TR16F064B/C

    The TxP16ETM is a high performance 16-bit MCU, running up to 32MHz and provided with 64K FLASH and total 4K SRAM for high performance process of audio algorithm, power control and motor control. It is the new generation computational kernel for Flash DSP series. It has initially aimed at the areas of controller and multimedia digital signal processing (DSP) application to demonstrate its profession. TxP16E furnish with fast MAC architecture, which allows multiplication+accumulation instructions to be issued with access memory simultaneously during one cycles. The TR16F064 is equipped with TxP16E and integrating input/output ports,Audio PWM, Timer and Low Voltage Reset...etc on a chip. Built-in high-speed 10-bit ADC can apply to DC power and motor control application easily.
    Furthermore, TR16F064 extend its external device connection capability such as Serial ROM/Flash. The internal memory capacity includes 64Kx16 program/data FLASH plus 4Kx16 working SRAM.
    TR16F064B/C General Description:
        The TxP16ETM is a high performance 16-bit MCU, running up to 32MHz and provided with 64K FLASH and total 4K SRAM for high performance process of audio algorithm, power control and motor control. It is the new generation computational kernel for Flash DSP series. It has initially aimed at the areas of controller and multimedia digital signal processing (DSP) application to demonstrate its profession. TxP16E furnish with fast MAC architecture, which allows multiplication+accumulation instructions to be issued with access memory simultaneously during one cycles. The TR16F064 is equipped with TxP16E and integrating input/output ports,Audio PWM, Timer and Low Voltage Reset...etc on a chip. Built-in high-speed 10-bit ADC can apply to DC power and motor control application easily.
        Furthermore, TR16F064 extend its external device connection capability such as Serial ROM/Flash. The internal memory capacity includes 64Kx16 program/data FLASH plus 4Kx16 working SRAM.

    TR16F064B/C Features:
      *High-performance RISC TxP16E CPU
        -wide working frequency and voltage 1Mhz ~32Mhz@1.8Volt ~ 5.5Volt
        -2.2 to 5.5 volt for flash erase, and program operations, LVR needs to be set in equal or greater than 2.0V.
        -Operation frequency is programmable by Software
        -Built-in 4096x16 SRAM
        -Hybrid Instruction and data memory share with 64Kx16 Flash ROM
        -Embedded PC Stack Level 24
      *Rich DSP function
        -Hardware Circular Buffer support
        -MAC Computation power : 32MIPS (max.)
        -Multi-Function Support: In MAC calculation, simultaneously access two operands from memory in one cycle
        -Extend Dynamic Range: A 40-bit accumulator to ensure in 512 successive multiple+additions no overflows
      *Embedded Flash 64Kx16
        -Typical 20,000 erase/program cycles
        -Greater than 10 years Data Retention
      *Software-based audio processing technical
        -Subband, ADPCM , CELP , Melody systhesis up to 20 channels ( Max )
      *Support 20+2(ICE PAD can be as I/O) general purpose I/O port, can be configured to open-drain output
      *Stereo 8~ 16-bit PWM can be adjustable
      *15 IRQ & 1 FIRQ
        -FIRQ can interrupt IRQ immediately
        -2 external interrupt
      *4 bit SPI Master Hardware support DMA transfer
      *SPI Slaver
      *Green Mode
      *Timer1 , Timer2 with Pre-scale
      *Low power instruction
      *24-Hours / One day Real-Time Clock
      *ICE support Data RAM monitor for motor control debug
      *Support Spread Spectrum clocking to reduce EMI.
      *Watch dog timer (WDT)
      *Low voltage reset (LVR)
      *Low dropout regulator(LDO) supply 3.3V/1.8V@20mA (voltage drop 0.1v )
      *PB0, PB1, PB2, PB3 support two edge modes for wake-up function are rising and falling edge trigger.
      *Comparators
      *ADC 10bit / 285 kbps(@ACQT = 4*TAD) / 8 channel
      *Temp. Sensor
      *Microphone
      *1402 interface
      *New instruction about ACALL, please refer to “TxP16E Instruction Set Reference”
      *New instruction about 3OP, please refer to “TxP16E Instruction Set Reference”
      *New instruction about Barrel Shifter, please refer to “TxP16E Instruction Set Reference”
      *New instruction about Immediate Value CBL, please refer to “TxP16E Instruction Set Reference”
      *Notice item about Flash DSP programming, please refer to “Flash DSP Programming Note(AN0060)”

    TR16F064B/C Application Field:
      *MCU Application
      *Electronic Dictionary
      *Handheld Games
      *Electronic Learning Aid (ELA)
      *Digital Photo Frame
       *Electronics storybook
      *Power / motor control

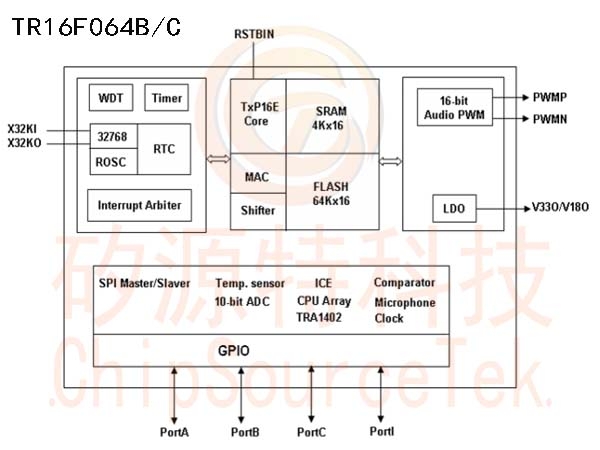

    TR16F064B/C Block Diagram:

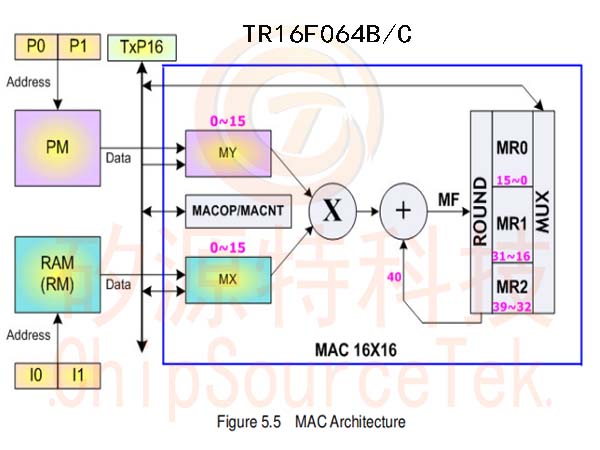

    TR16F064B/C MAC Architecture:

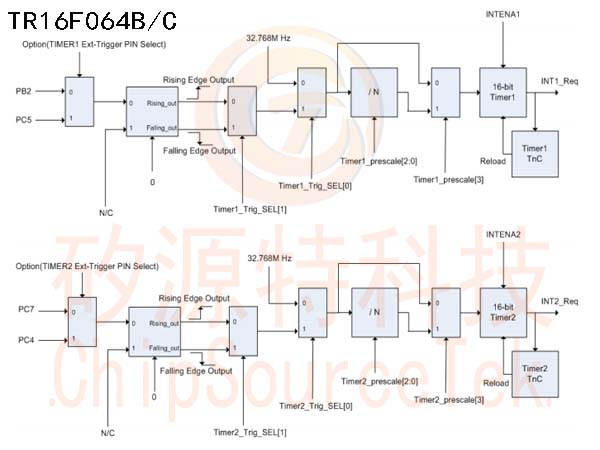

    TR16F064B/C Timer1 & Timer2 Structure:

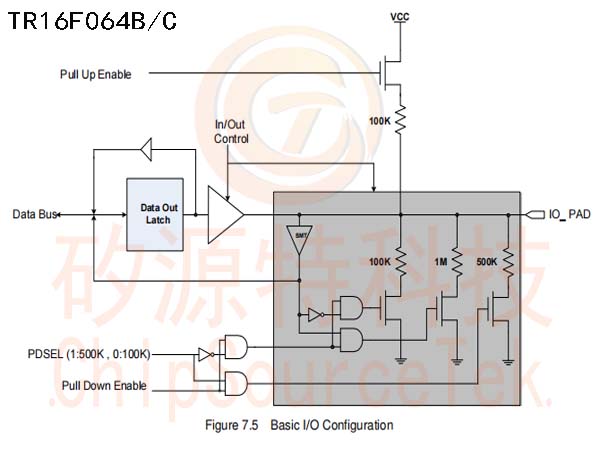

    TR16F064B/C Basic I/O Configuration:

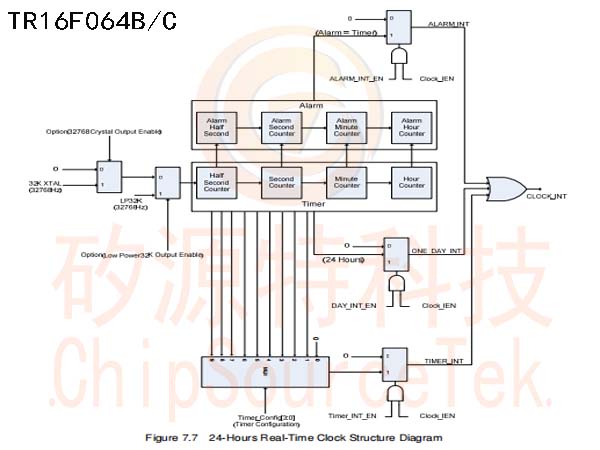

    TR16F064B/C 24-Hours Real-Time Clock Structure Diagram:

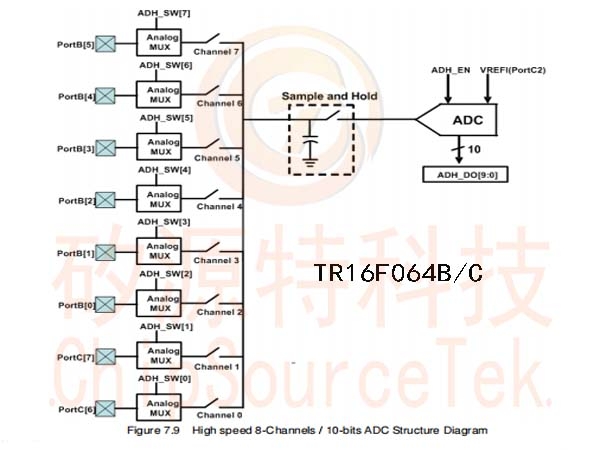

    TR16F064B/C High speed 8-Channels / 10-bits ADC Structure Diagram:

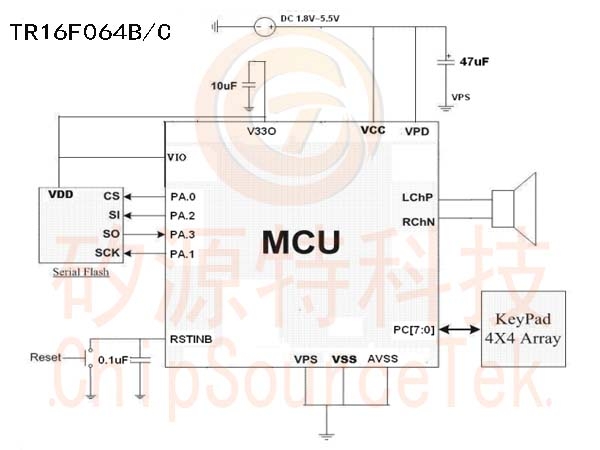

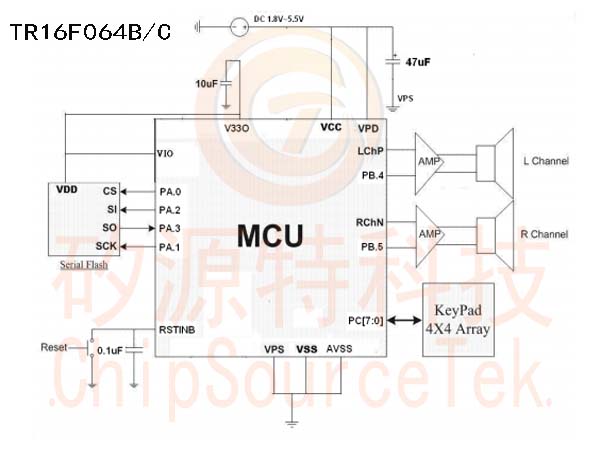

    TR16F064B/C Application Circuit:

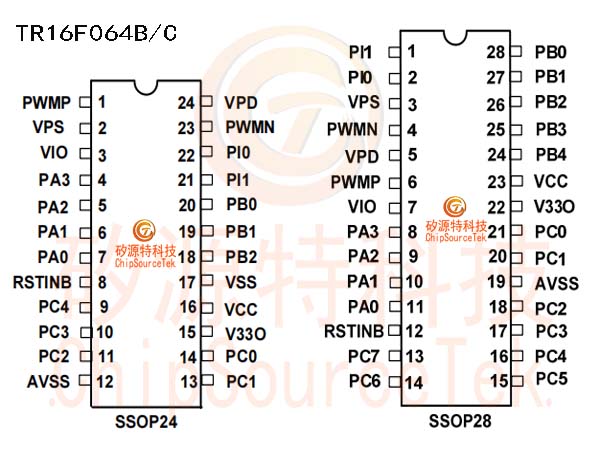

    TR16F064B/C Package:
    SOP28/SOP32/SOP16/LQFP32/SSOP24/SSOP28/QFN28/QFN32
