Voice chip

TRSP&M5341A,TRSM5271A

    TRSP&M5341A,TRSM5271A series are 4-bits micro-controller which could play 4 channel melody or 4 channel ADPCM with PWM direct drive circuit. PWM resolution is 8/10/12 bits. They includes a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 8.192 (±3%) MHz.
    This chip operates over a wide voltage range of 2.0V~5.5V. It contains program ROM (PROM) and data ROM (DROM) inside. The maximum program ROM is 16K words and maximum data ROM size is 1024K byte. The maximum working SRAM is (256+2) nibbles. It is provided with total 16 software programmable I/O ports and 4 output only ports.
    TRSP&M5341A,TRSM5271A General Descriptions:
        TRSP&M5341A,TRSM5271A series are 4-bits micro-controller which could play 4 channel melody or 4 channel ADPCM with PWM direct drive circuit. PWM resolution is 8/10/12 bits. They includes a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 8.192 (±3%) MHz.
        This chip operates over a wide voltage range of 2.0V~5.5V. It contains program ROM (PROM) and data ROM (DROM) inside. The maximum program ROM is 16K words and maximum data ROM size is 1024K byte. The maximum working SRAM is (256+2) nibbles. It is provided with total 16 software programmable I/O ports and 4 output only ports.

    TRSP&M5341A,TRSM5271A Features:
      Operating voltage: 2.0V to 5.5V
      MCU Operation frequency: 8.192MHz
      Memory Size
        -Program ROM size: 16K*12-bits OTP type
        -Data ROM size: 1024K*8-bits OTP type (Maximum)
        -SRAM size: 256*4 bits
        -User register: 2*4 bits
      Wakeup function for power-down mode:
        -HALT mode wakeup source: Port A, Port B, Port D and Port E can wake-up from HALT mode to NORMAL mode and executing wake-up sub-routine program.
      12 input/output pins: Port A, Port B and Port D can be defined as input or output port bit by bit.
      4 output only ports: Port C.
      4 input/output or 4 input only ports “Port E” defined by option: If input only ports are employed, Port E defined as input only ports. If input/output ports are selected, Port E defined as input/output ports bit by bit.
    Four reset condition:
        -Low voltage reset. (LVR=2.0V)
        -Power on reset.
        -External reset pin. (active low)
        -Watch dog timer overflow.
      One internal interrupt sources:
        -PWM interrupt.
      WDT
        -Watch dog timer, can enabled/disabled by option.
        -WDT period is 256*256*16/Fsys. (WDT period is 0.13 sec for system clock=8.192MHz)
      Audio output:
        -Support PWM or DAC mode by option.
        -Support 8/10/12 bits.
      Support option set for pull down resistor 1M, 50K or 220K Ohm, reset pin (PB3 or PC3), low voltage reset…etc.
      Oscillator fuse option ±3%, temperature & voltage compensation.
      Support security option (1 bit) for read inhibition.
      Support 16-levels LVD function.

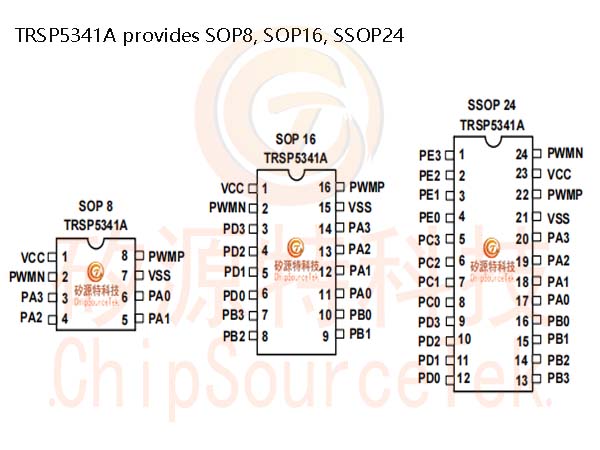

    TRSP&M5341A,TRSM5271A provides SOP8, SOP16, SSOP24 Package:

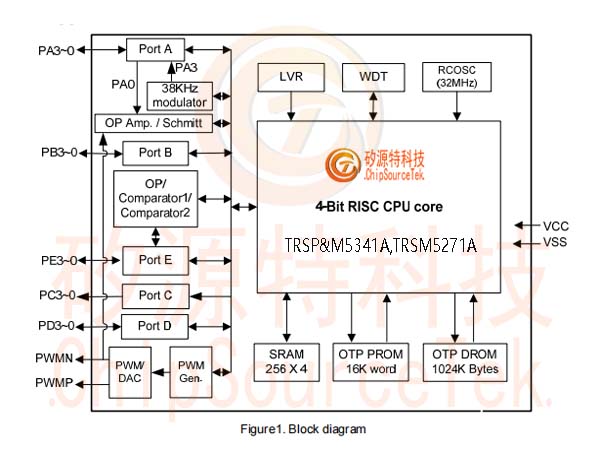

    TRSP&M5341A,TRSM5271A Block Diagram:

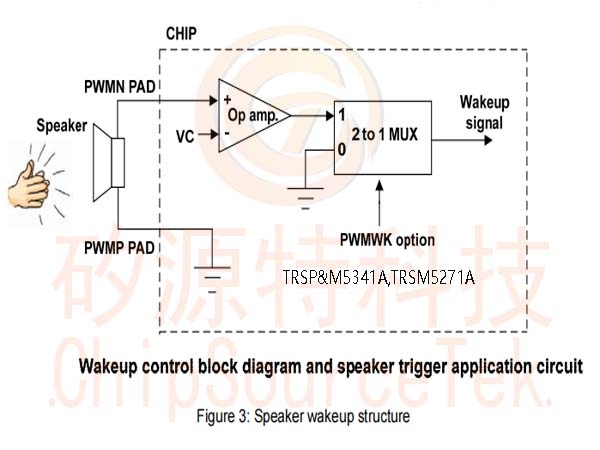

    TRSP&M5341A,TRSM5271A Speaker wakeup structure:

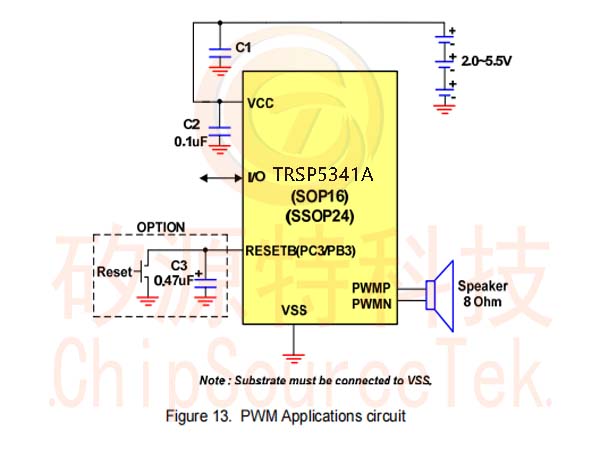

    TRSP&M5341A,TRSM5271A The Application Circuit:


    Notice:
    1. Regarding recording or remote car applications, please reference application note on web site.
    2. C1 : 47 uF ~ 100 uF(depends on applications), C2:0.1 uF

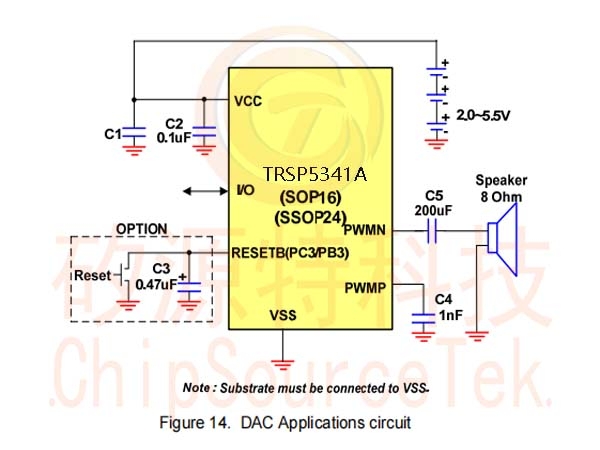

    3. DAC Applications circuit not support PWM wakeup function.
    4. DAC Applications, please reference application note on web site.
