Voice chip

CST5080A

    CST5080A series are 4-bits micro-controller which could play 4 channel melody or 4 channel ADPCM with PWM direct drive circuit. PWM resolution is 8/10/12 bits. They includes a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 8.192 (±3%) MHz. This chip operates over a wide voltage range of 2.0V~5.5V. It contains program ROM (PROM) and data ROM (DROM) inside.The program ROM is 8K words and data ROM size is 240K byte. The maximum working SRAM is (128+2) nibbles. It is provided with total 12 software programmable I/O Ports.
    CST5080A General Descriptions:
        CST5080A series are 4-bits micro-controller which could play 4 channel melody or 4 channel ADPCM with PWM direct drive circuit. PWM resolution is 8/10/12 bits. They includes a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 8.192 (±3%) MHz. This chip operates over a wide voltage range of 2.0V~5.5V. It contains program ROM (PROM) and data ROM (DROM) inside.The program ROM is 8K words and data ROM size is 240K byte. The maximum working SRAM is (128+2) nibbles. It is provided with total 12 software programmable I/O Ports.

    CST5080A Features:
    Operating voltage: 2.0V to 5.5V
    MCU Operation frequency: 8.192MHz
    Memory Size
        Program ROM size: 8K*12-bits OTP type
        Data ROM size: 240K*8-bits OTP type
        SRAM size: 128*4 bits
        User register: 2*4 bits
    Wakeup function for power-down mode:
        HALT mode wakeup source: Port A, Port B and Port E/CE can wake-up from HALT mode to NORMAL mode and executing wake-up sub-routine program.
    8 input/output pins: Port A and Port B can be defined as input or output port bit by bit.
    4 input/output ports or 4 input only ports or 4 output only ports “Port CE/E/C” defined by option:
        If input only ports are employed, Port E defined as input only ports.
        If output only ports are employed, Port C defined as output only ports.
        If input/output ports are selected, Port CE defined as input/output ports bit by bit.
    Four reset condition:
        Low voltage reset. (LVR = 2.0V)
        Power on reset.
        External reset pin. (active low)
        Watch dog timer overflow.
    One internal interrupt sources:
        PWM interrupt.
    WDT
        Watch dog timer, can enabled/disabled by option.
        WDT period is 256*256*16/Fsys. (WDT period is 0.13 sec for system clock=8.192MHz)
    Audio output:
        Support PWM or DAC mode by option.
        Support 8/10/12 bits.
    Support option set for pull down resistor 1M, 50K or 220K Ohm, reset pin (PB3 or PC3), low voltage reset…etc.
    Oscillator fuse option ±3%, temperature & voltage compensation.
    Support security option (1 bit) for read inhibition.
    Support 16-levels LVD function.

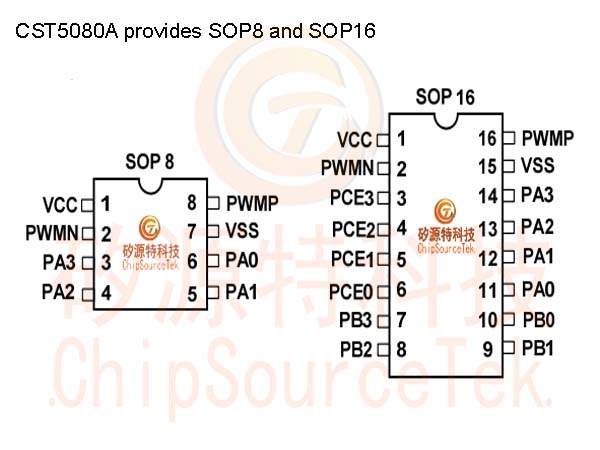

    CST5080A provides SOP8 and SOP16 package:

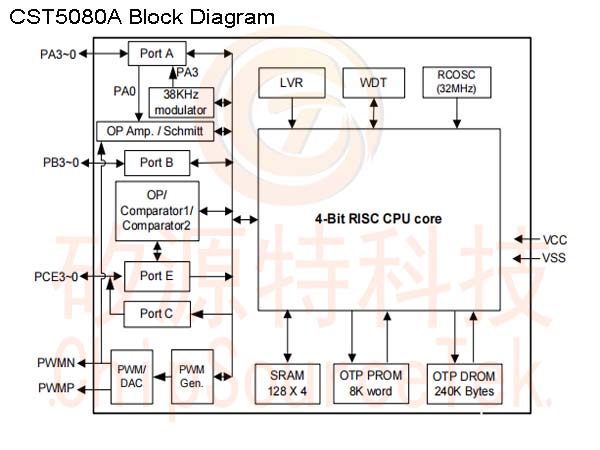

    CST5080A Block Diagram:

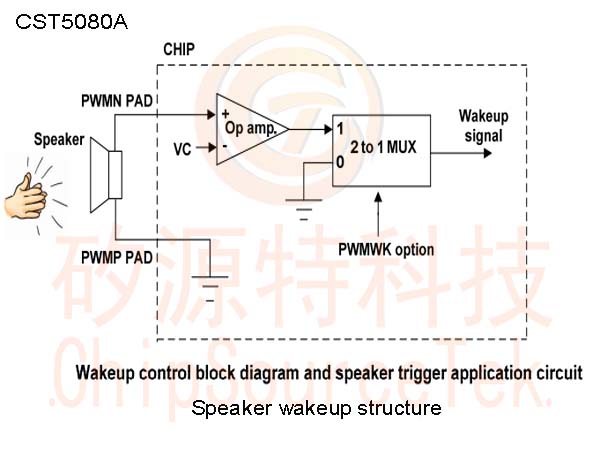

    CST5080A Speaker wakeup structure:

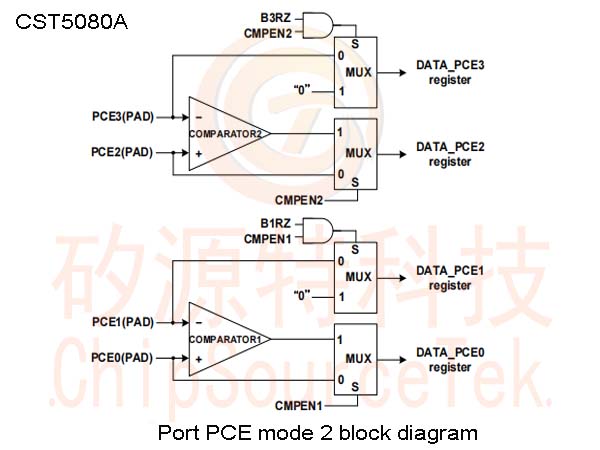

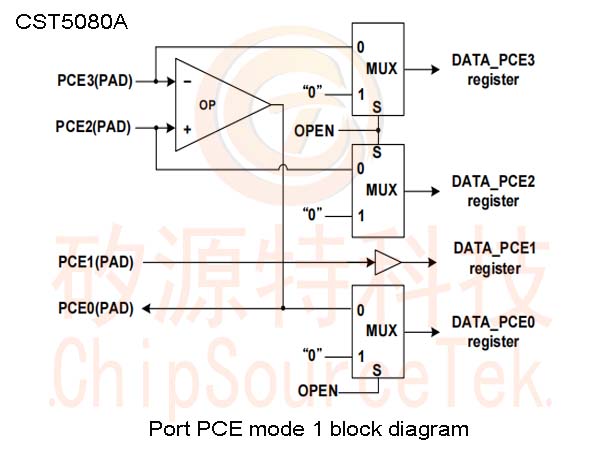

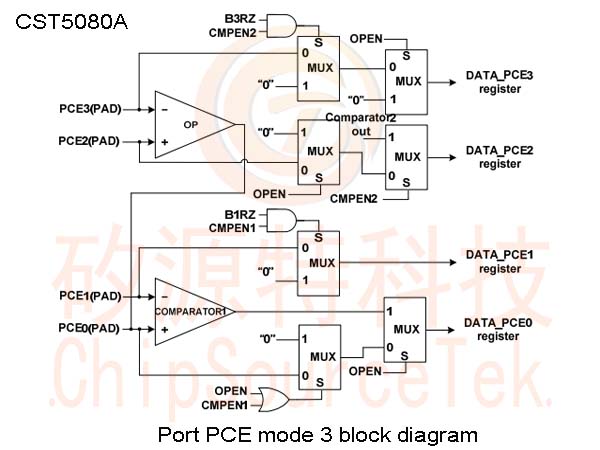

    CST5080A Port PCE mode block diagram:

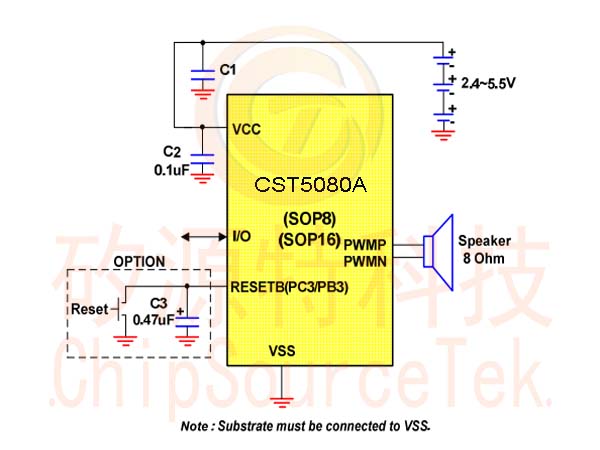

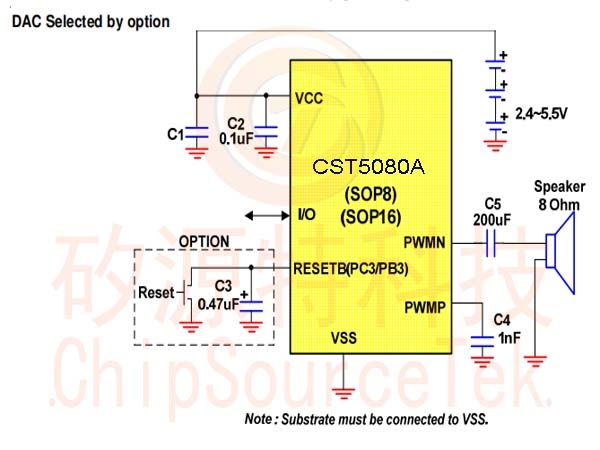

    CST5080A The Application Circuit:
