Touch MCU

CSK05TN

    The CSK05TN are single-chip self-capacitance touch controller IC with a built-in high-speed MCU.They achieved extremely high sensitivity and low power consumption by its rapid self-capacitancesensing technology.
    CSK05TN General Description:
        The CSK05TN are single-chip self-capacitance touch controller IC with a built-in high-speed MCU.They achieved extremely high sensitivity and low power consumption by its rapid self-capacitancesensing technology.

    CSK05TN Features:
    Built-in high-performance DSP module
      Online Program
      Built-in watch dog
      Supports multiple keys
    Capacitance key supporting
      Up to 5 sensing channels
      Support floating/pull-down mode
      Auto calibrating parameters
    High efficient power management
      Active Mode: 2.0mA
      Monitor Mode: 9uA
      Touch sensing capacitance support : 5pF~50pF
    Communication interface
      I2C Master / Slave mode, support up to 400KHz
      Support 1.8V/3.3V Logic level
    Power supply
      Single Power supply : 2.8V ~ 3.6V ripple <= 50mv
    Package:QFNWB3*3-20L(P0.4T0.55)

    CSK05TN Typical Applications:
    Consumer electronics, electronic toys.

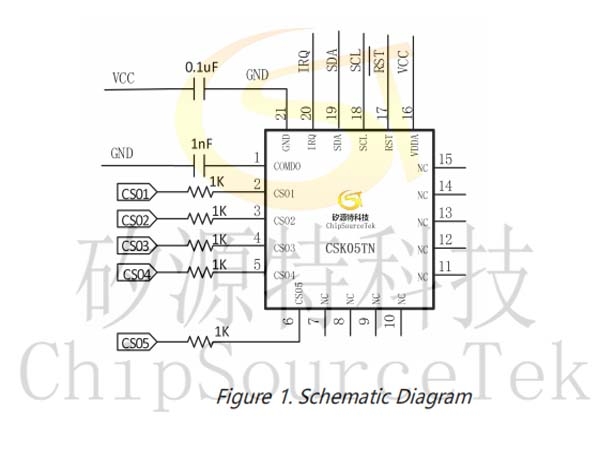

    CSK05TN Schematic Diagram:
    Note:
        CMOD capacitor requirements: NPO/COG capacitor, 10% accuracy at least.
        CMOD capacitor range is 1nF-5.6nF.1nF is selected in most cases. Optimum value depends on the capacitor to be measured.
        CMOD filter capacitor must be placed as close to corresponding pin as possible, keep line as short as possible.

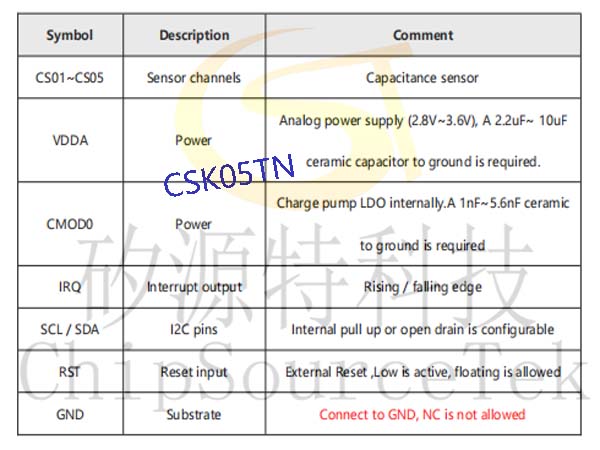

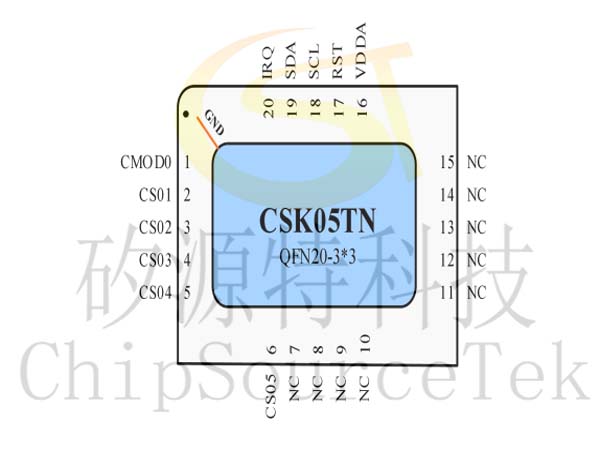

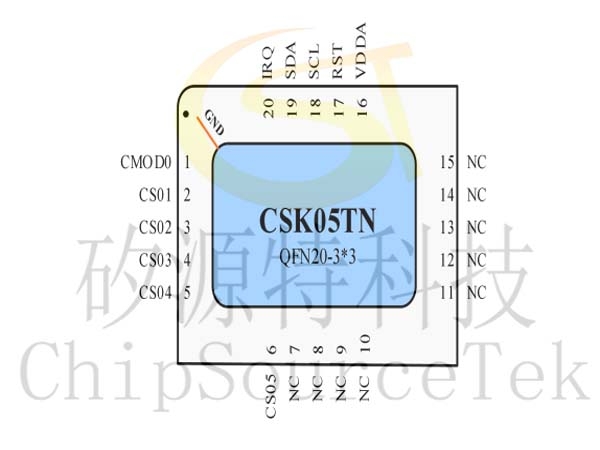

    CSK05TN Pin Map and Functions:

    CSK05TN Ordering Information:

    Part number
    Package type
    Surface printing
    MOQ
    CSK05TN
    QFNWB3*3-20L(P0.4T0.55)
    CSK05TN
    XXXXX
    take-up package(5000)

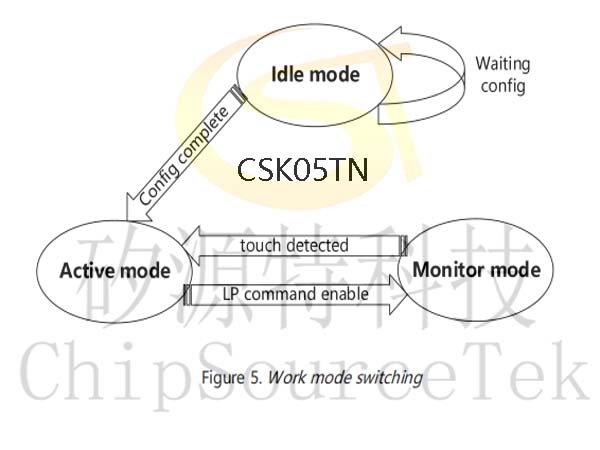

    CSK05TN Work modes:
