Touch MCU

AXS510K5

    AXS510K5是一款高性能的自电容器触摸按键控制器,支持各种自电容器按键模式,具有优良的信噪比,在保持超低功耗的同时实现高可靠性。
    AXS510K5 is a high-performance self-capacitor touch key controller that supports various self-capacitor key patterns and has excellent signal-to-noise ratio to achieve high reliability while maintaining ultra-low power consumption.
    AXS510K5概述/Description:
        AXS510K5是一款高性能的自电容器触摸按键控制器,支持各种自电容器按键模式,具有优良的信噪比,在保持超低功耗的同时实现高可靠性。
        AXS510K5 is a high-performance self-capacitor touch key controller that supports various self-capacitor key patterns and has excellent signal-to-noise ratio to achieve high reliability while maintaining ultra-low power consumption.

    AXS510K5特性/Features:
    Key features
      Highly sensitive self-capacitance detection technology
      Supported key number up to 5
      Support three work modes: Normal mode, Idle mode, Sleep mode
      The sleep mode power consumption is as low as 5uA, the Idle mode consumption is as low as 100uA,and the normal mode power consumption is as low as 1.2mA
      Auto calibration
      Supports I2C interfaces
      Support online programming
      Single power supply 2.7V to 5.5V
      Package:QFN20 3x3x0.55mm
      The AXS510K5 typical applications are listed as follows:
        -Digital products
        -Household appliances, small appliances
        -Intelligent electronic toy
        -Instead of a switch

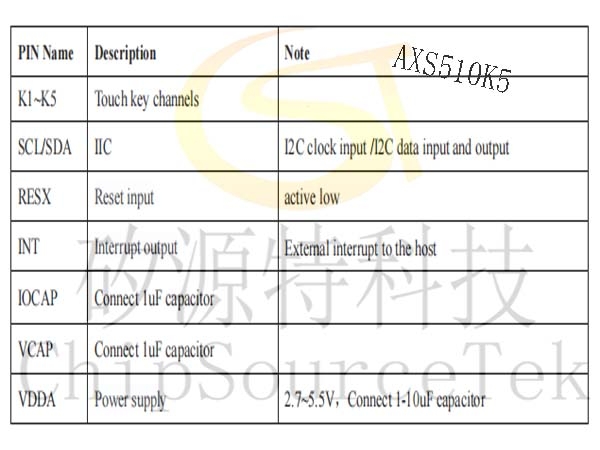

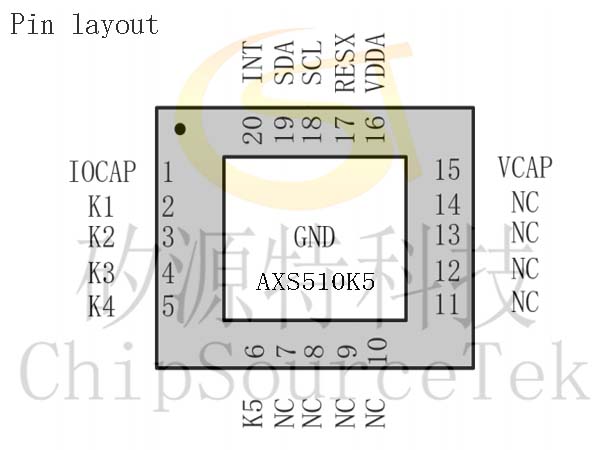

    AXS510K5引脚布局/Pin layout:

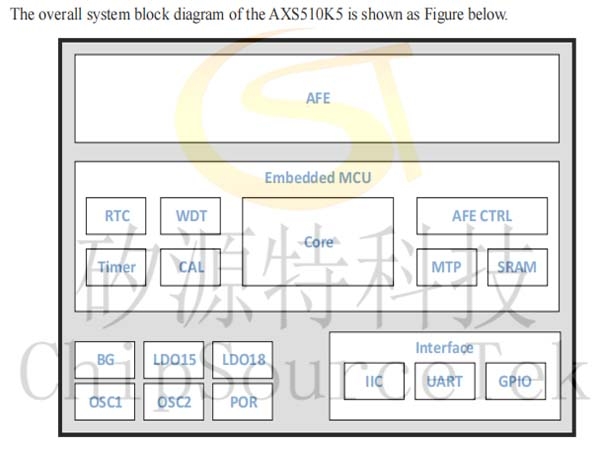

    AXS510K5结构框图/Block diagram:

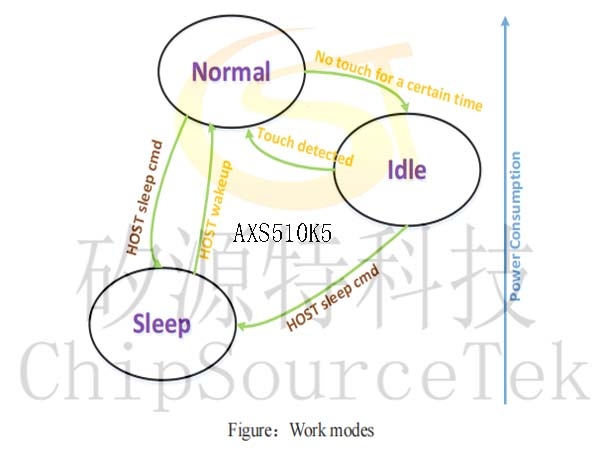

    AXS510K5工作模式/Work modes:

    AXS510K5订购信息/Ordering information:
    Product
    Series
    Package
    Type
    Packing Method
    Ordering Number
    Minimum Order
    Quantity
    AXS510K5
    20-Pin 3x3x0.55mm
    QFN
    TR
    AXS510K5
    5000
    Please submit your basic information and send an email Sales@ChipSourceTek.com , or call us at 13823761625 (the same number as wechat), and we will contact you as soon as possible!

    *

    *

    *

    *
