CST70P03 Description：
CST70P03 is a P-channel fast switching Mosfet with BVDSS=-30V, RDSON=7.5mΩ, ID=-65A. Provide TO252 packaging.
The CST70P03 is the highest performance trench P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
The CST70P03 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST70P03 Feature：
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST70P03 Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
-30V |
7.5mΩ |
-65A |

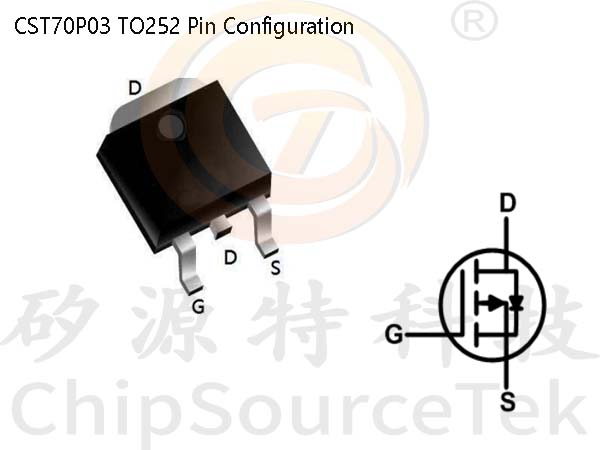

CST70P03 TO252 Pin Configuration：

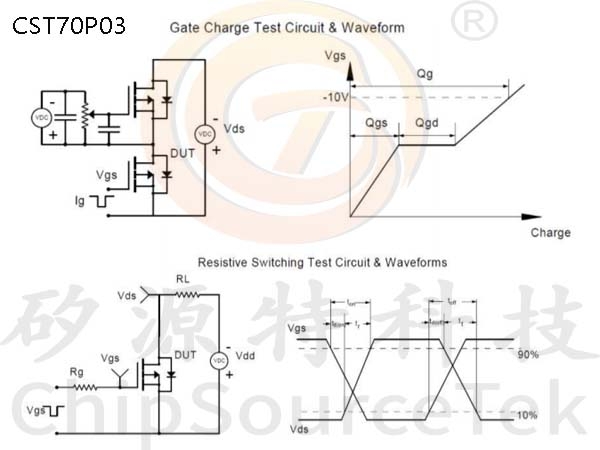

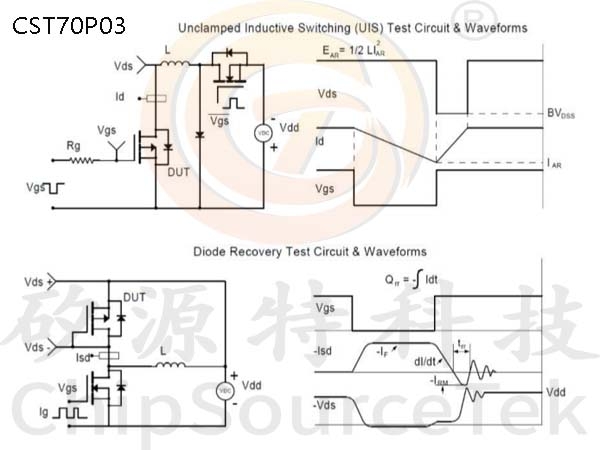

CST70P03 Test Circuit：

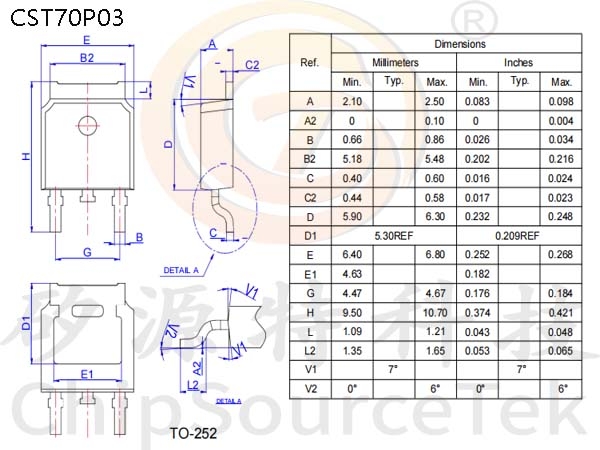

CST70P03 Package Mechanical Data TO-252：

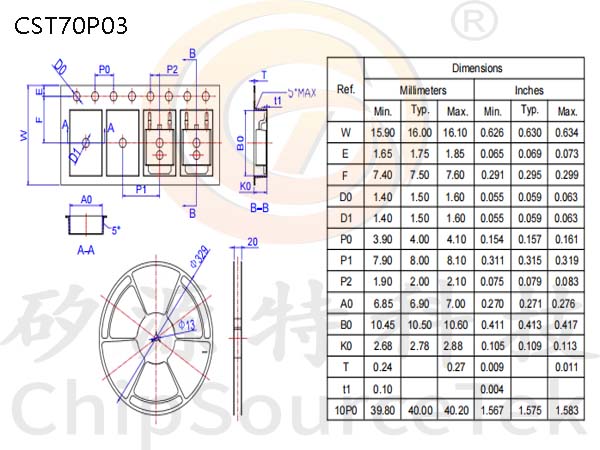

CST70P03 Reel Spectification-TO-252-4R：
