S-P-MOS

CST60P03 TO252

    CST60P03 is a fast switching Mosfet for P-channel with BVDSS=-30V, RDSON=7.5mΩ, ID=-60A. Provide TO252 packaging.
    The CST60P03 is the highest performance trench P-ch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
    The CST60P03 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
    CST60P03 Description:
        CST60P03 is a fast switching Mosfet for P-channel with BVDSS=-30V, RDSON=7.5mΩ, ID=-60A. Provide TO252 packaging.
        The CST60P03 is the highest performance trench P-ch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
        The CST60P03 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.

    CST60P03 Feature:
    100% EAS Guaranteed
    Green Device Available
    Super Low Gate Charge
    Excellent CdV/dt effect decline
    Advanced high cell density Trench technology

    CST60P03 Product Summary:
    BVDSS
    RDSON
    ID

    -30V

    7.5

    -60A

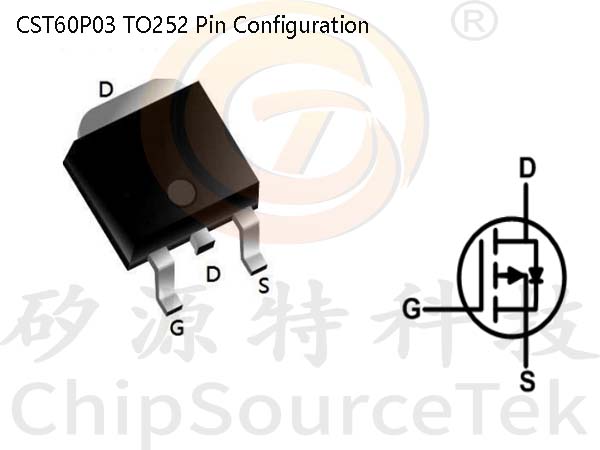

    CST60P03 TO252 Pin Configuration:

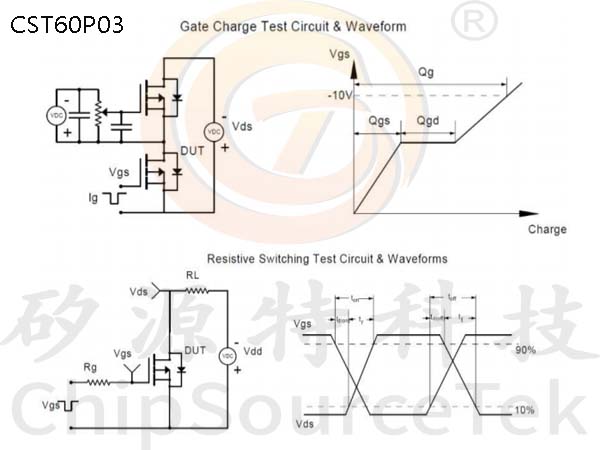

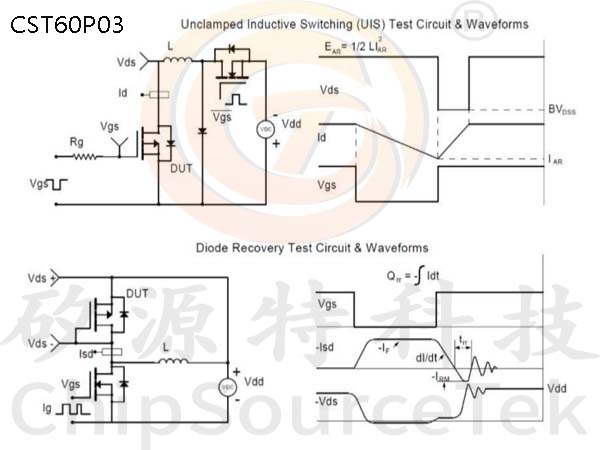

    CST60P03 Test Circuit:

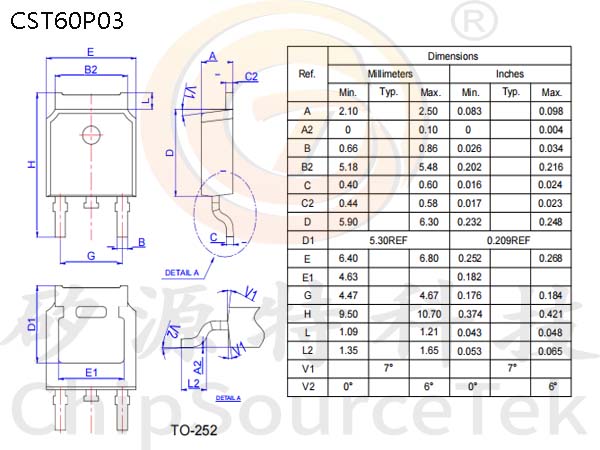

    CST60P03 Package Mechanical Data TO-252:

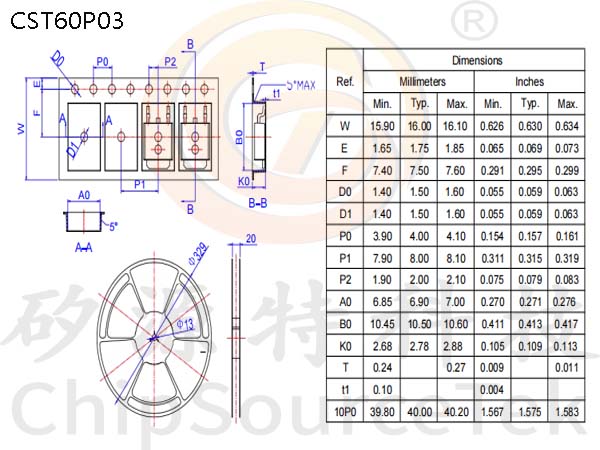

    CST60P03 Reel Spectification-TO-252-4R:
    Please submit your basic information and send an email Sales@ChipSourceTek.com , or call us at 13823761625 (the same number as wechat), and we will contact you as soon as possible!

    *

    *

    *

    *
