CST2301V Description:
CST2301V is a P-channel fast switching Mosfet with BVDSS=-20V, RDSON=95mΩ, ID=-2.3A. Provide SOT23 packaging.
The CST2301V is the high cell density trenched P-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST2301V meet the RoHS and Green Product requirement with full function reliability approved.
CST2301V Feature:
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST2301V Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-20V |
95mΩ |
-2.3A |

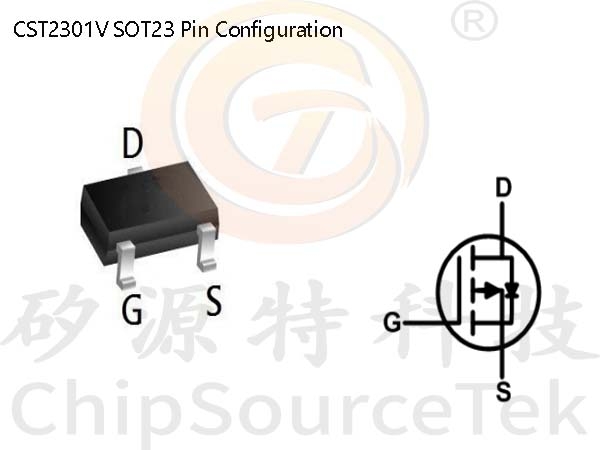

CST2301V SOT23 Pin Configuration:

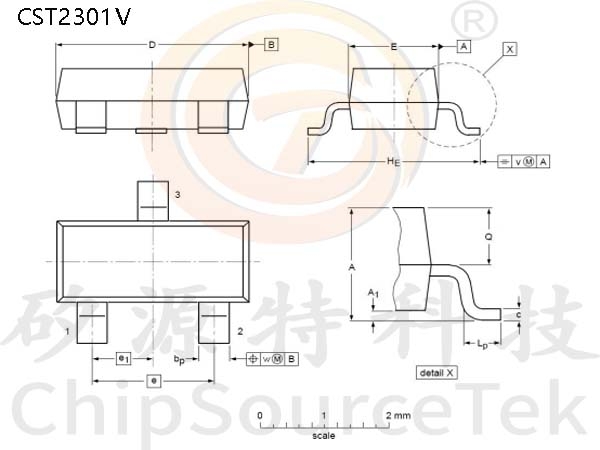

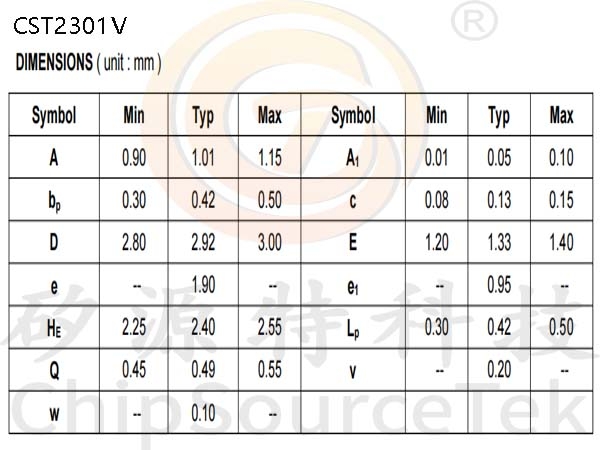

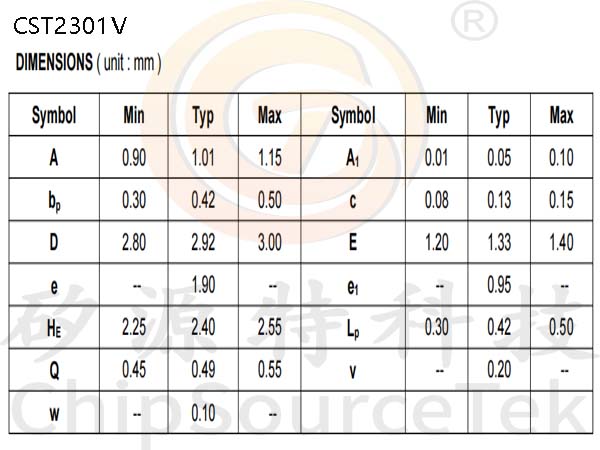

CST2301V Package Mechanical Data-SOT-23:
