S-P-MOS

CST2301A SOT23

    CST2301A is a P-channel fast switching Mosfet with BVDSS=-20V, RDSON=55mΩ, ID=-3.3A. Provide SOT23 packaging.
    The CST2301A is the high cell density trenched P-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
    The CST2301A meet the RoHS and Green Product requirement with full function reliability approved.
    CST2301A Description:
        CST2301A is a P-channel fast switching Mosfet with BVDSS=-20V, RDSON=55mΩ, ID=-3.3A. Provide SOT23 packaging.
        The CST2301A is the high cell density trenched P-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
        The CST2301A meet the RoHS and Green Product requirement with full function reliability approved.

    CST2301A Feature:
    Green Device Available
    Super Low Gate Charge
    Excellent CdV/dt effect decline
    Advanced high cell density Trench technology

    CST2301A Product Summary:
    BVDSS
    RDSON
    ID

    -20V

    55

    -3.3A

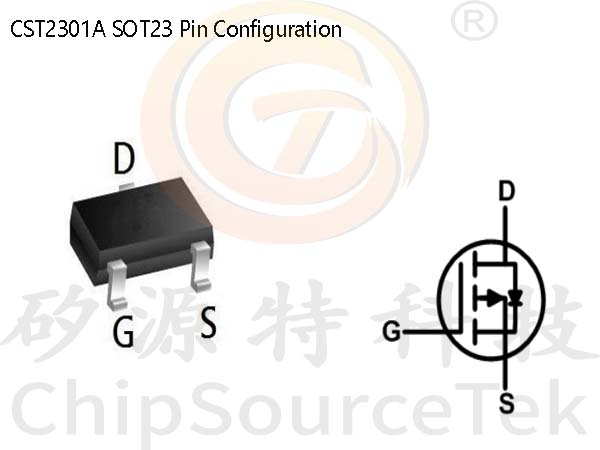

    CST2301A SOT23 Pin Configuration:

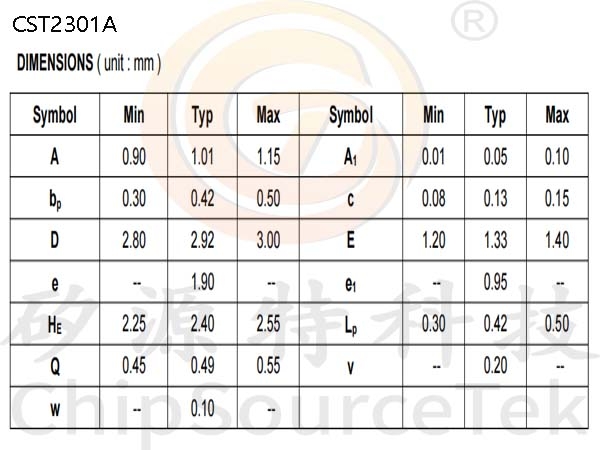

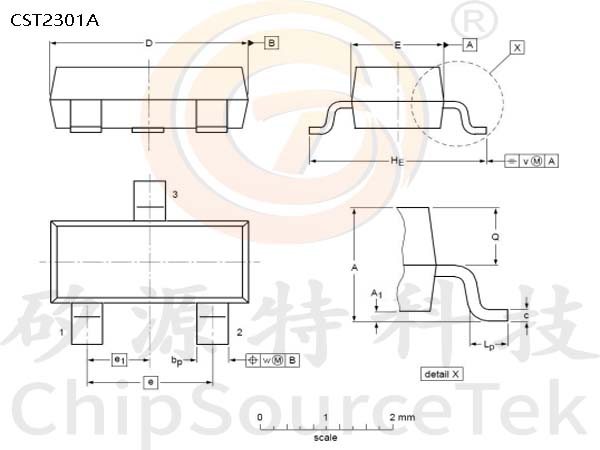

    CST2301A Package Mechanical Data-SOT-23:
