CST2310 Description:
CST2310 is an N-channel fast switching Mosfet with BVDSS=60V, RDSON=75mΩ, and ID=3A. Provide SOT23 packaging.
The CST2310 is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST2310 meet the RoHS and Green Product requirement with full function reliability approved.
CST2310 Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST2310 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
60V |
75mΩ |
3A |

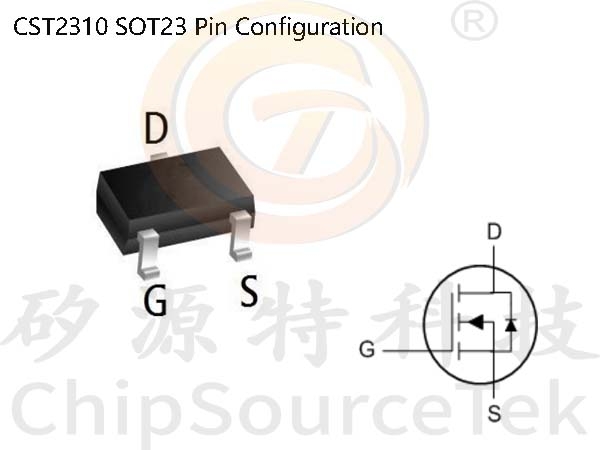

CST2310 SOT23 Pin Configuration:

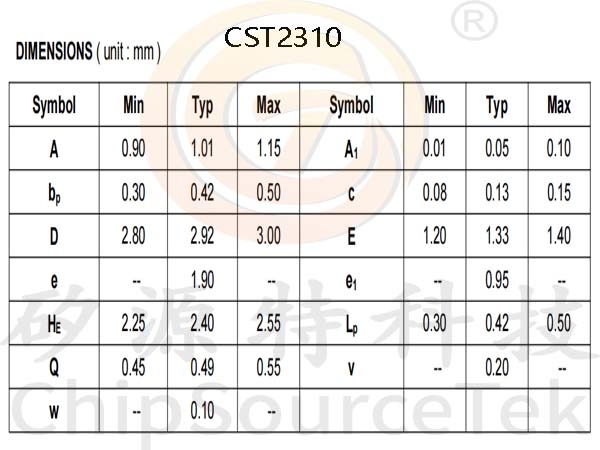

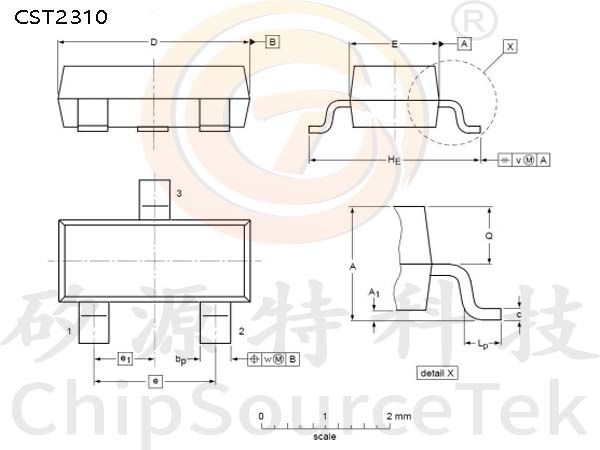

CST2310 Package Mechanical Data-SOT-23:
