CST2300 Description:
CST2300 is an N-channel fast switching Mosfet with BVDSS=20V, RDSON=21mΩ, and ID=5.2A. Provide SOT23 packaging.
The CST2300 is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST2300 meet the RoHS and Green Product requirement with full function reliability approved.
CST2300 Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST2300 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
20V |
21mΩ |
5.2A |
CST2300 SOT23 Pin Configuration:

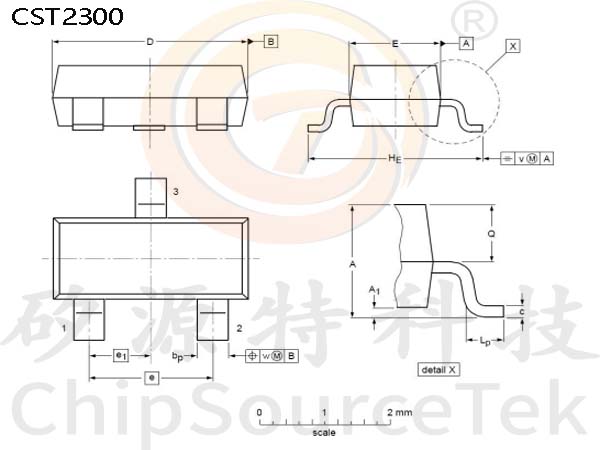

CST2300 Package Mechanical Data-SOT-23:
