CST150N03F Description:
CST150N03F is an N-Ch fast switching Mosfet with BVDSS=30V, RDSON=1.5m Ω, and ID=150A.Provide PDFN5060-8L packaging.
The CST150N03F is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST150N03F meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST150N03F Feature:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST150N03F Product Summary:
BVDSS
|
RDSON
|
ID
|
30V |
1.5mΩ |
150A |

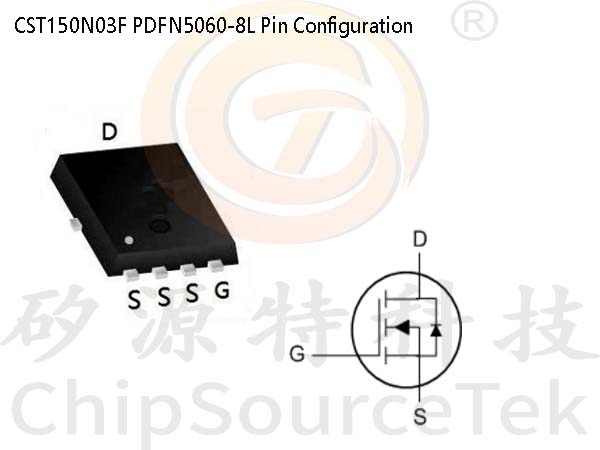

CST150N03F PDFN5060-8L Pin Configuration:
![](/web/userfiles/CST150N03F YJT.jpg)

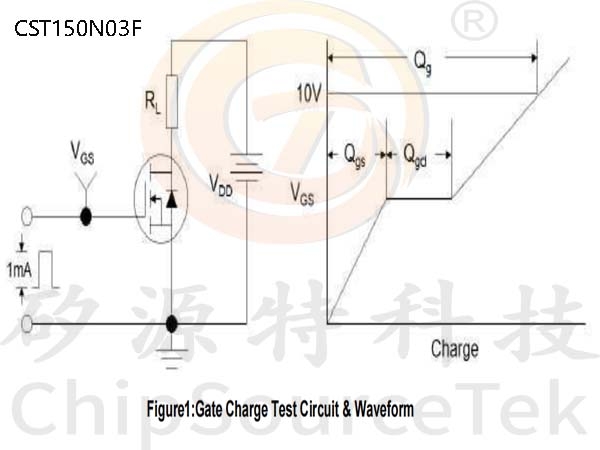

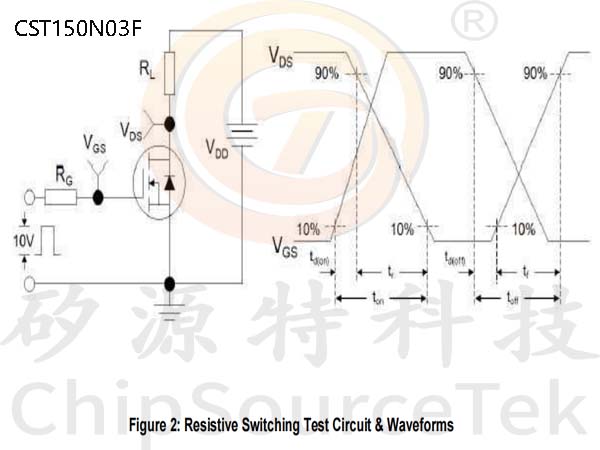

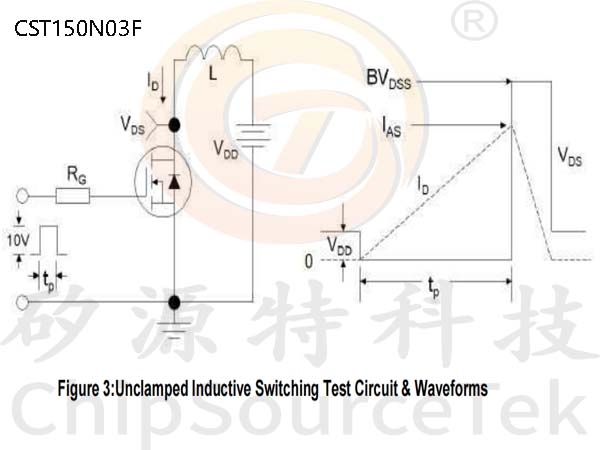

CST150N03F Test Circuit:
![](/web/userfiles/CST150N03F YYT1.jpg)
![](/web/userfiles/CST150N03F YYT2.jpg)
![](/web/userfiles/CST150N03F YYT3.jpg)
