CST80N03F Description:
CST80N03F is an N-channel fast switching Mosfet with BVDSS=30V, RDSON=3.8m Ω, and ID=80A. Provide PDFN5060-8L packaging.
The CST80N03F is the high cell density Trench MOSFET, which provide excellent RDSON and gate charge for DC/DC converters application.
The CST80N03F meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST80N03F Features:
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST80N03F Product Summary:
BVDSS
|
RDSON
|
ID
|
30V |
3.8mΩ |
80A |

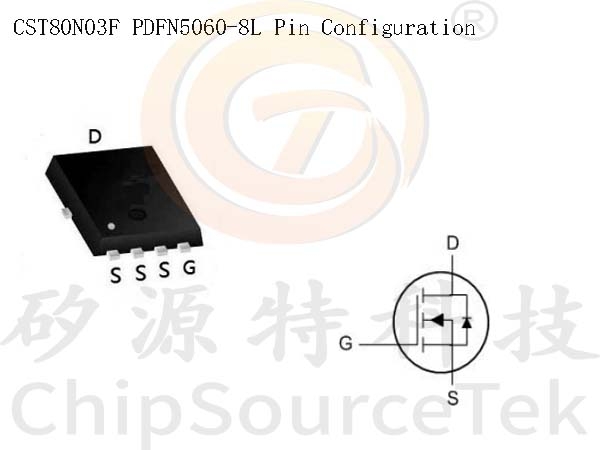

CST80N03F PDFN5060-8L Pin Configuration:
![](/web/userfiles/CST80N03F YJT.jpg)
CST80N03F Test Circuit:

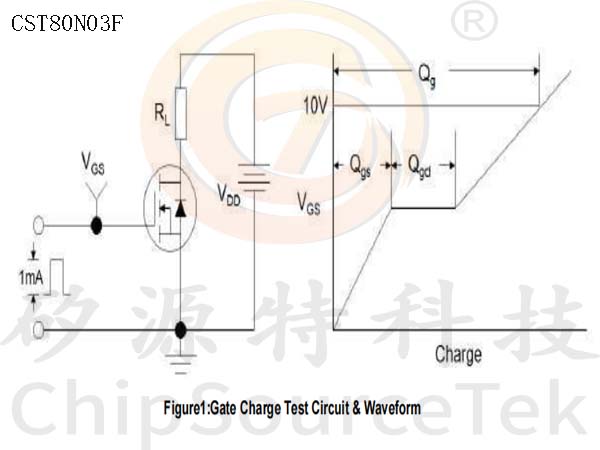

![](/web/userfiles/CST80N03F YYT1.jpg)

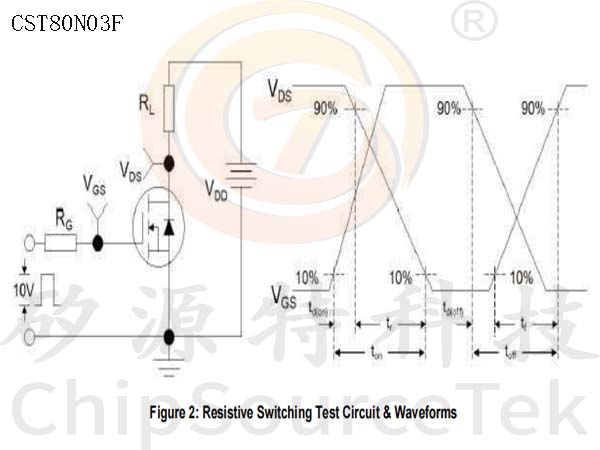

![](/web/userfiles/CST80N03F YYT2.jpg)

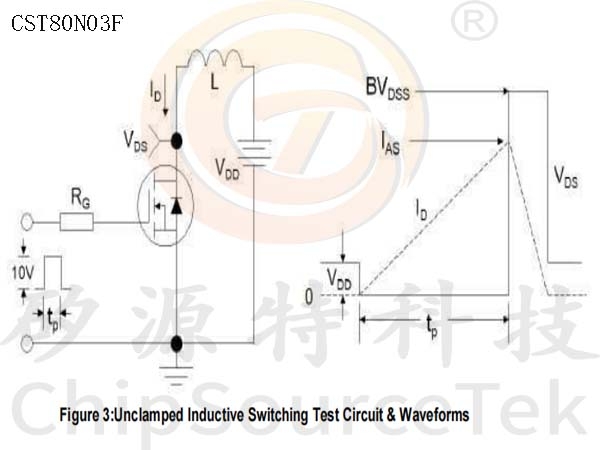

![](/web/userfiles/CST80N03F YYT3.jpg)
