MXB040N10 Description/描述：
MXB040N10 is an N-channel enhanced mode power Mosfet with VDS=100V, ID=128A, RDS (ON) (Typ.)=4.0m Ω @ VGS=10V. Provide TO-263-3L packaging.
The MXB040N10 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 10V. This device is suitable for use as a wide variety of applications.
MXB040N10 Features/特征:
VDS=100V, ID=128A
RDS(ON)(Typ.)=4.0mΩ @ VGS=10V
High Power and current handing capability
Lead free product is acquired
MXB040N10 Application/应用：
Uninterruptible power supply
Hard switched and high frequency circuits

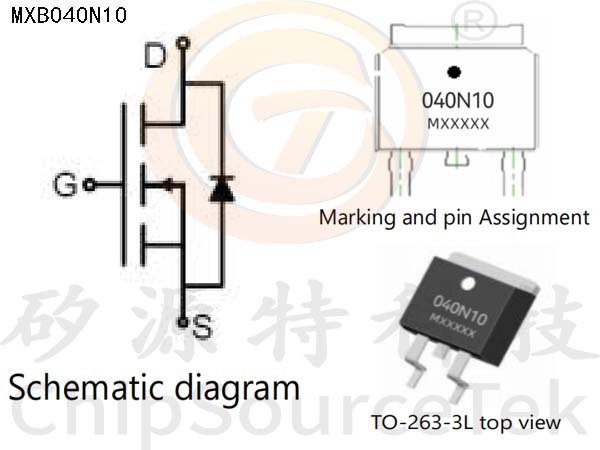

MXB040N10 Pinout/引脚：
MXB040N10 Ordering Information/订购信息：
|
Part Number
|
StorageTemperature
|
Package
|
Devices Per Reel
|
|
MXB040N10 |
-55°C to 175°C |
TO-263 |
800 |
